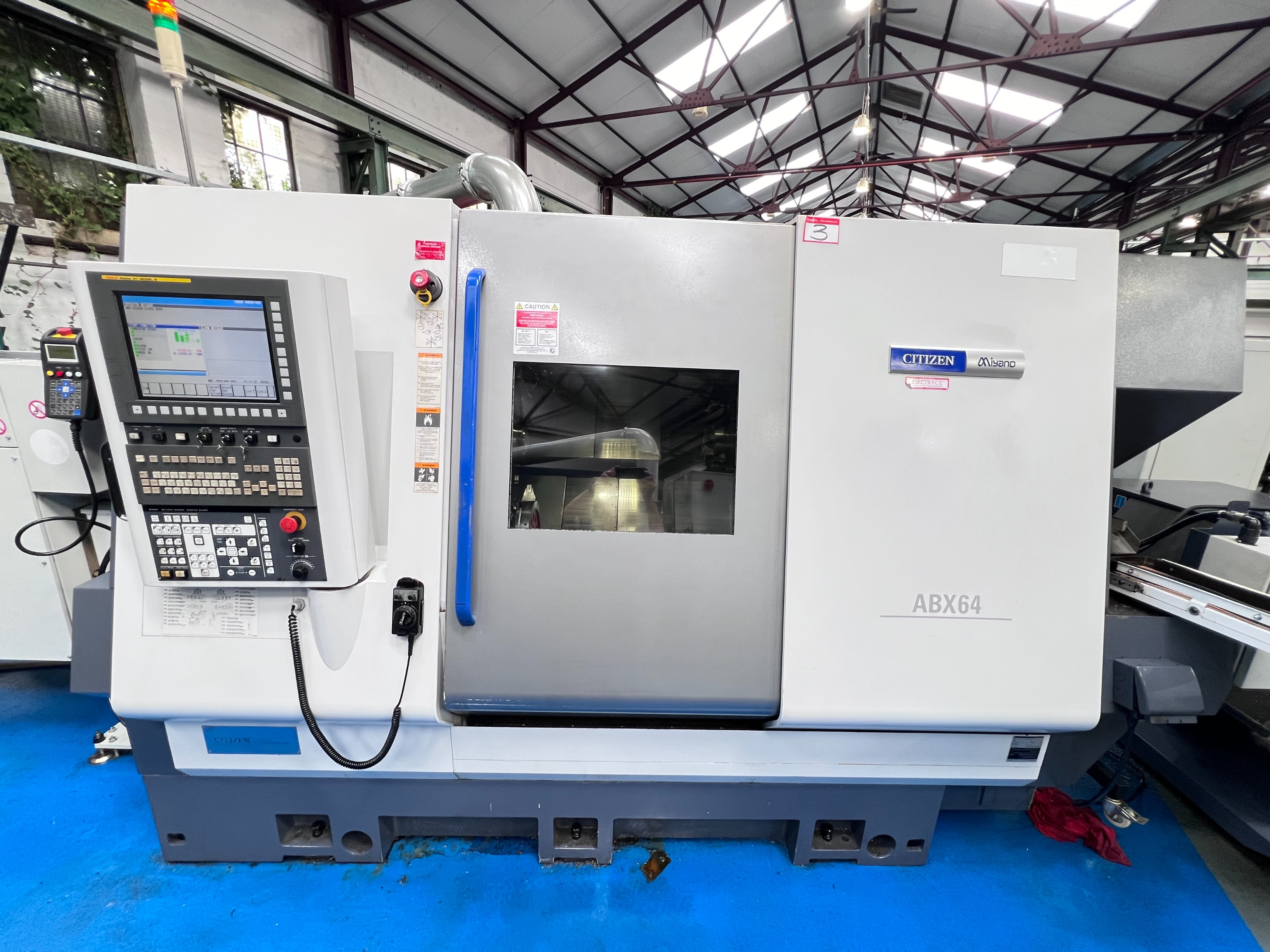

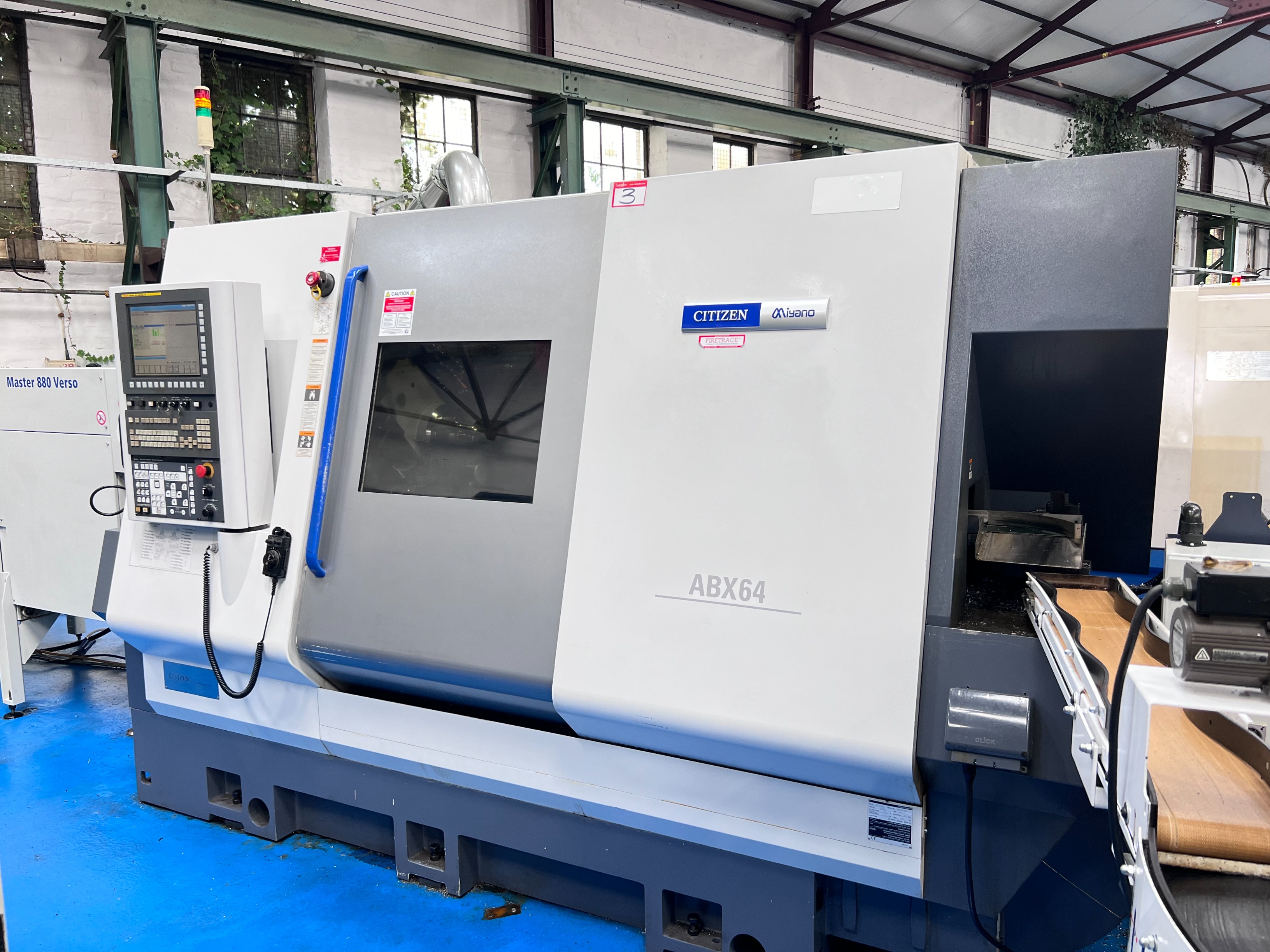

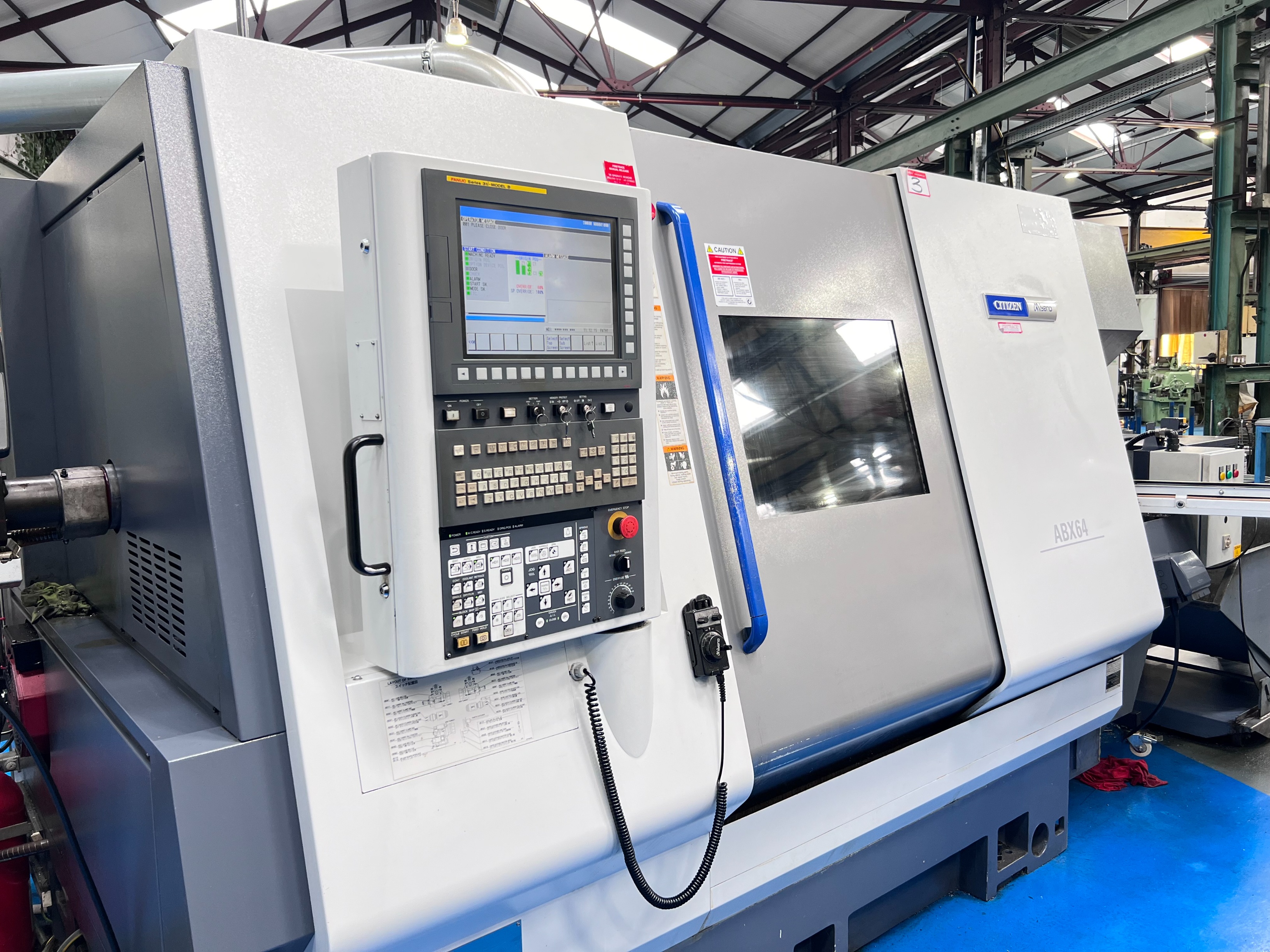

Los 3: Citizen Miyano ABX64THY2 Twin Spindle Triple Turret CNC Lathe (2016)

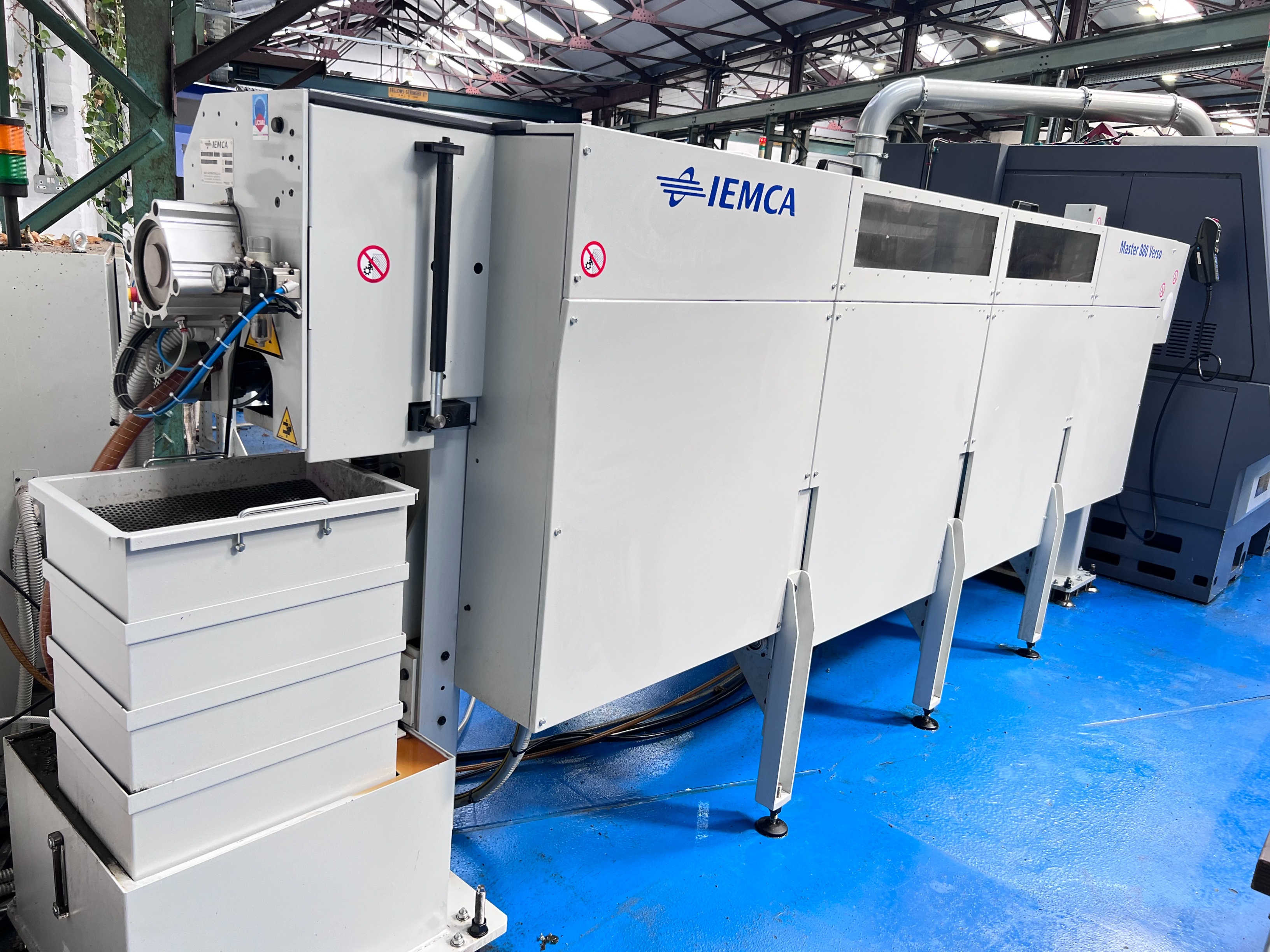

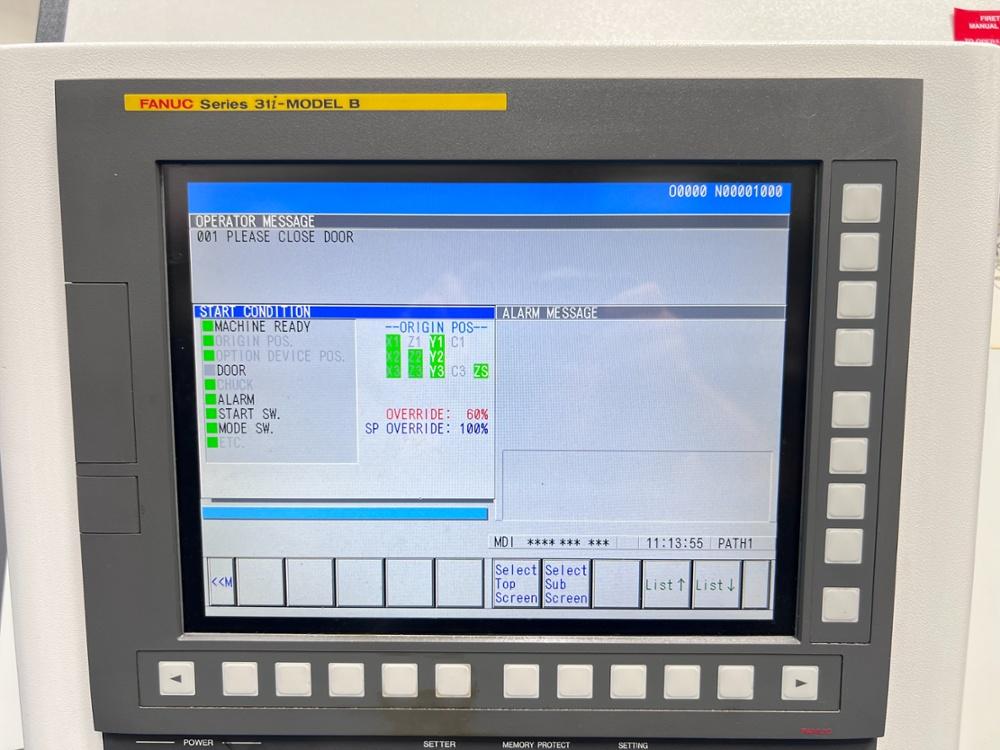

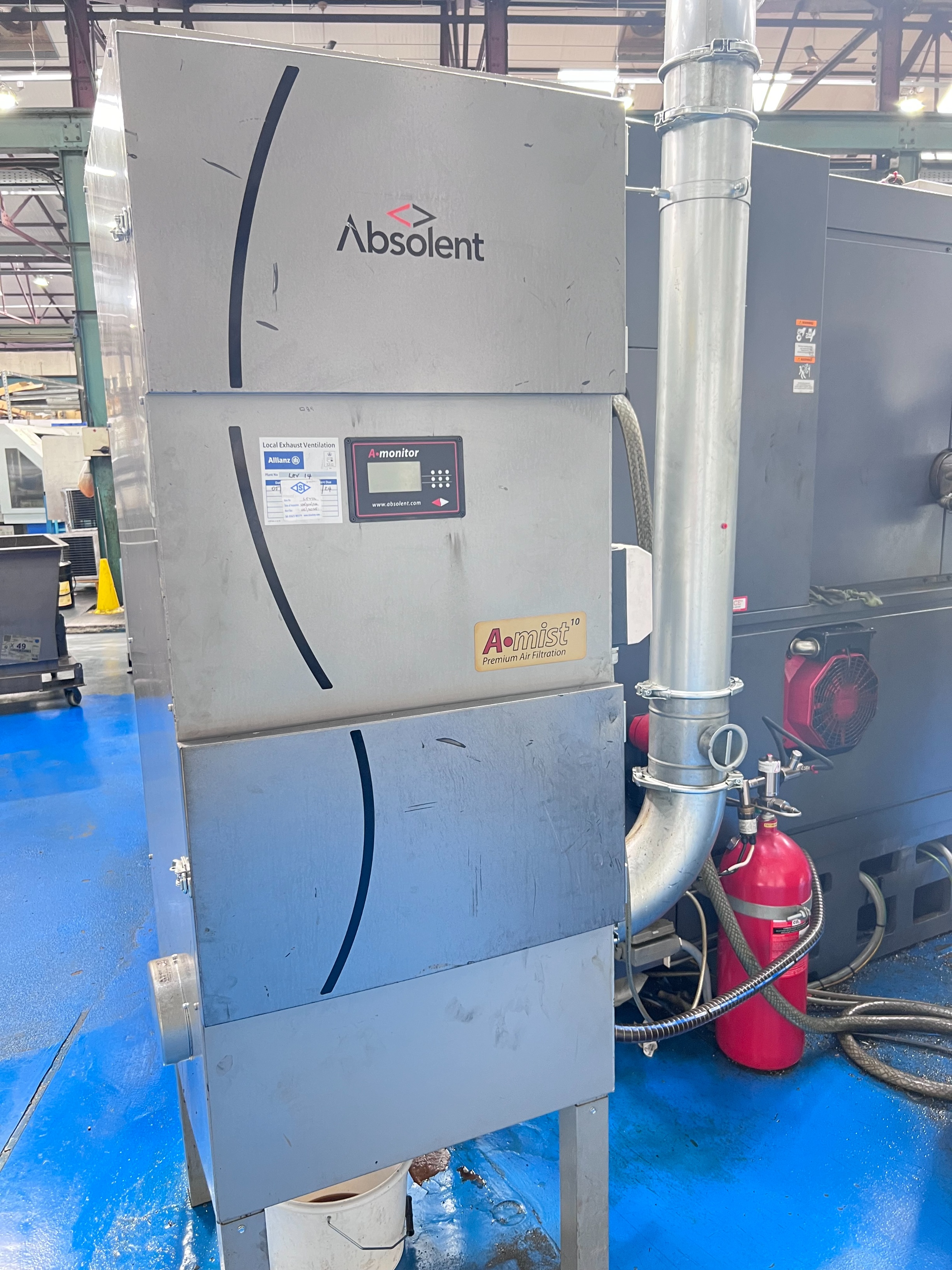

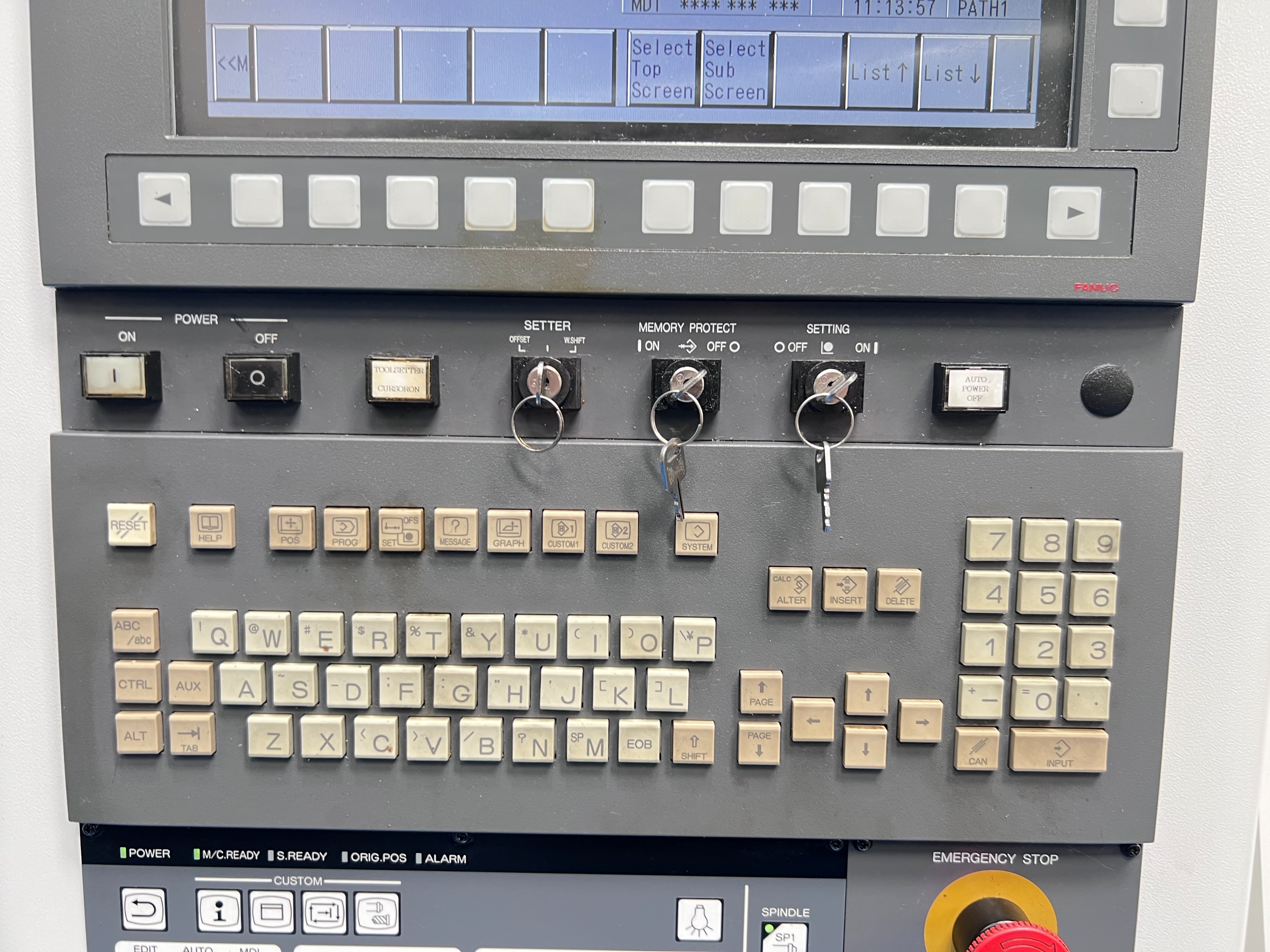

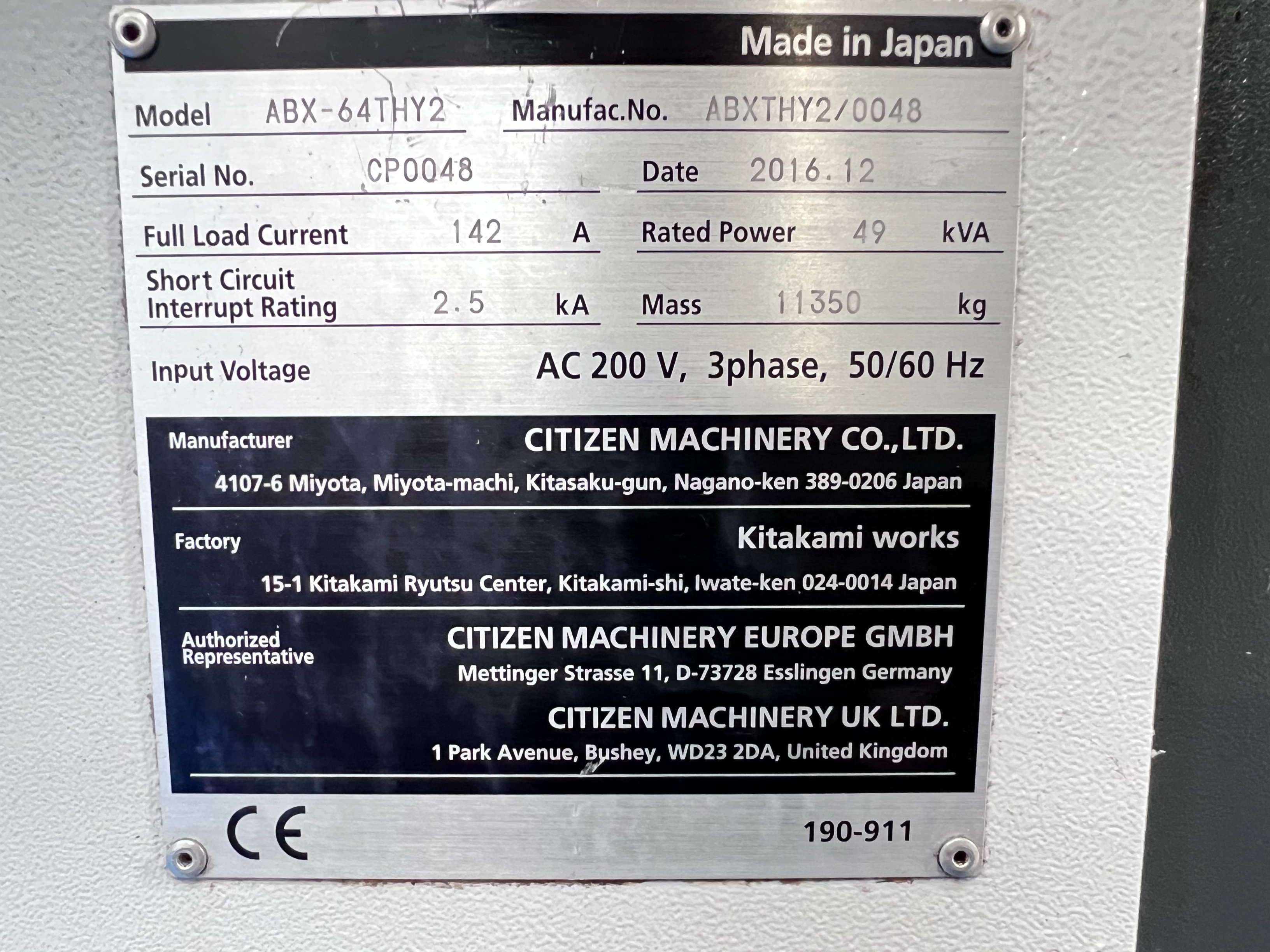

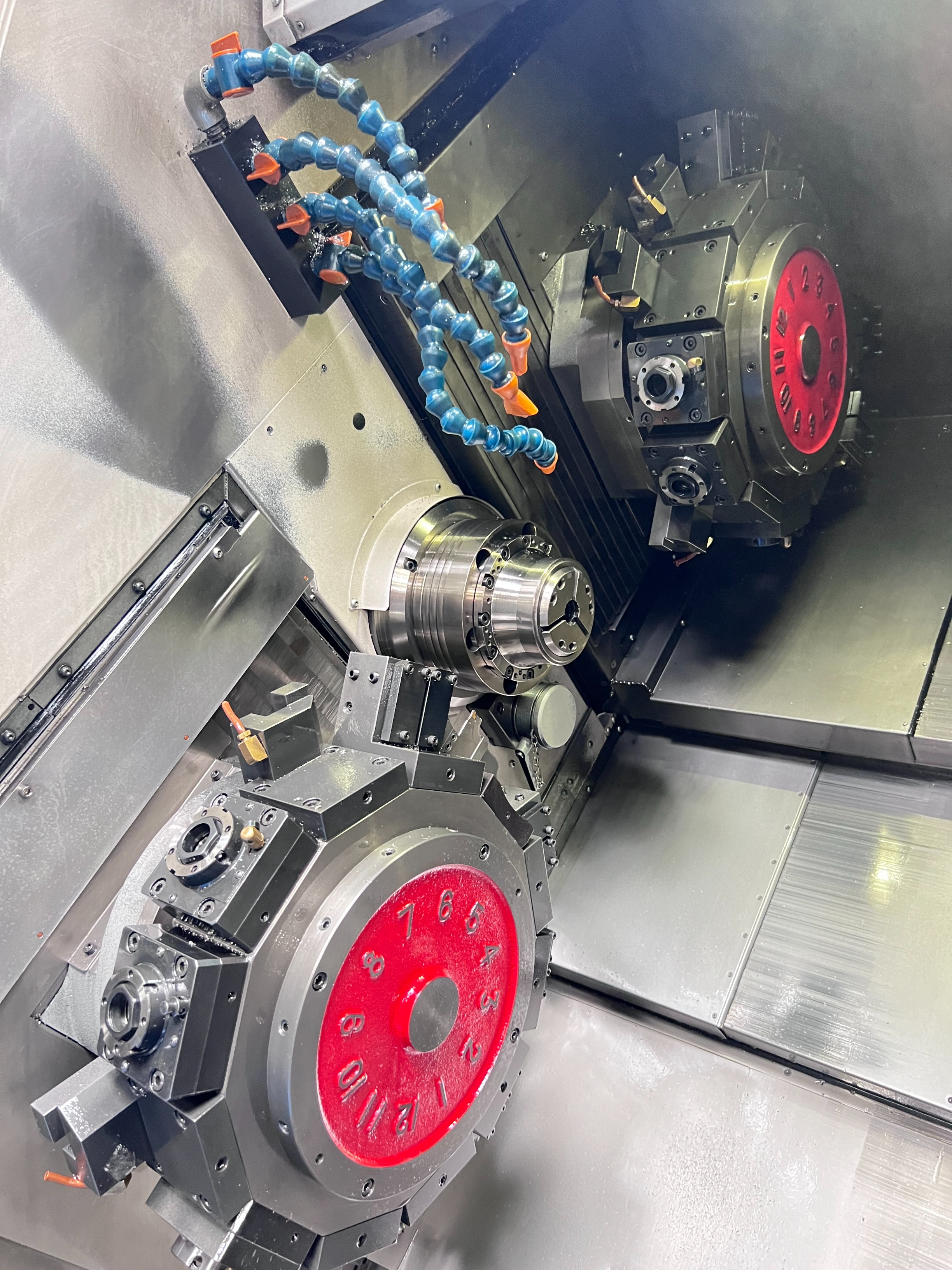

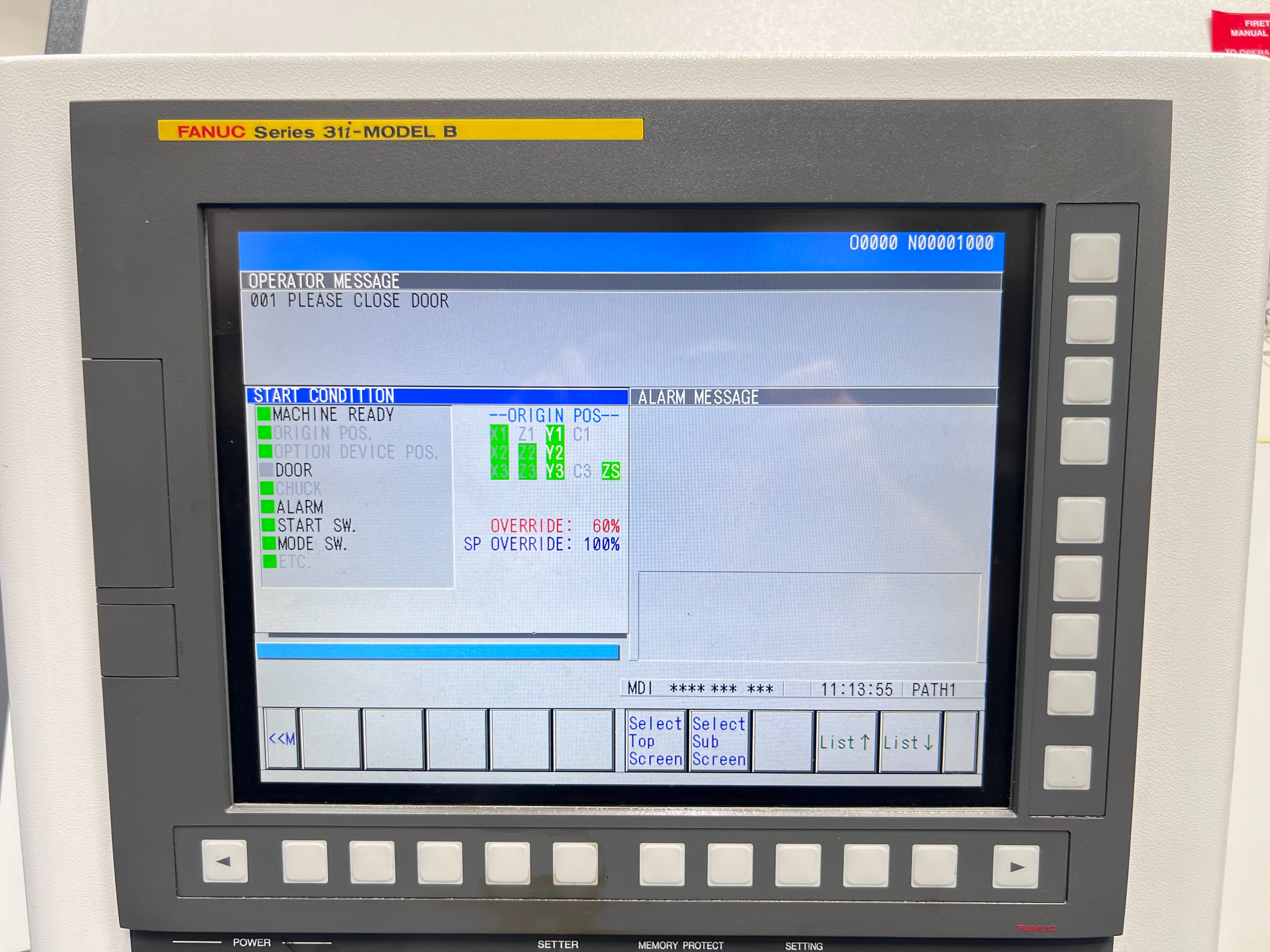

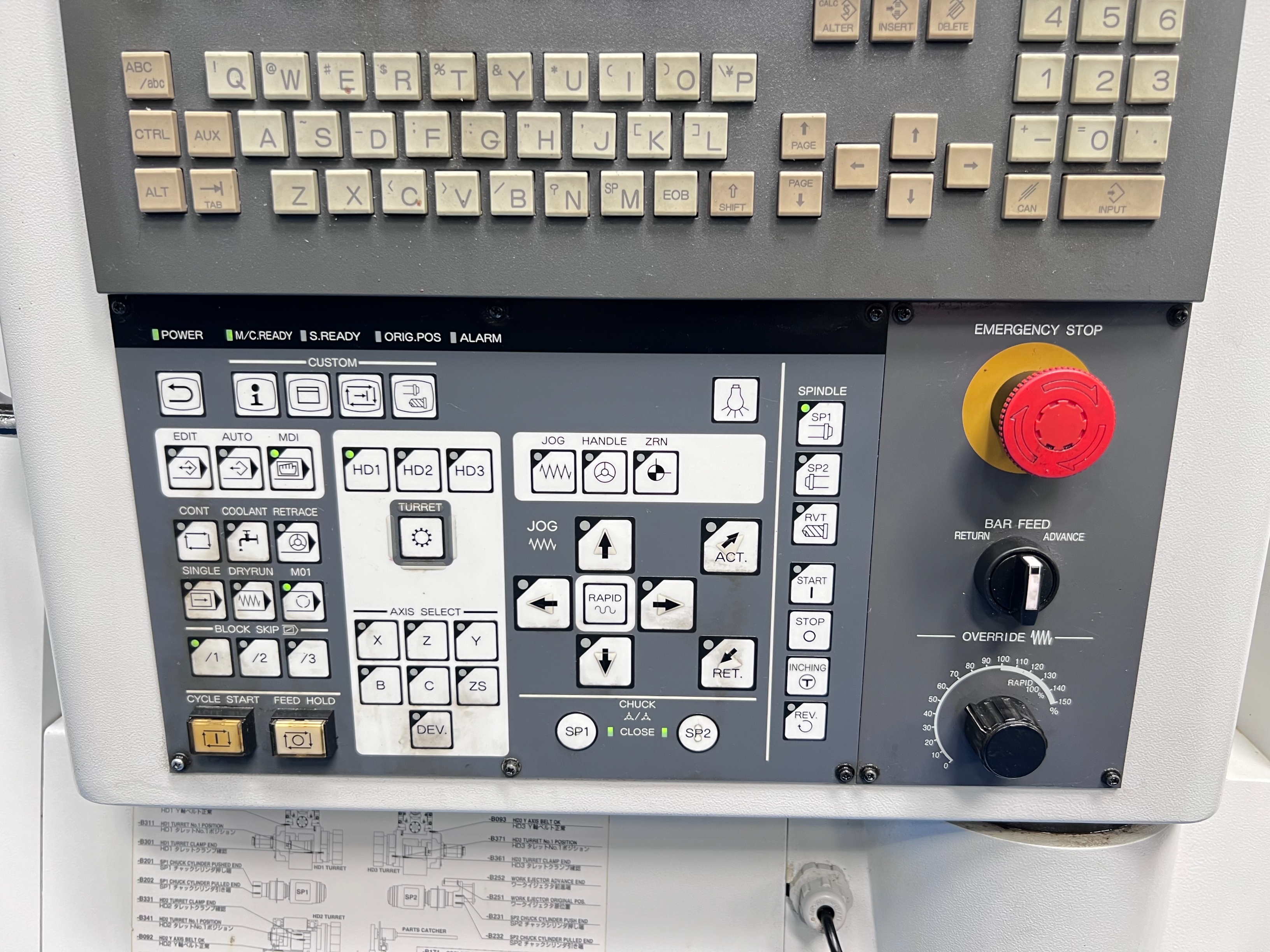

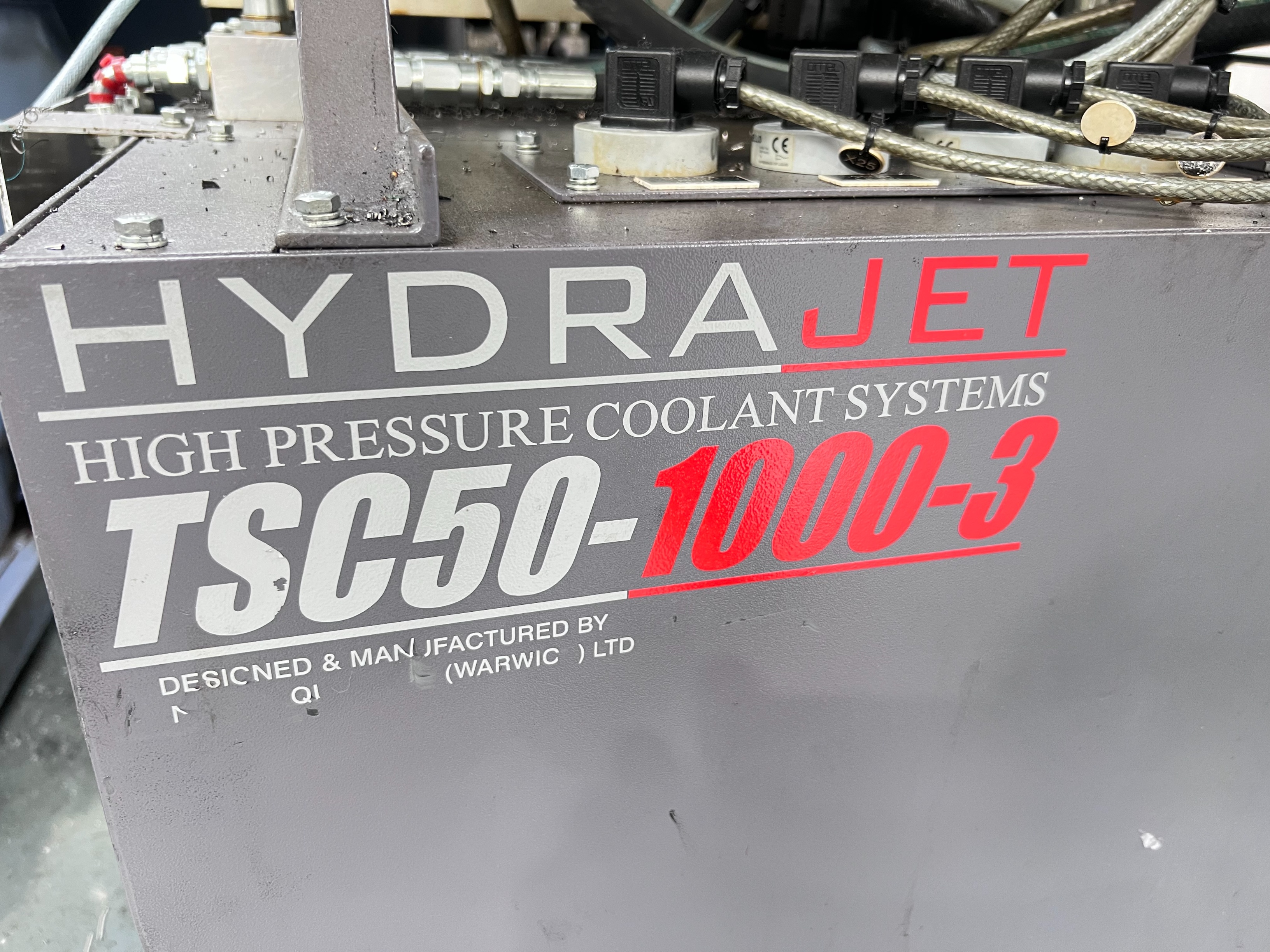

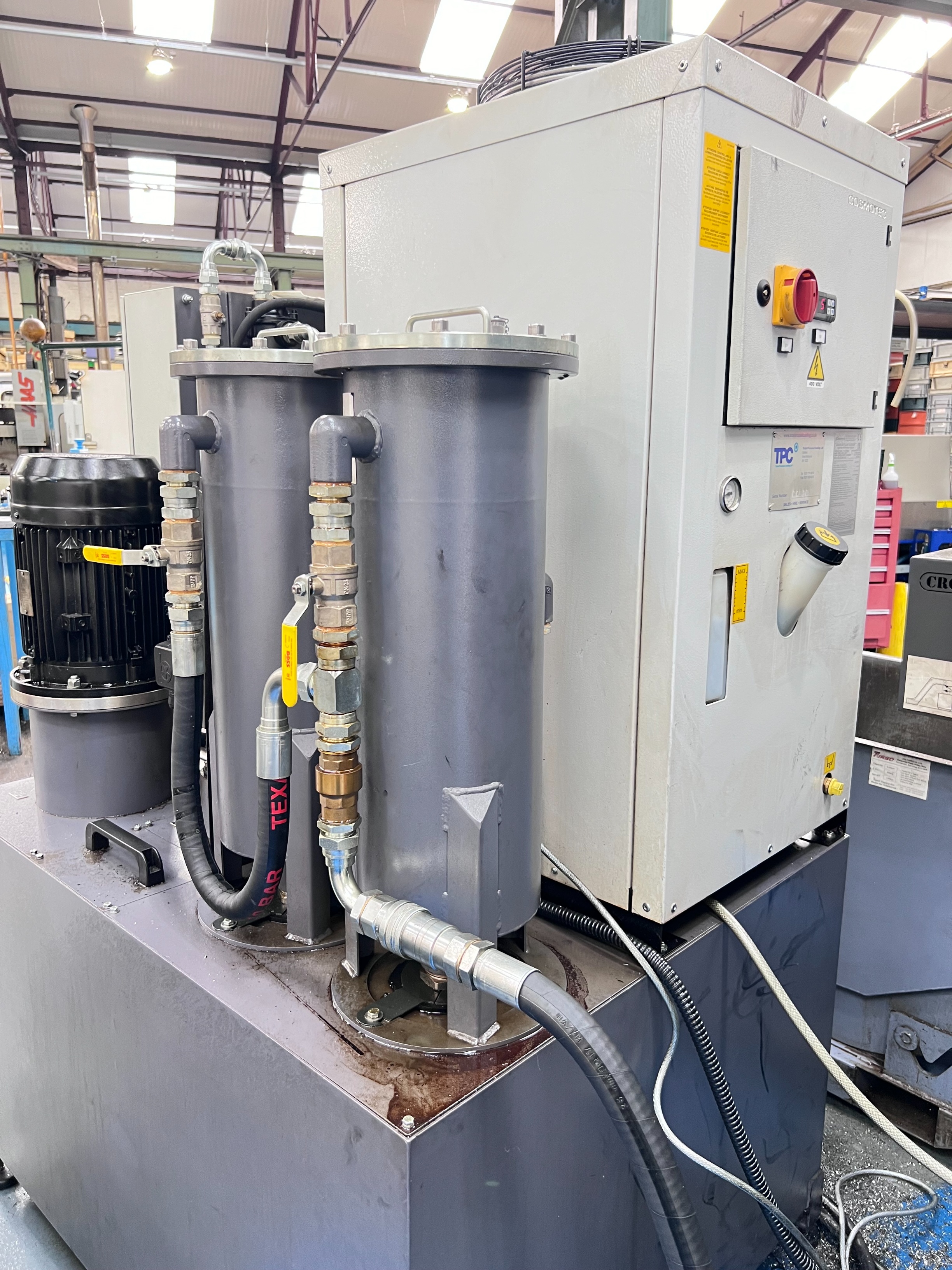

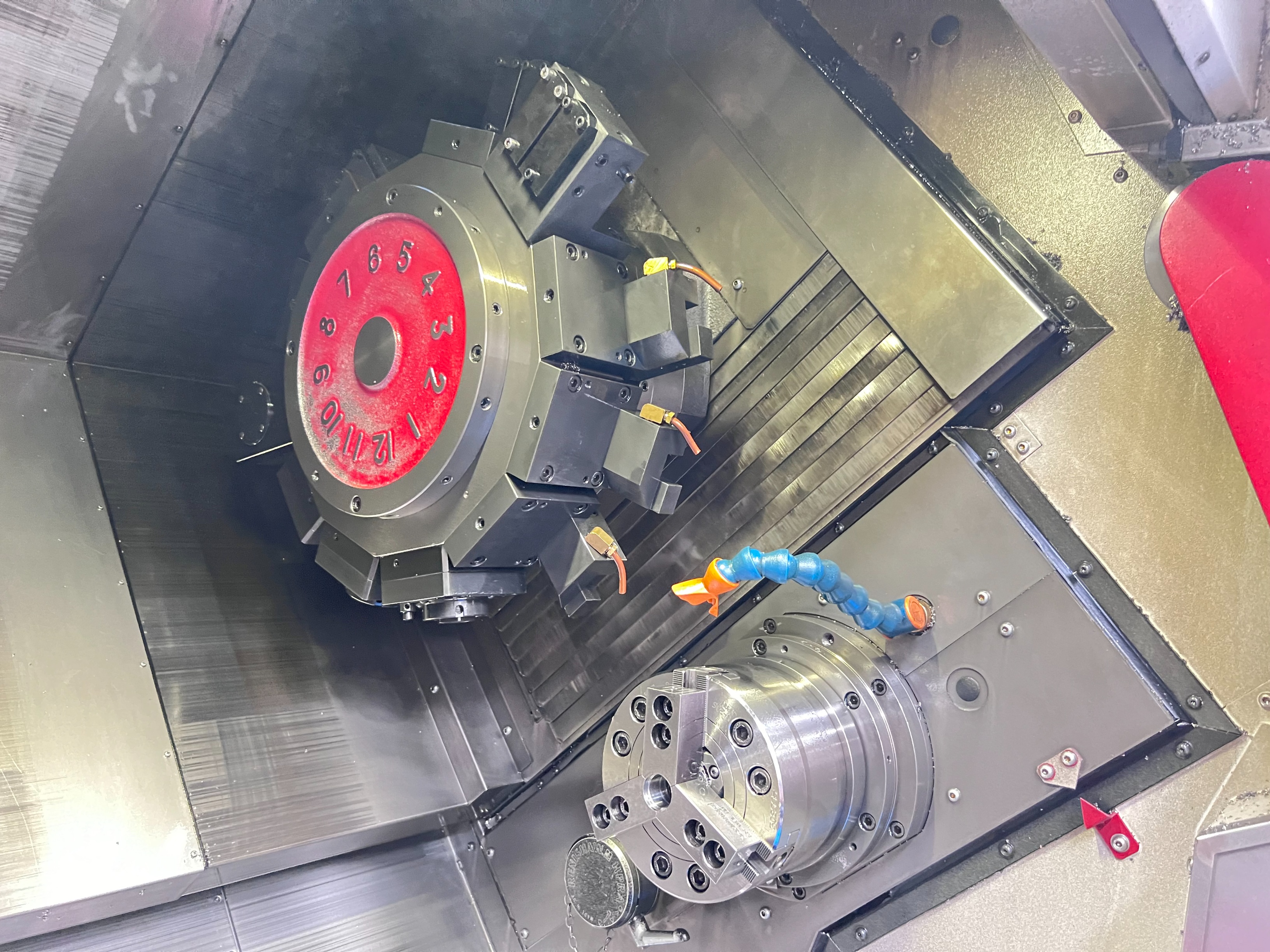

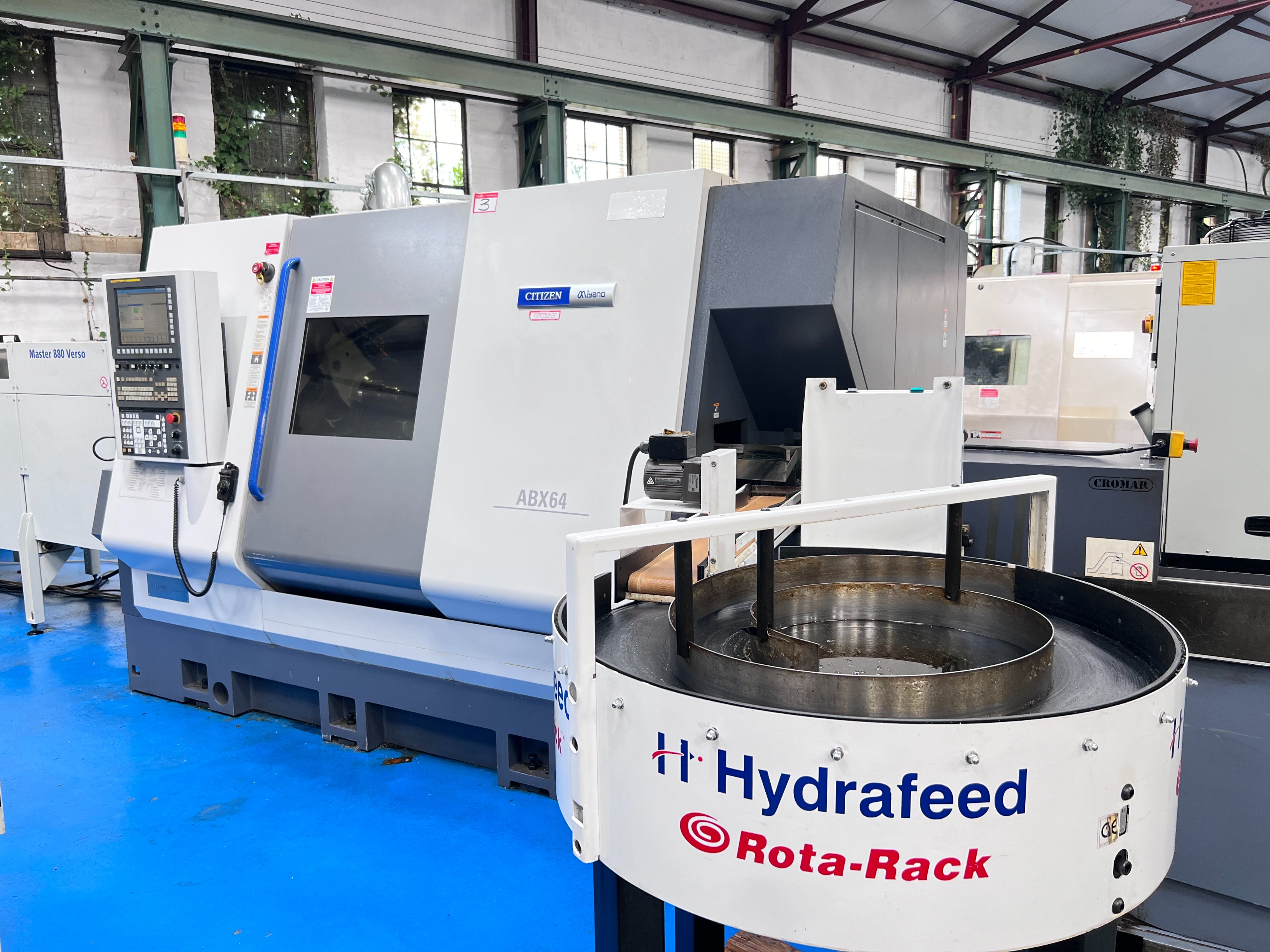

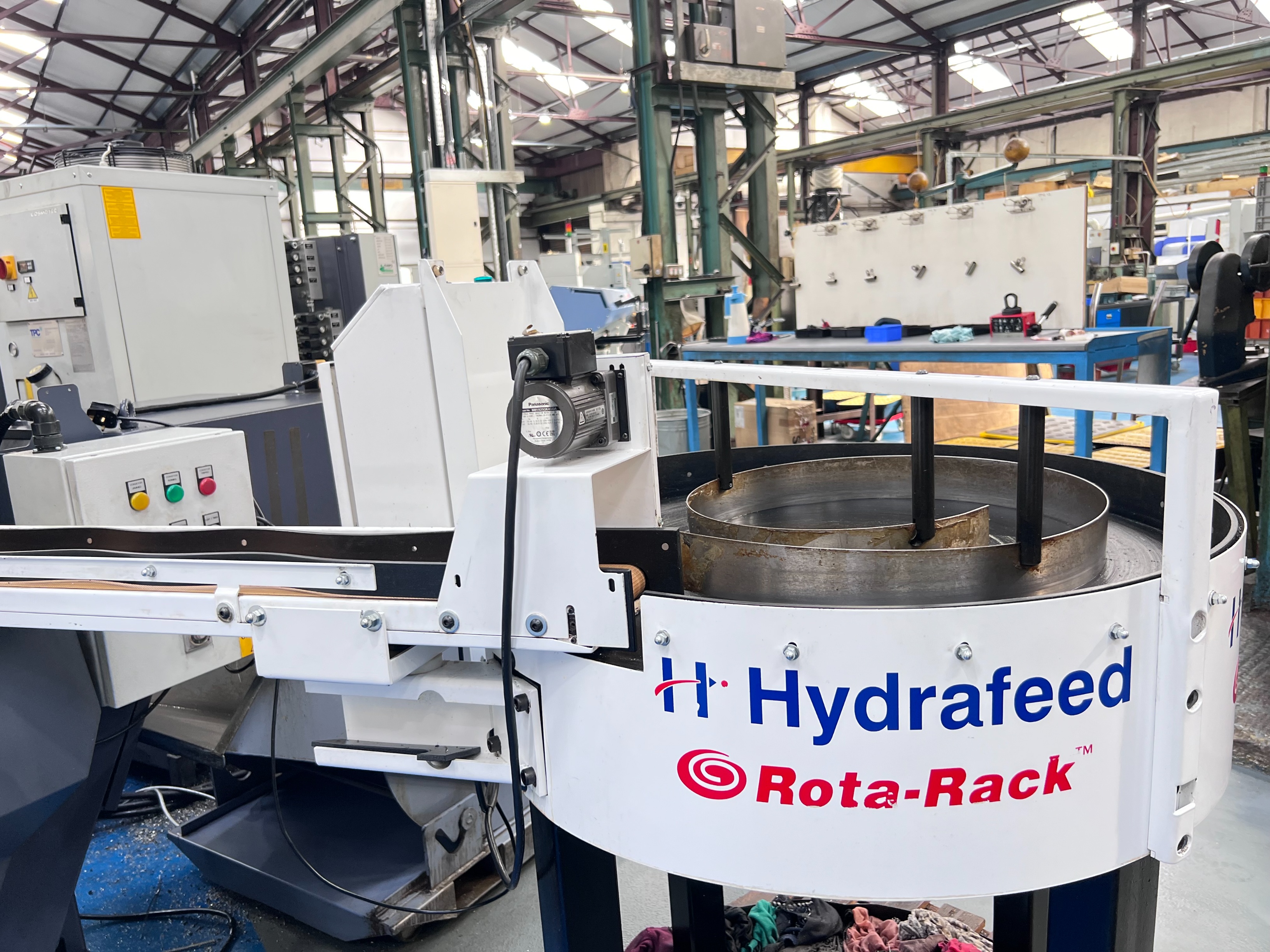

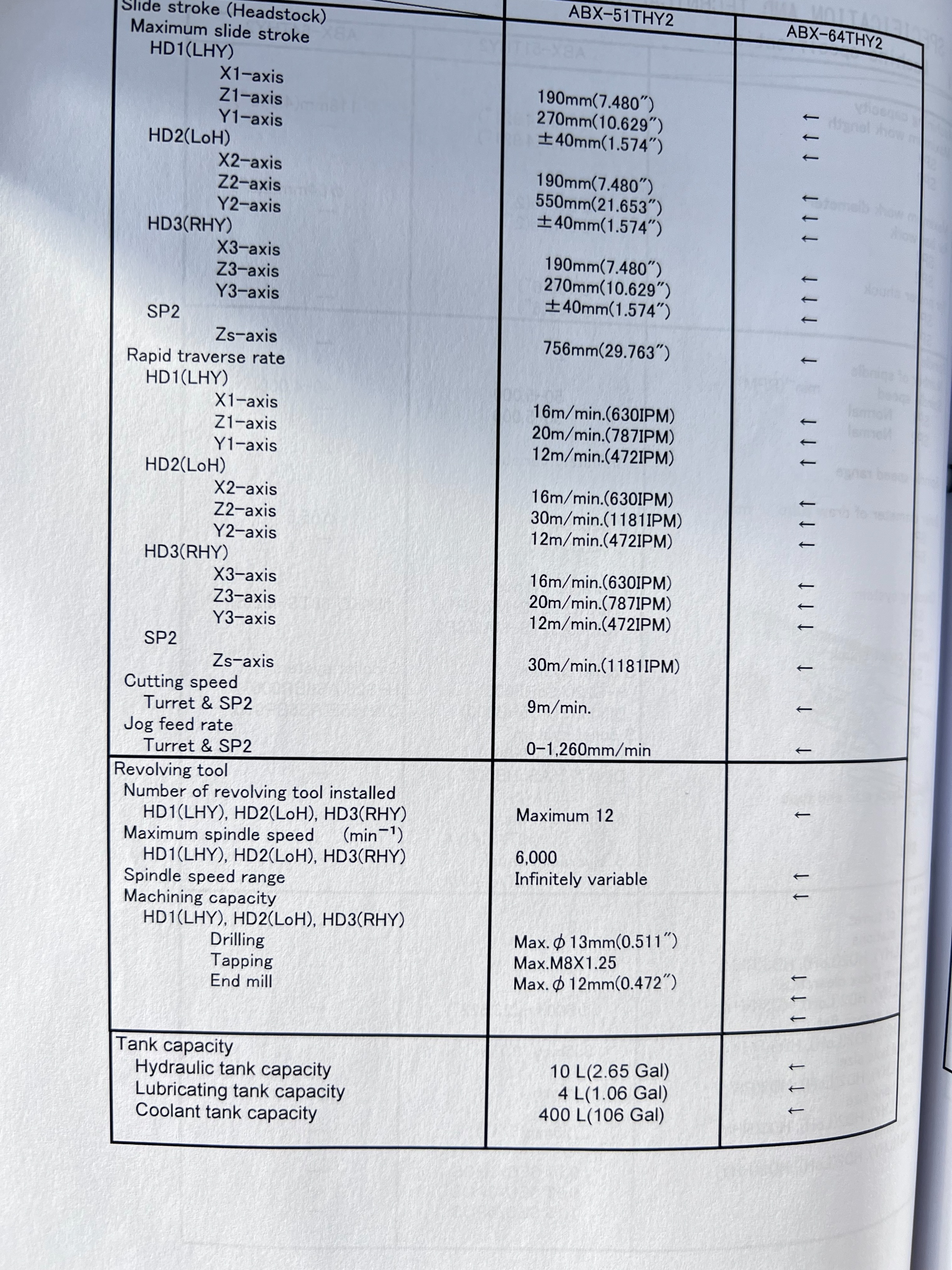

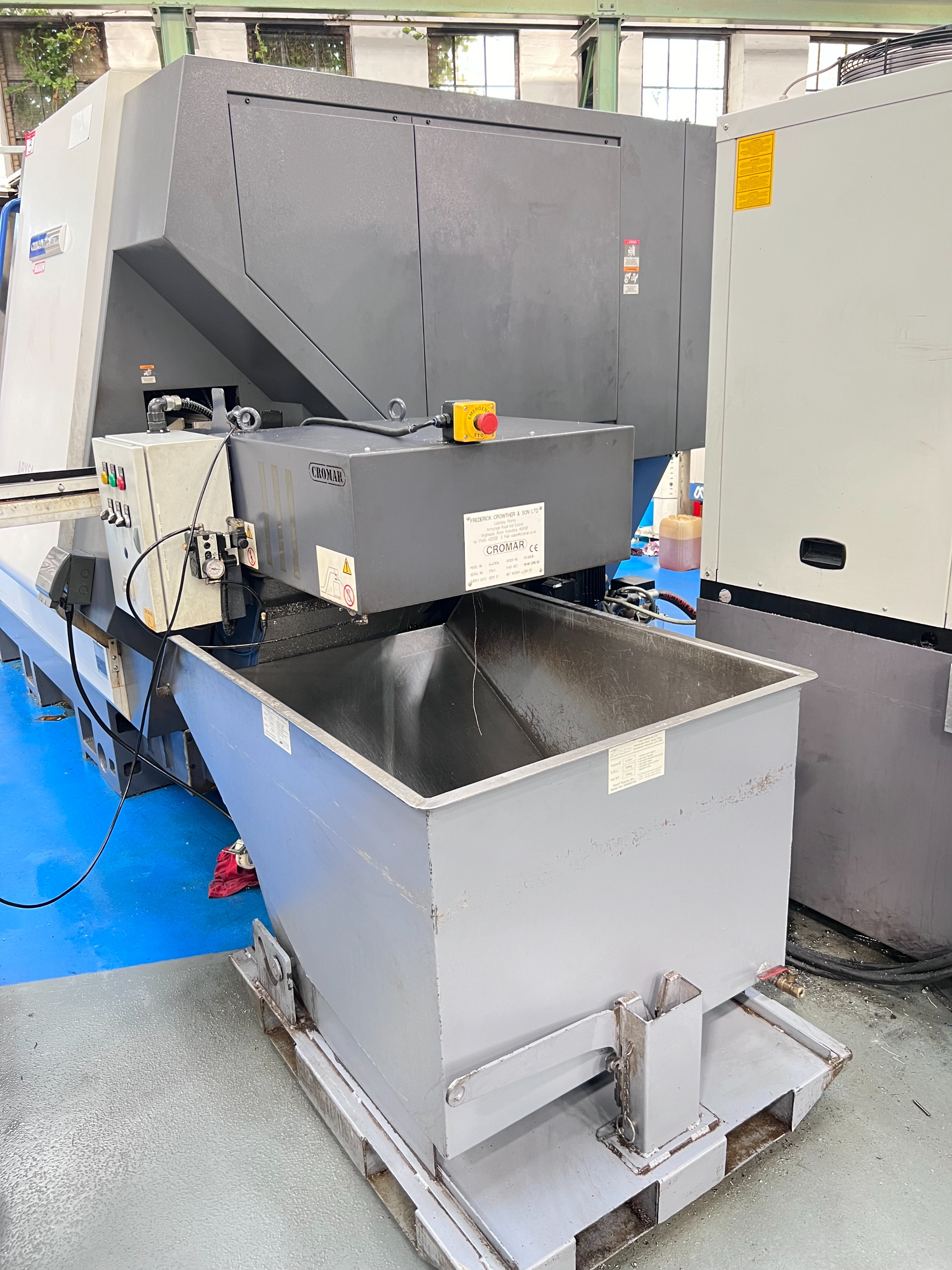

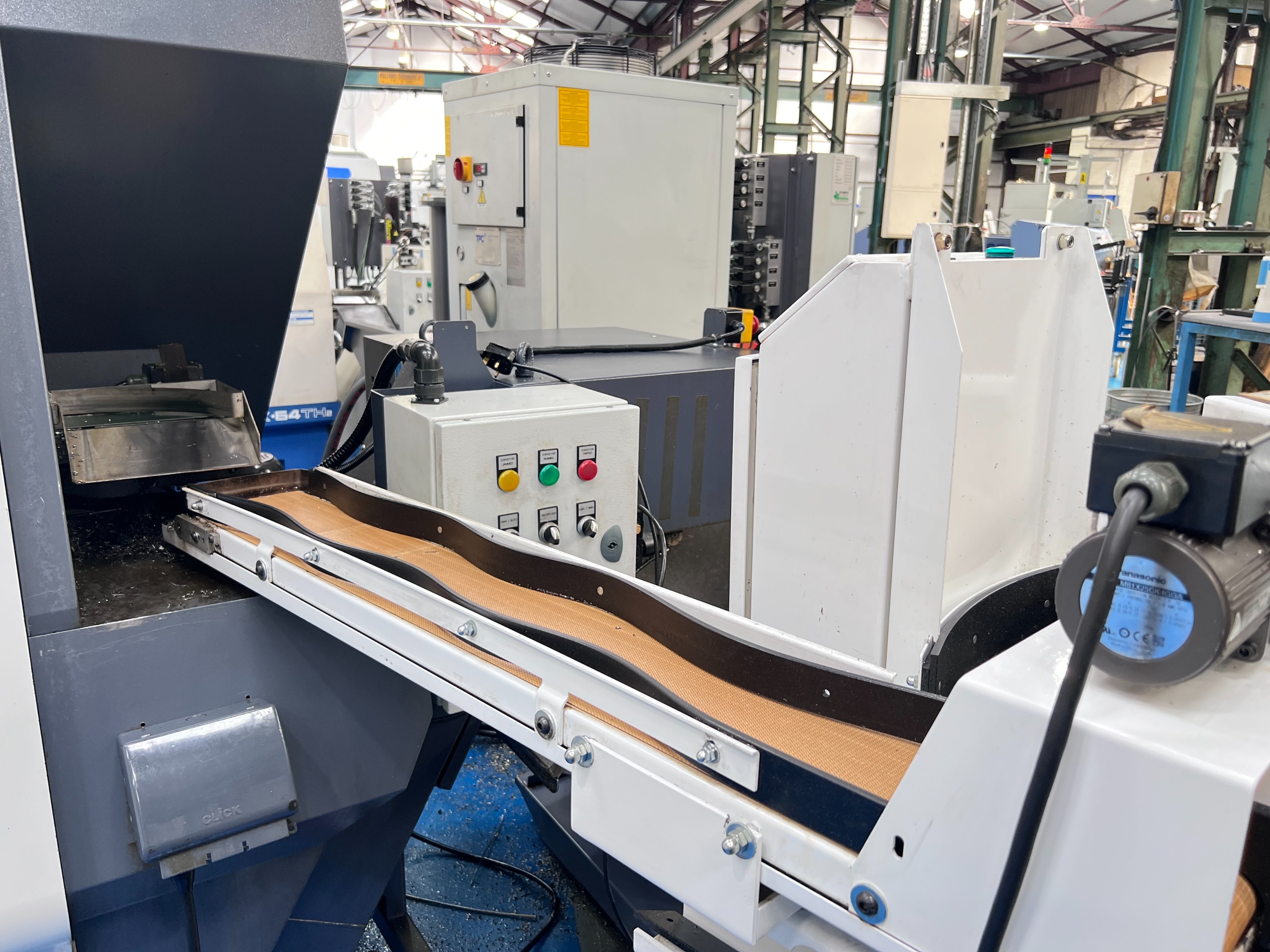

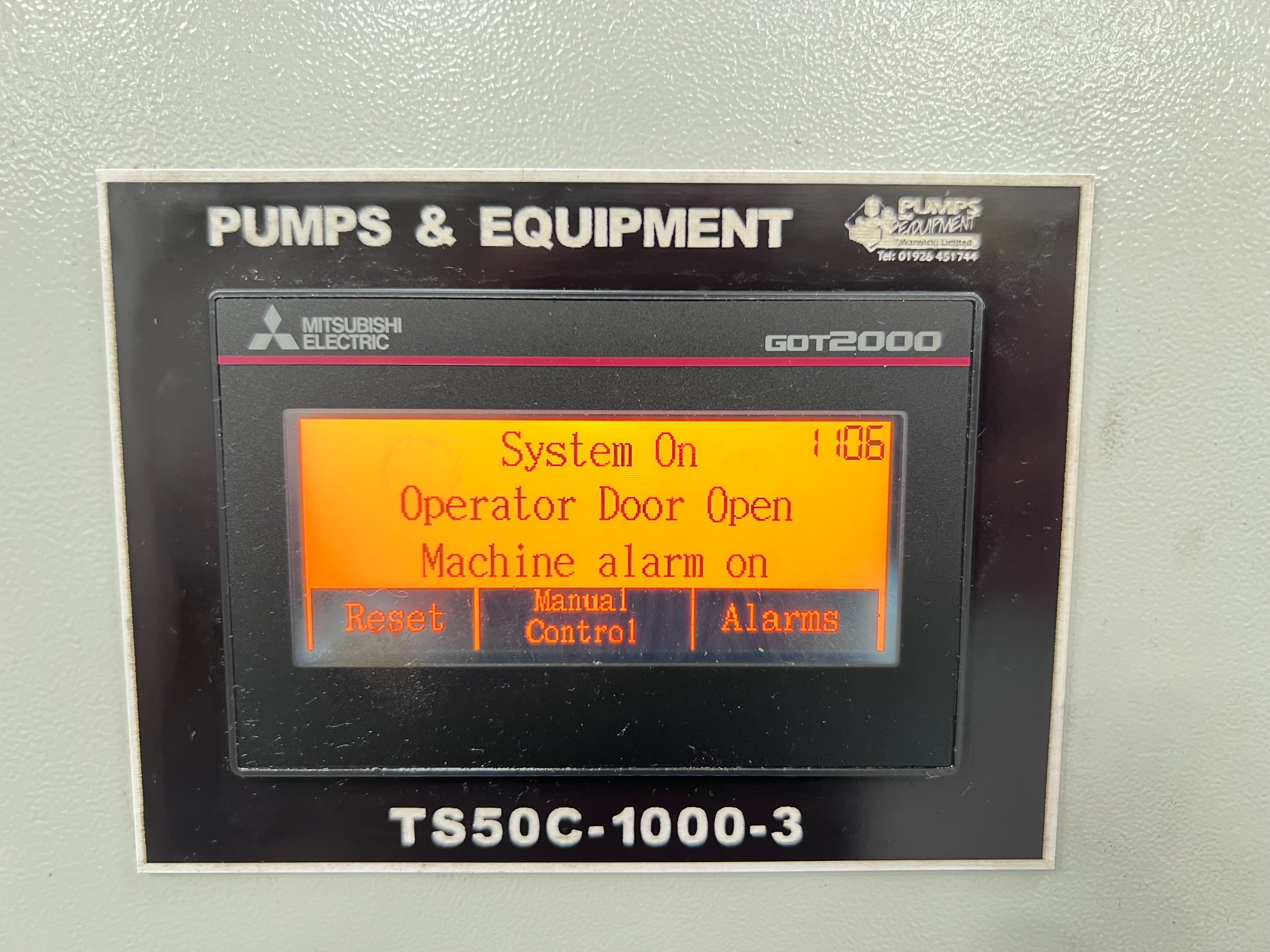

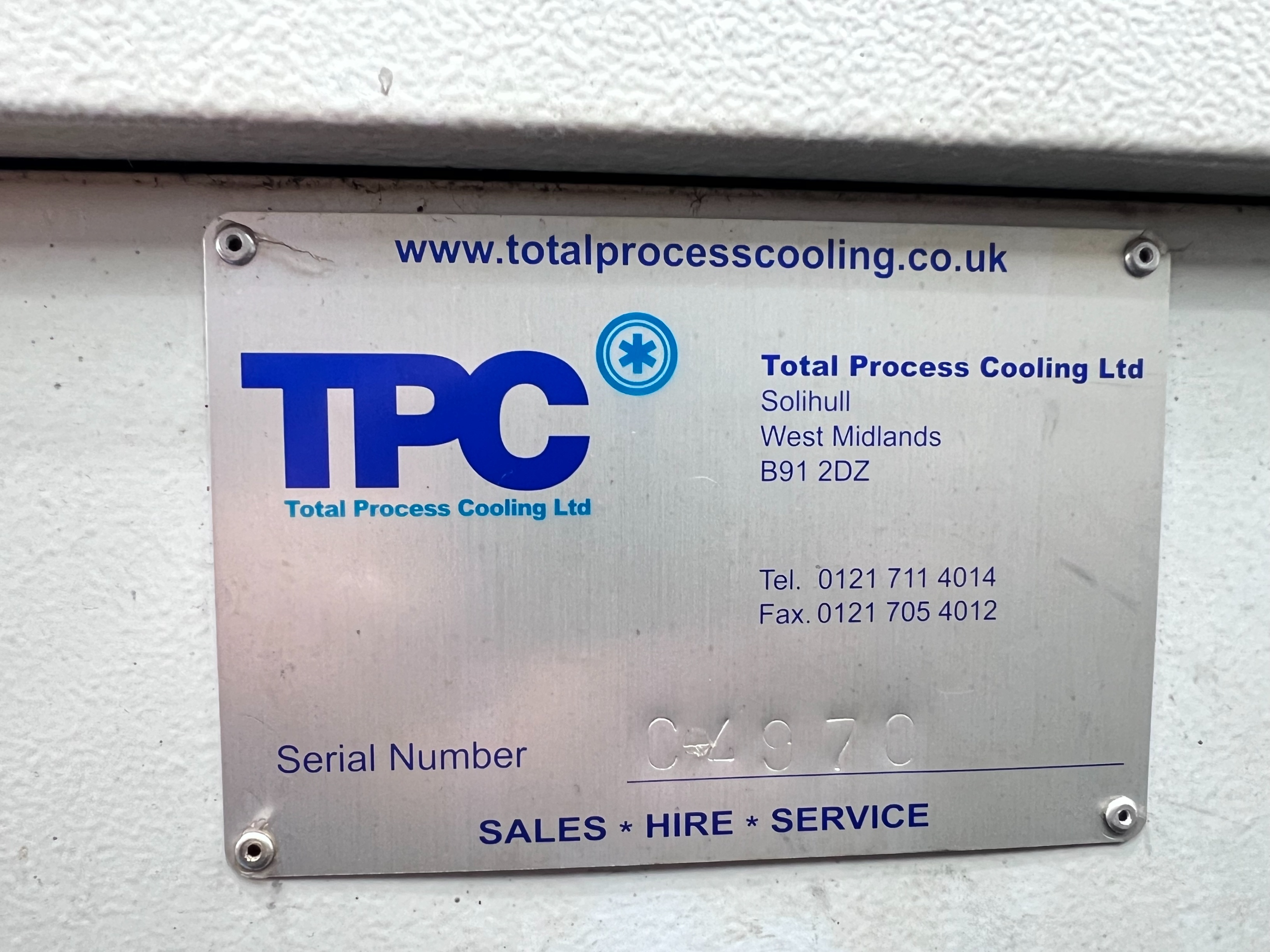

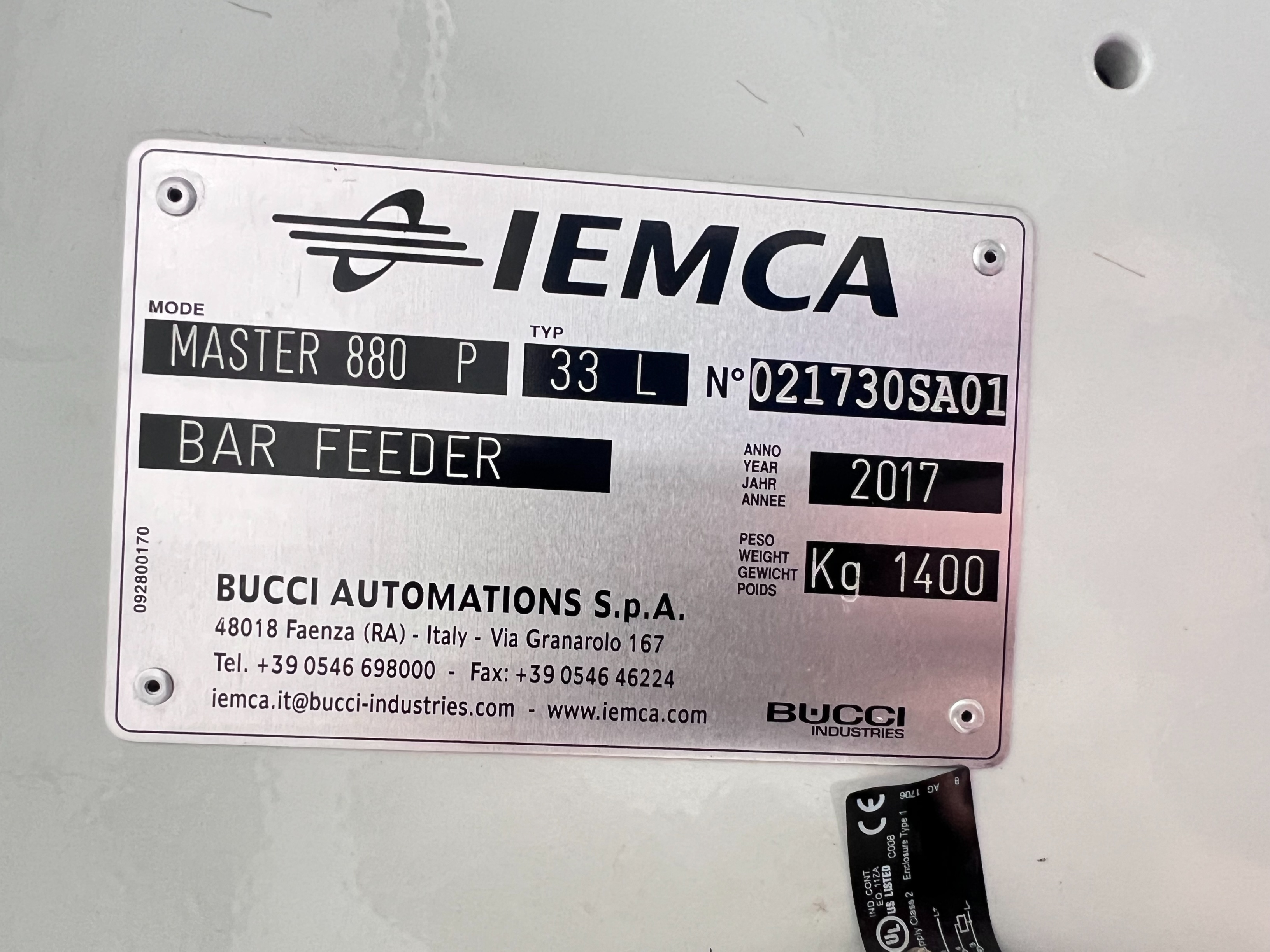

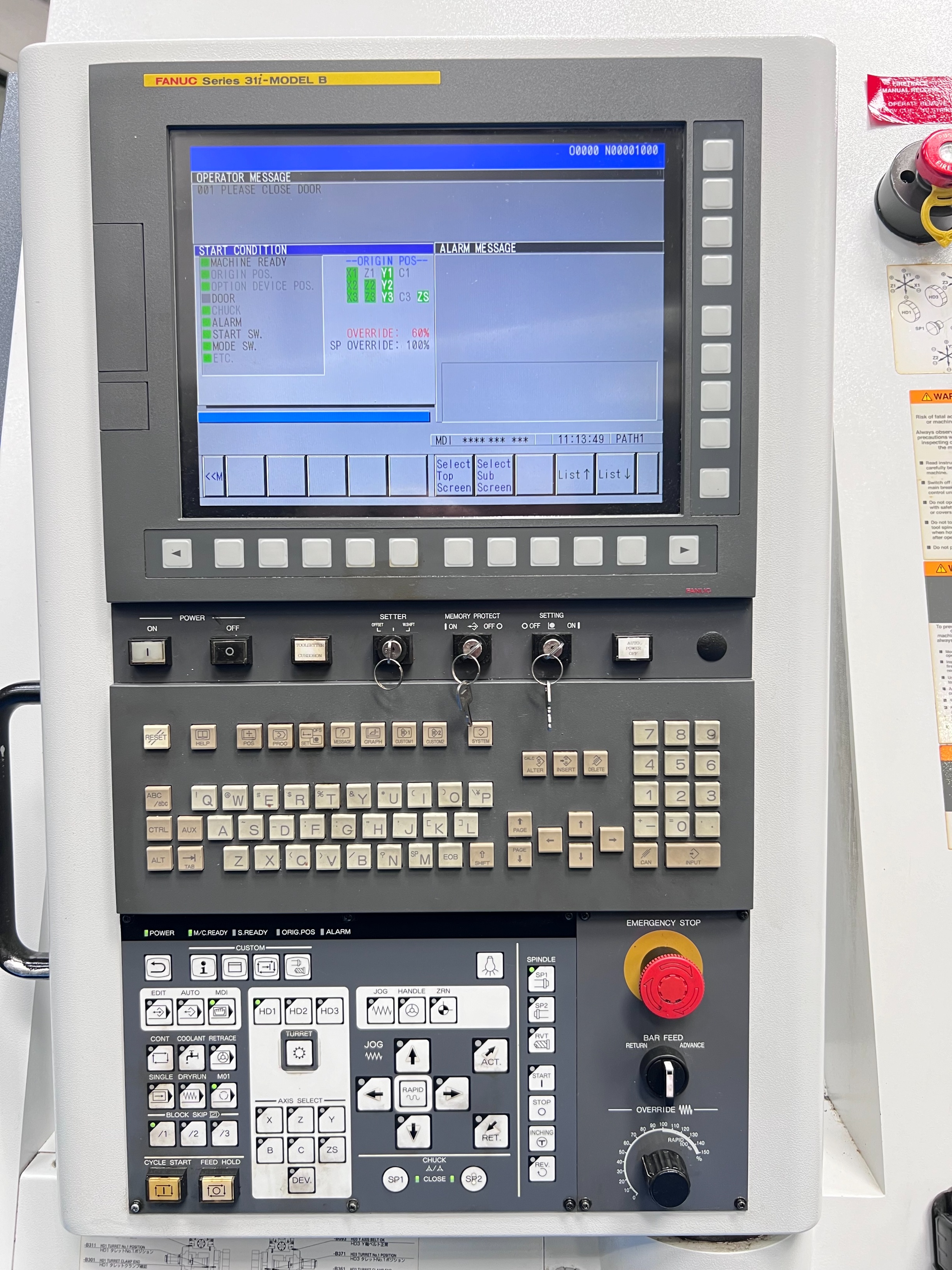

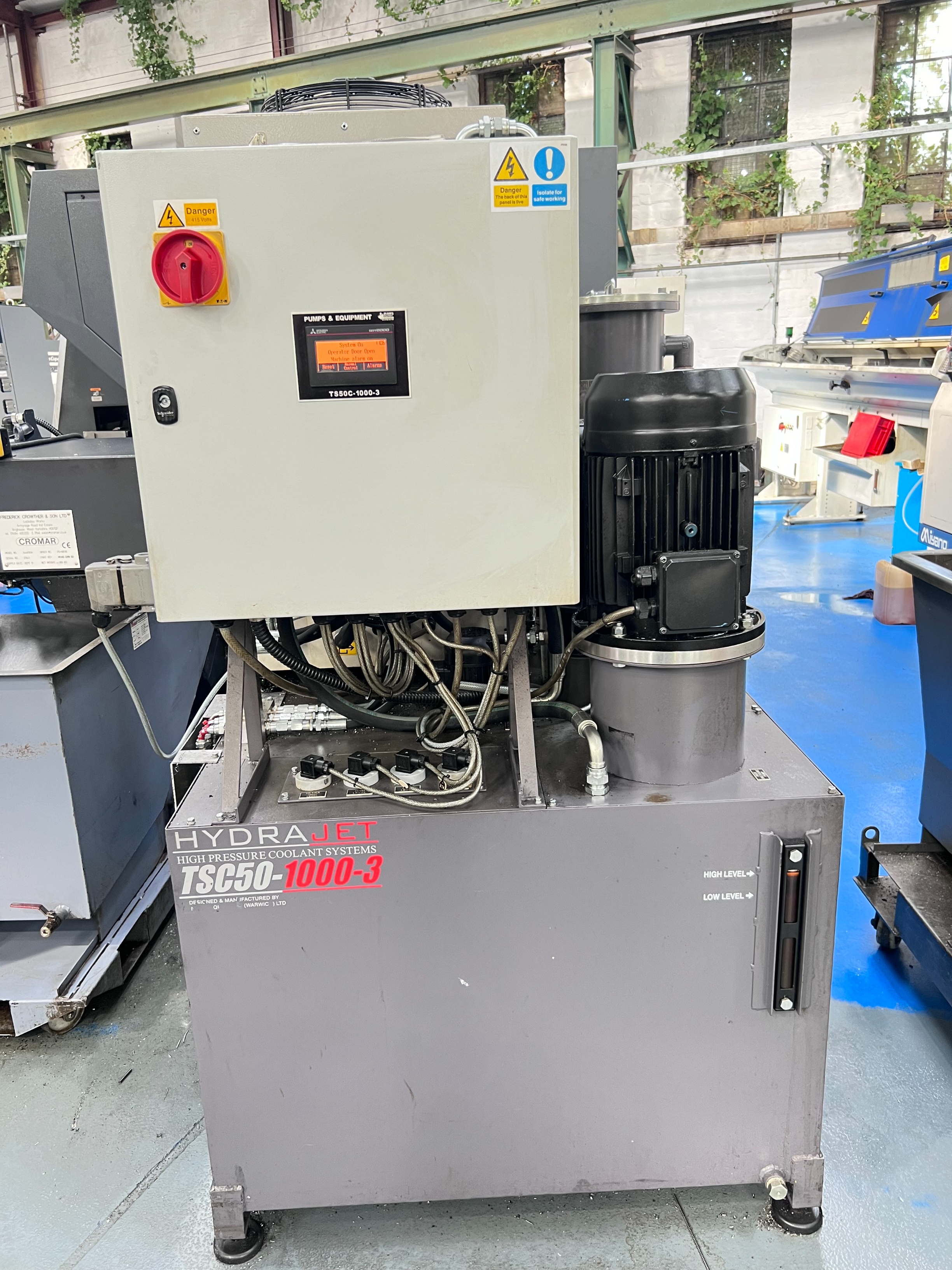

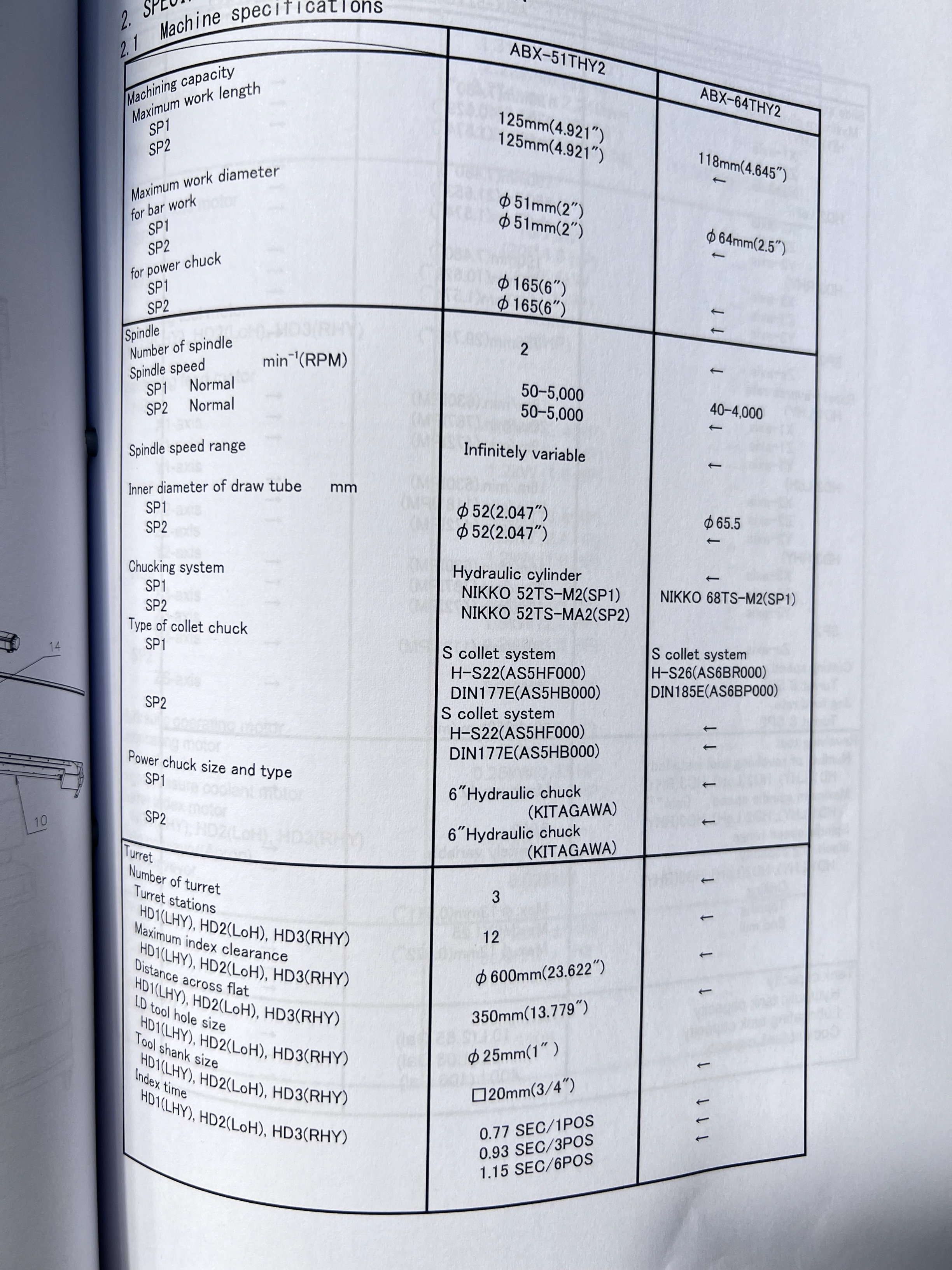

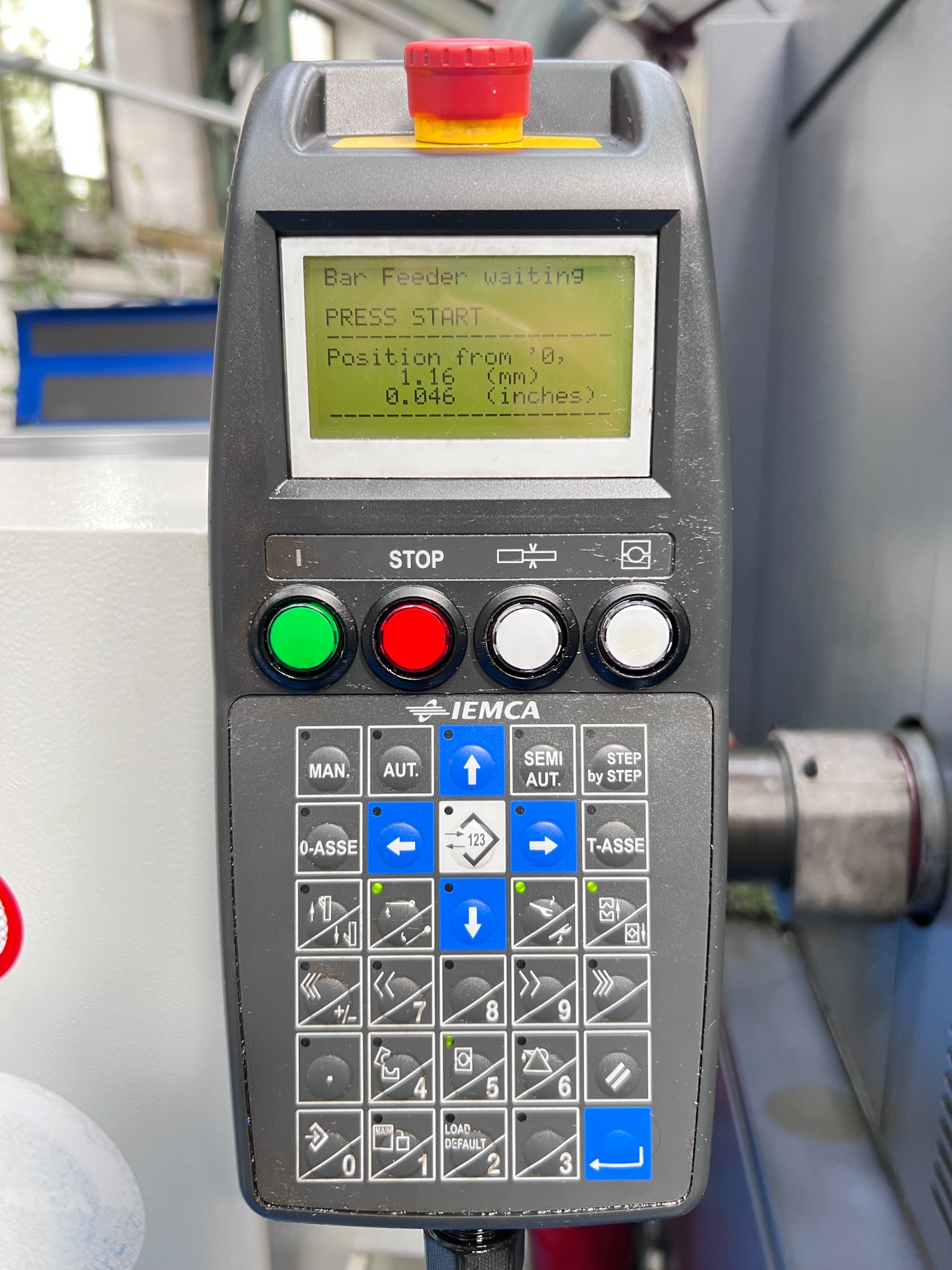

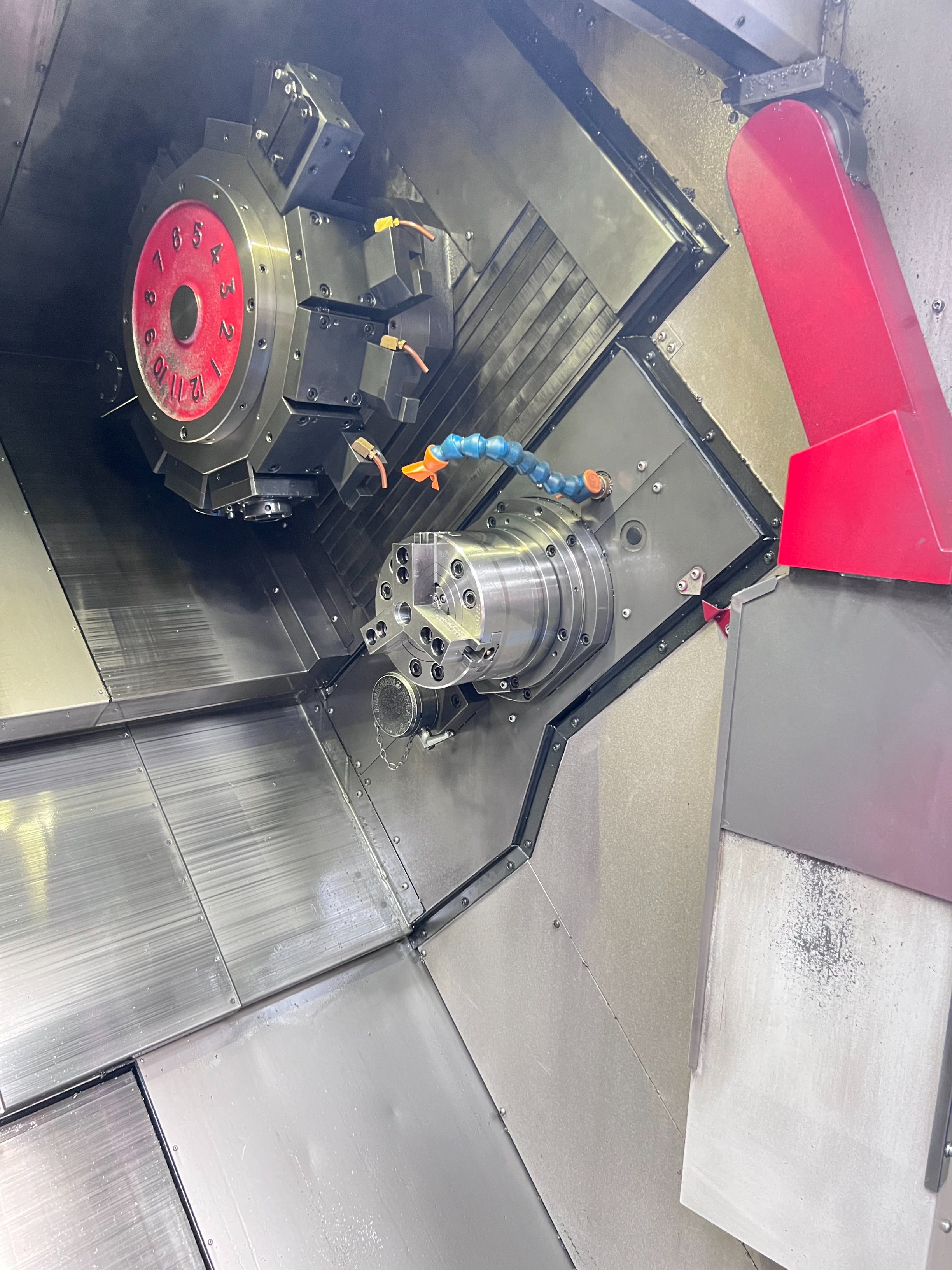

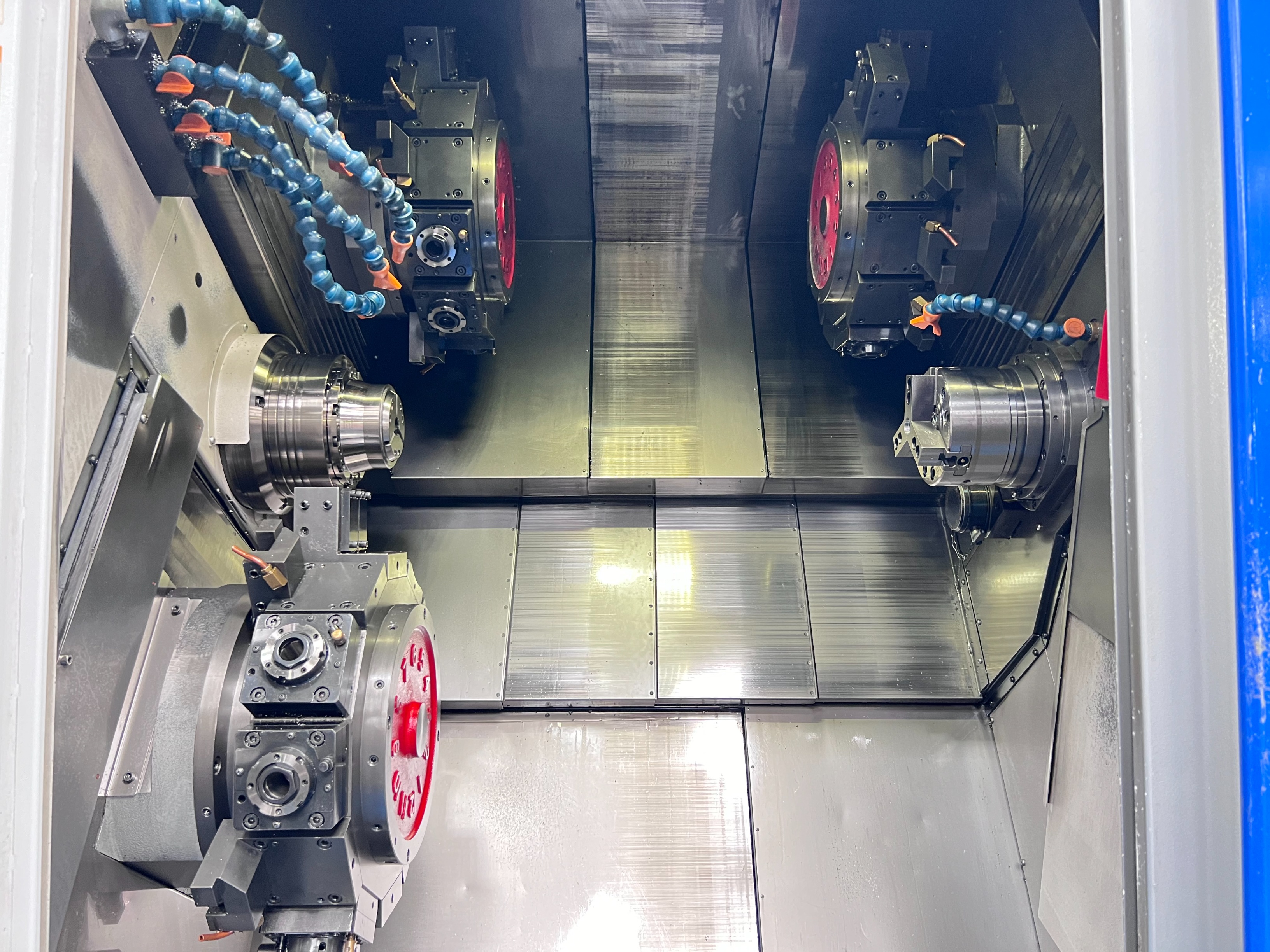

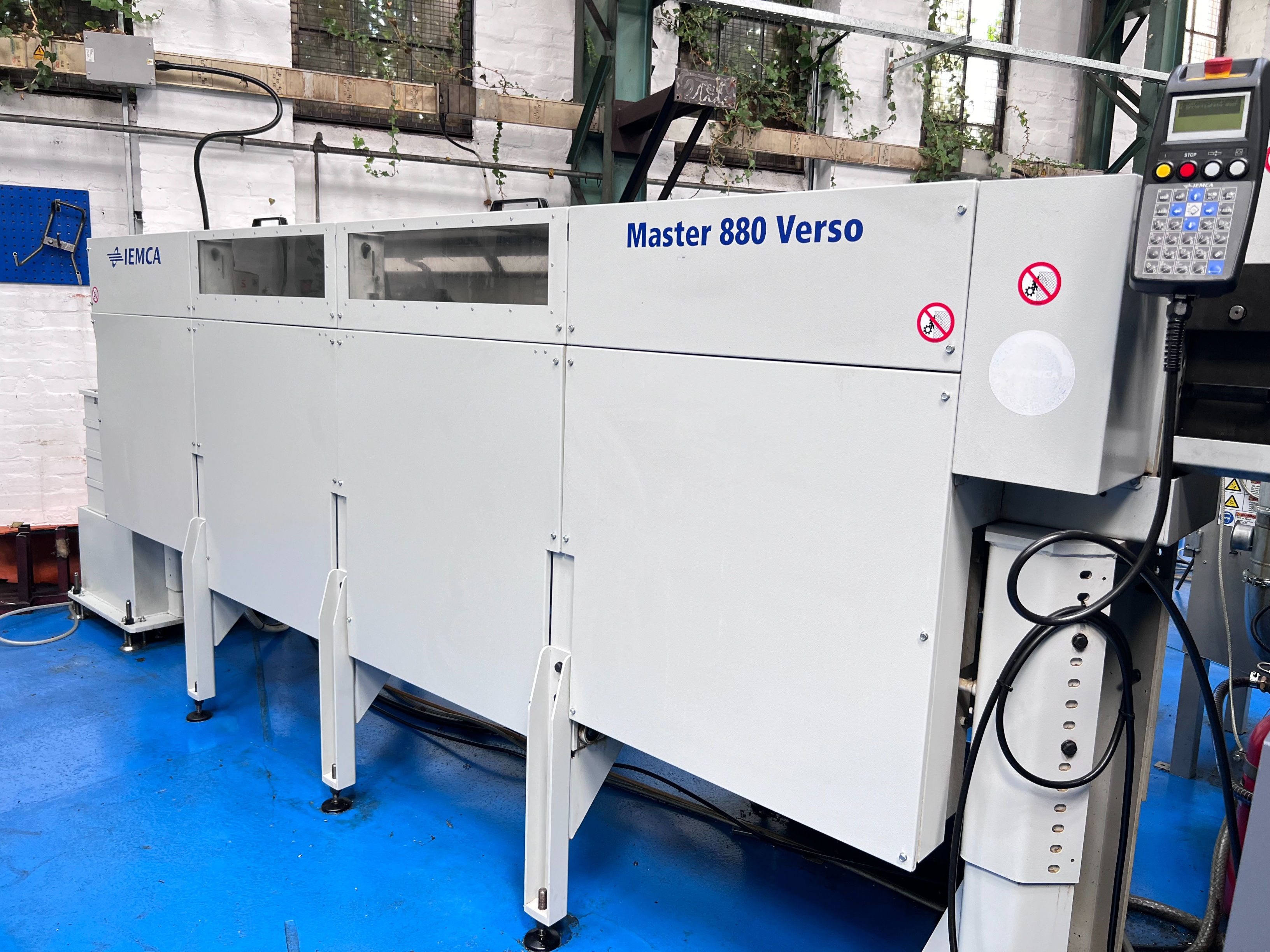

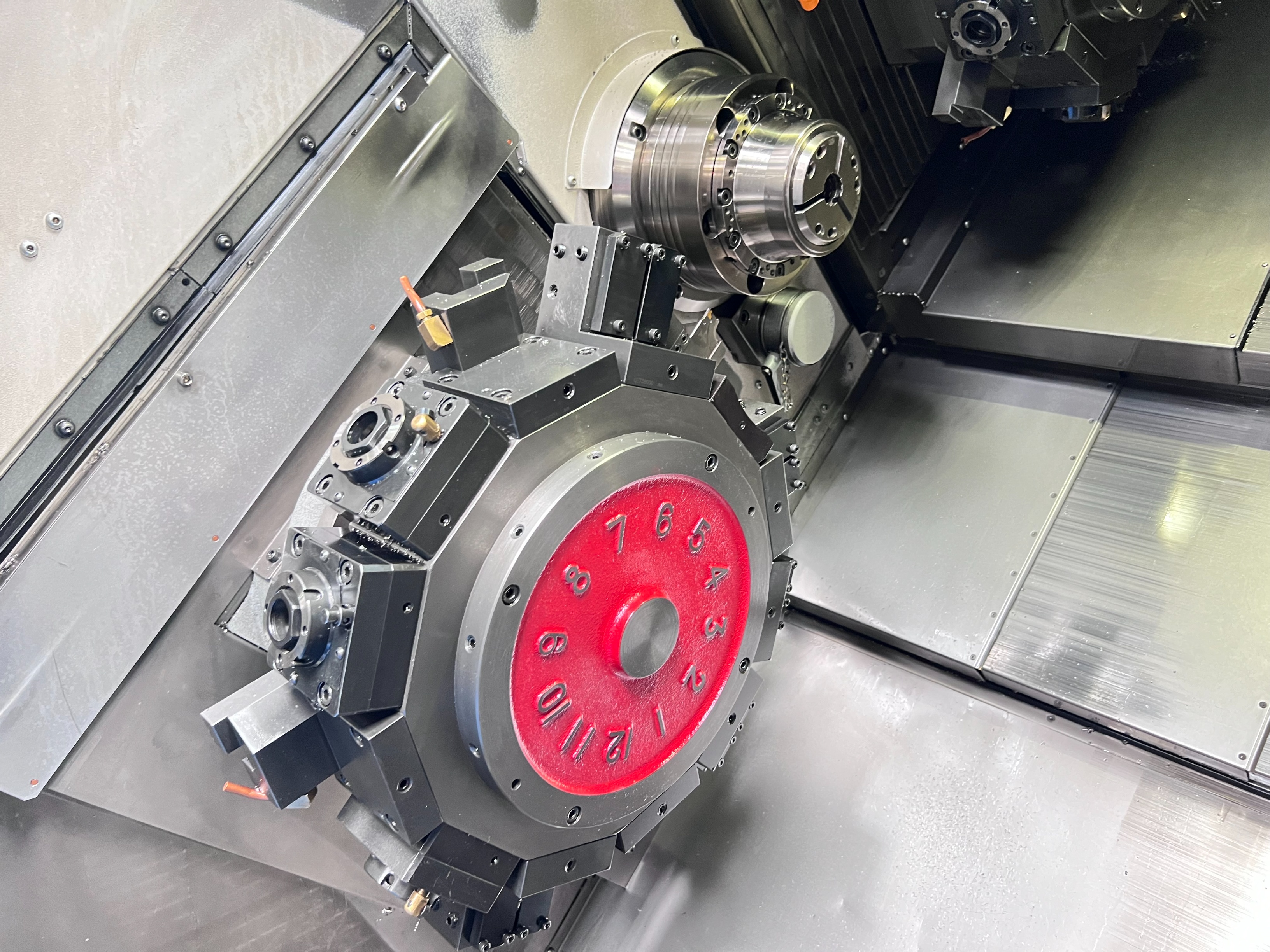

Citizen Miyano ABX64THY2 Twin Spindle Triple Turret CNC Lathe. S/No. CP0048 (2016) with Fanuc Series 31i-Model BCNC Control, Y Axis on all Turrets, (3) x 12 Tool Turrets, Hainbuch 5K65 Collet Chuck on Main Spindle, Kitagawa B-206 3 Jaw Chuck on Sub Spindle, Hainbuch Spare Collet Chuck, Machining Capacity (max work length) SP1 118mm, SP2 125mm, Max Work Diameter for Bar Work 64mm (SP1) Spindle Speeds 40 - 4000rpm, IEMCA Master 880P Type 33L Barfeeder. S/No. 021730SA0 (2017) Hydrafeed Rota-Rack Turned Parts Accumulator, Pumps & Equipment, Hydrajet TSC50-1000-3, High Pressure Coolant System, TPC Chiller Unit, Absolent A Mist 10S Oil Mist Filter Unit, Swarf Conveyor and Swarf Tipping Skip, Machine Weight 11350kg. Country of Origin: Japan

Please Note: This lot is located in Stourbridge, UK. There are no loading facilities onsite, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Due to export license restrictions imposed by HMRC of multi-axis CNC Machine Tools from the UK to Turkey, we regrettably advise that we cannot accept bids on such items from buyers in Turkey. We apologise for any inconvenience caused.

Please Note: Should you be successful in purchasing an item and wish to Export it from the UK, a charge of £55 plus VAT will be automatically added to your invoice to prepare the goods and the paperwork which will require UK Export Customs Declarations. This process is now a mandatory UK export requirement from 1st January 2021. All our invoices are issued on an Incoterms EXW (Ex Works) basis.
