Lote *: Anelli Esterni Linea / External and Internal Ring Grinding Line 6 - 12" (152 - 320mm)

Anelli Esterni Linea / External and Internal Ring Grinding Line 6 - 12" (152 - 320mm)

Comprising of Lots 9, 10, 11, 12 & 13

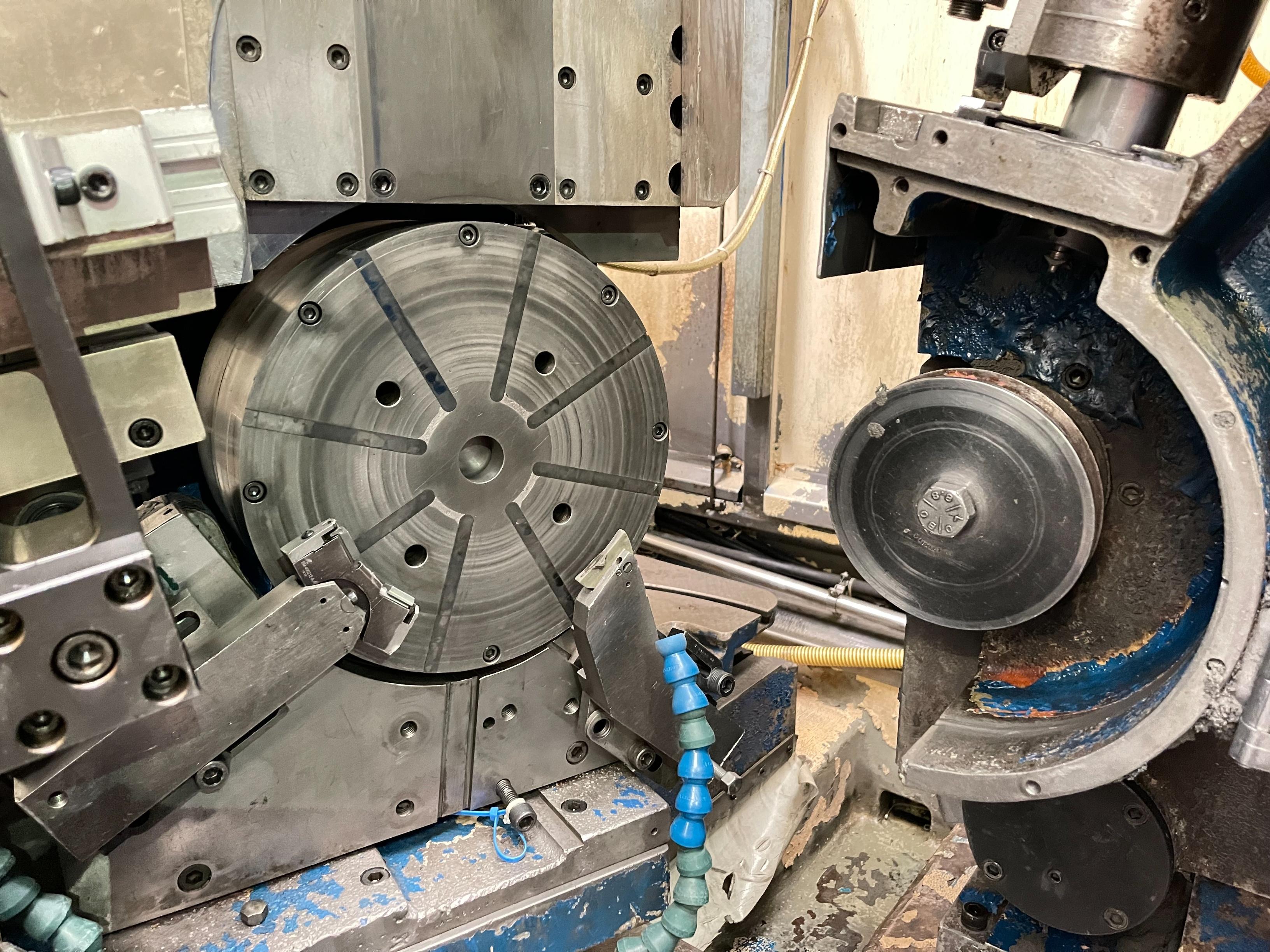

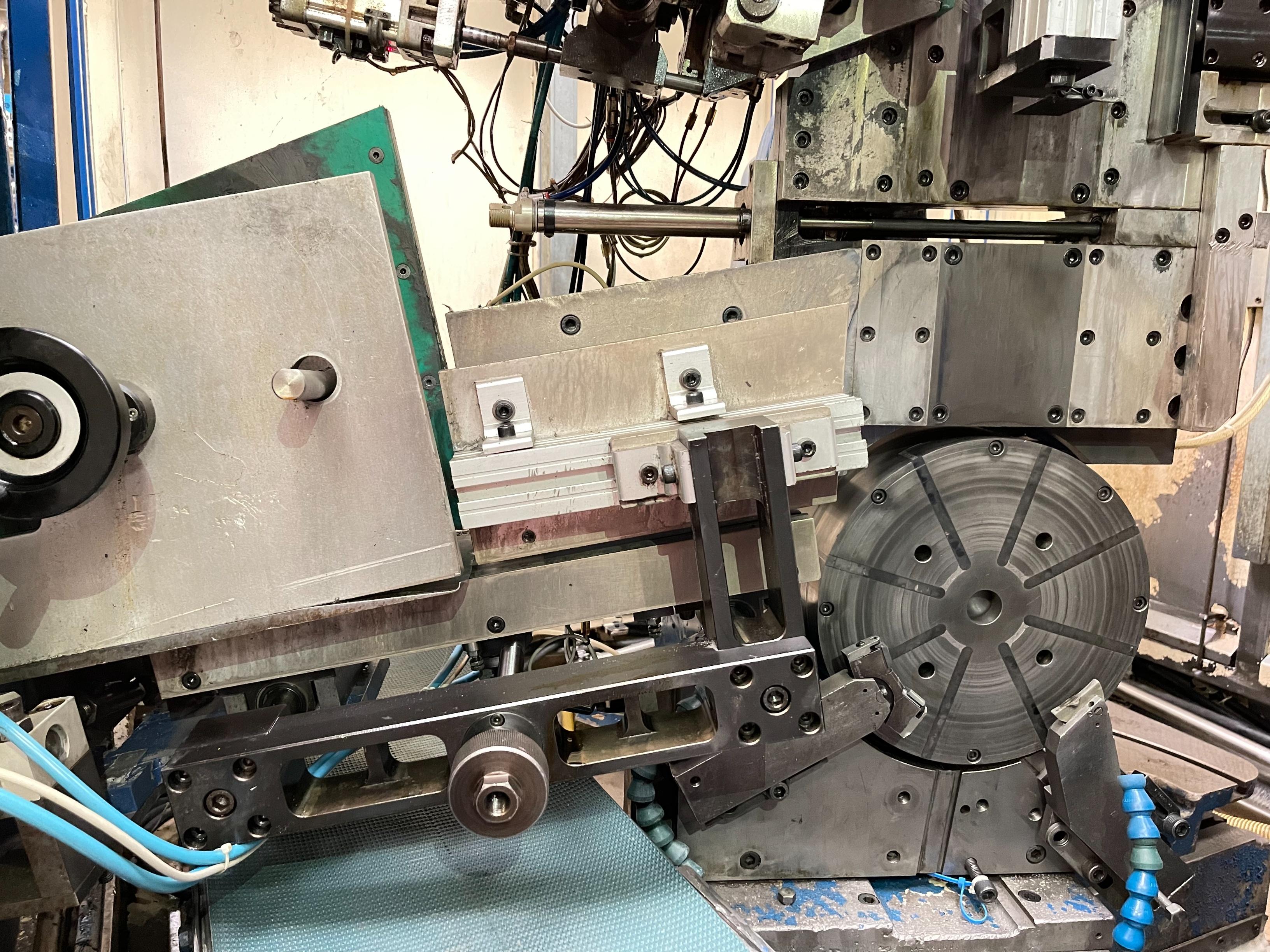

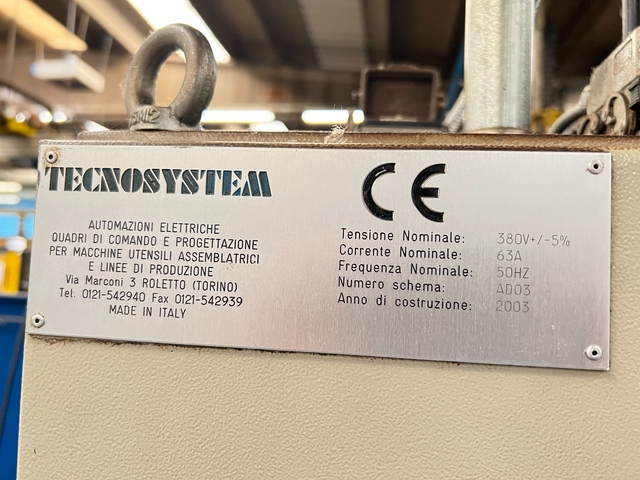

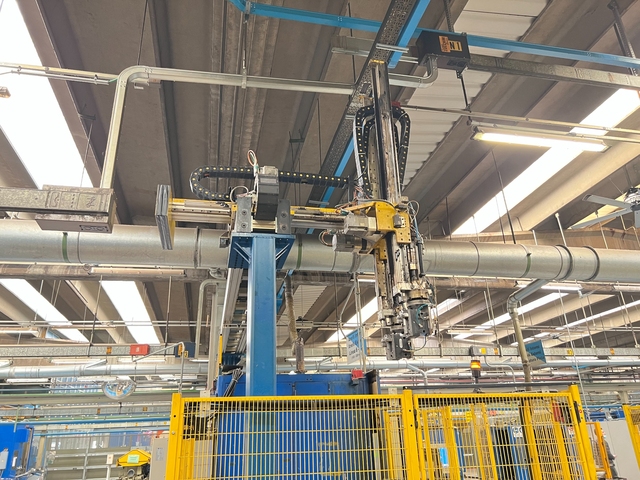

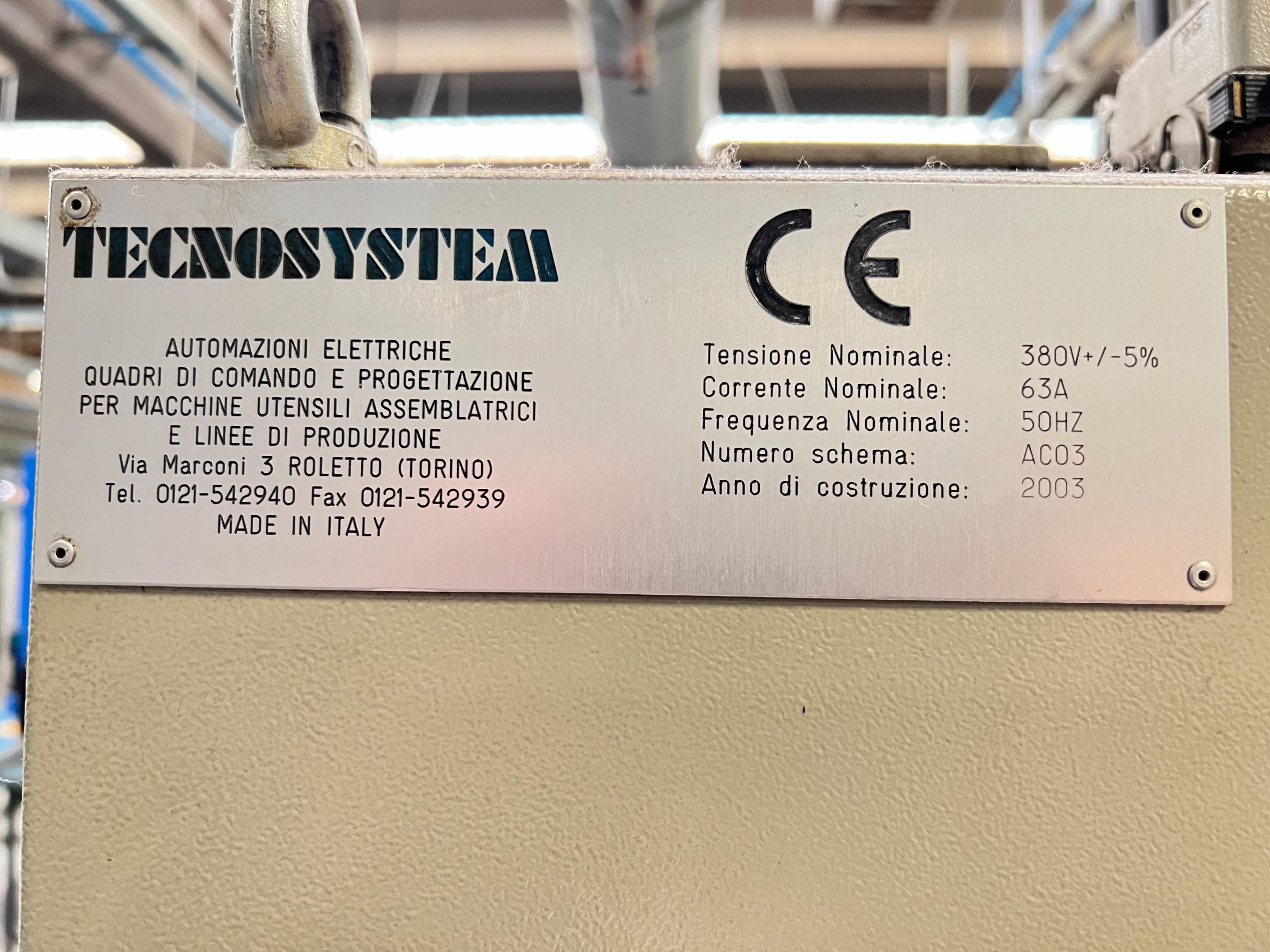

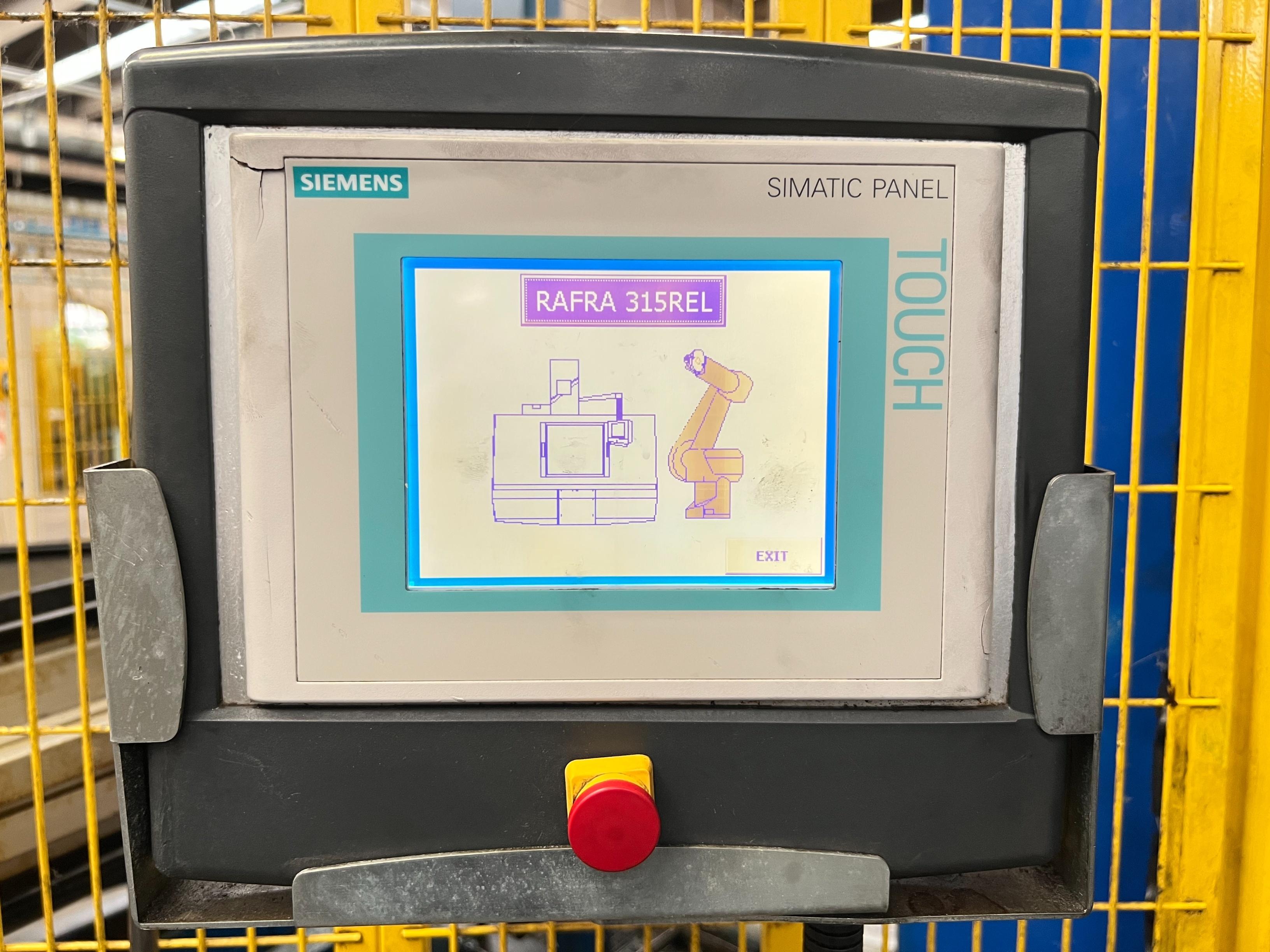

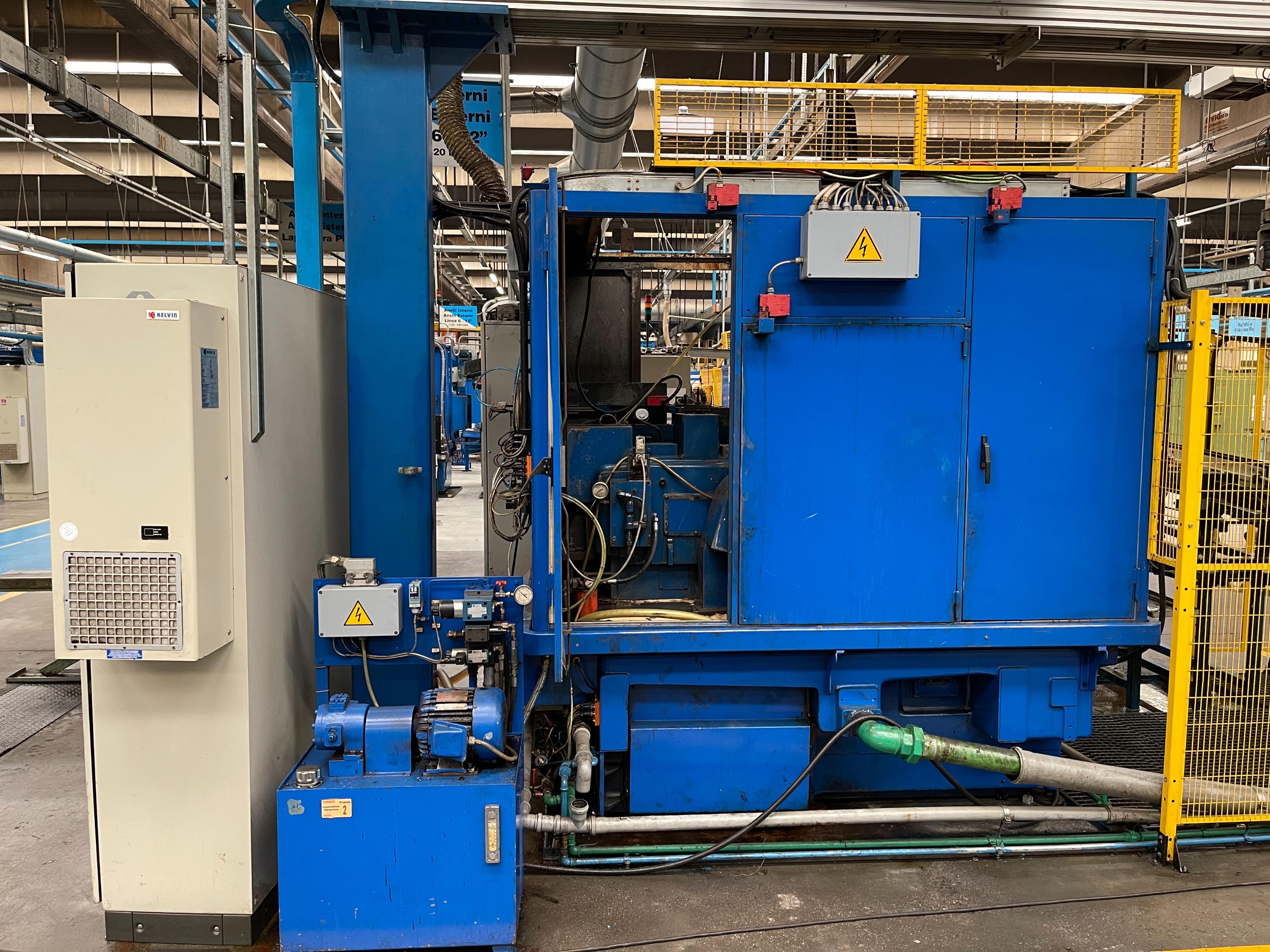

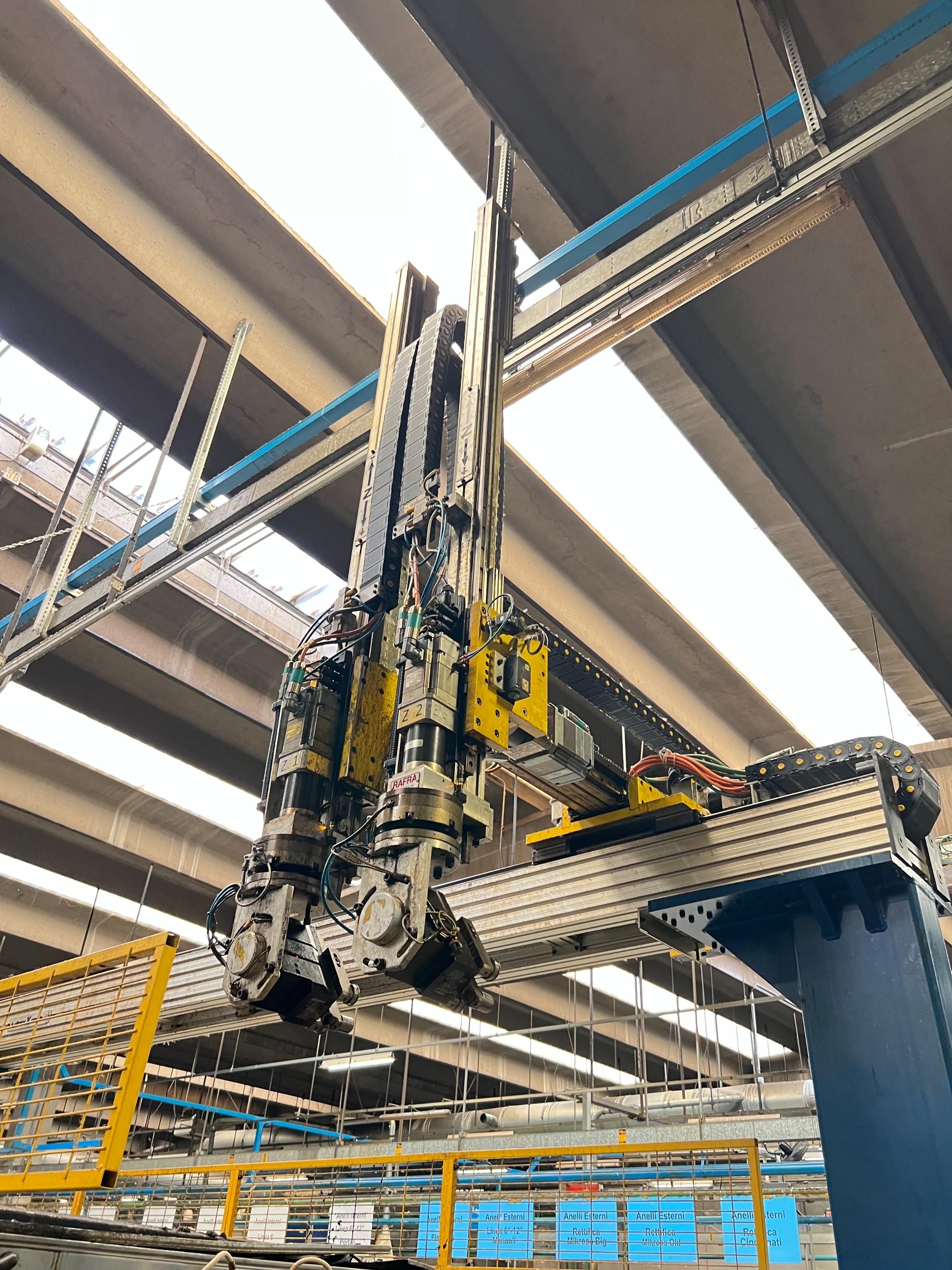

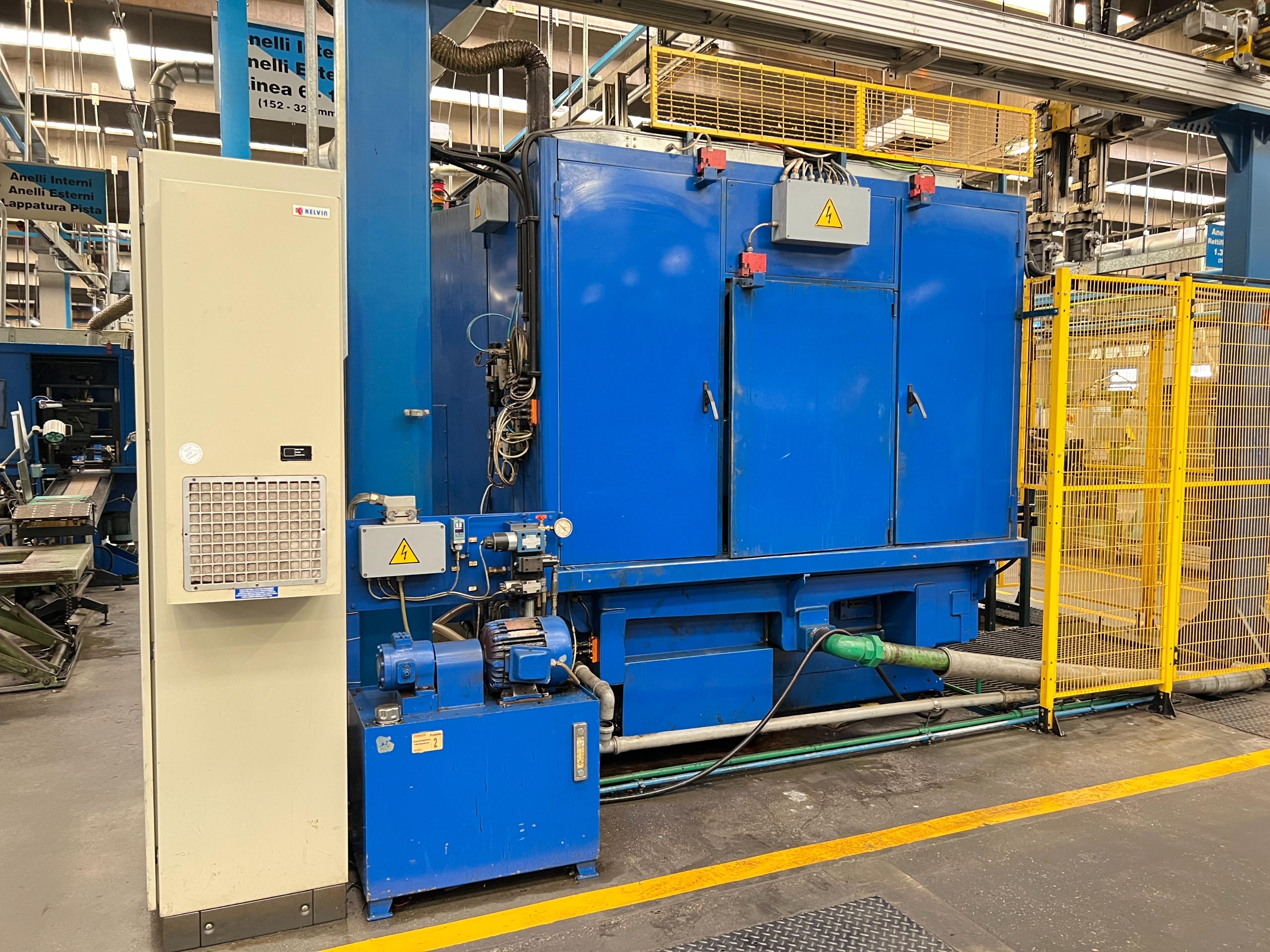

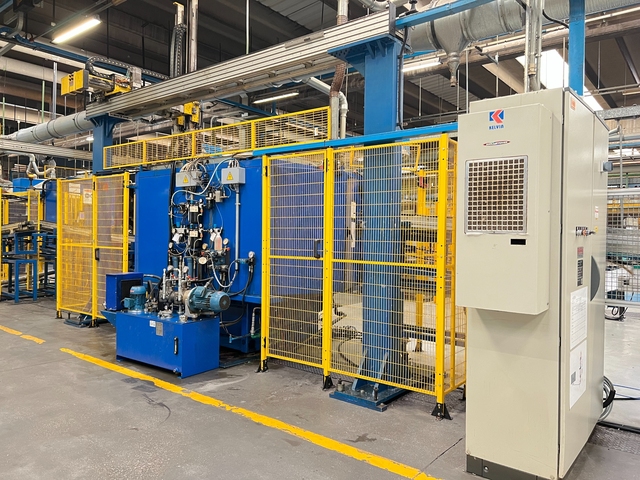

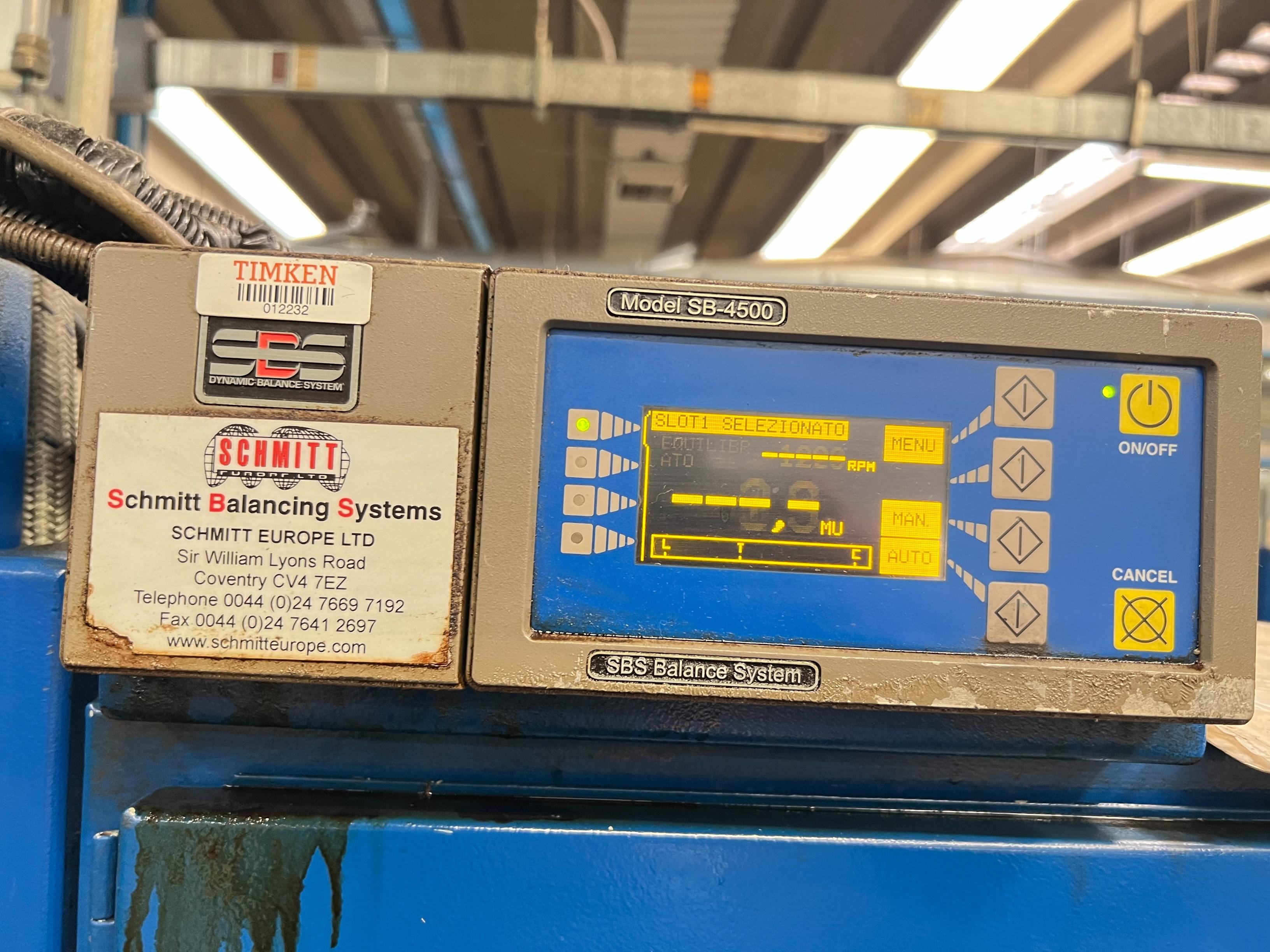

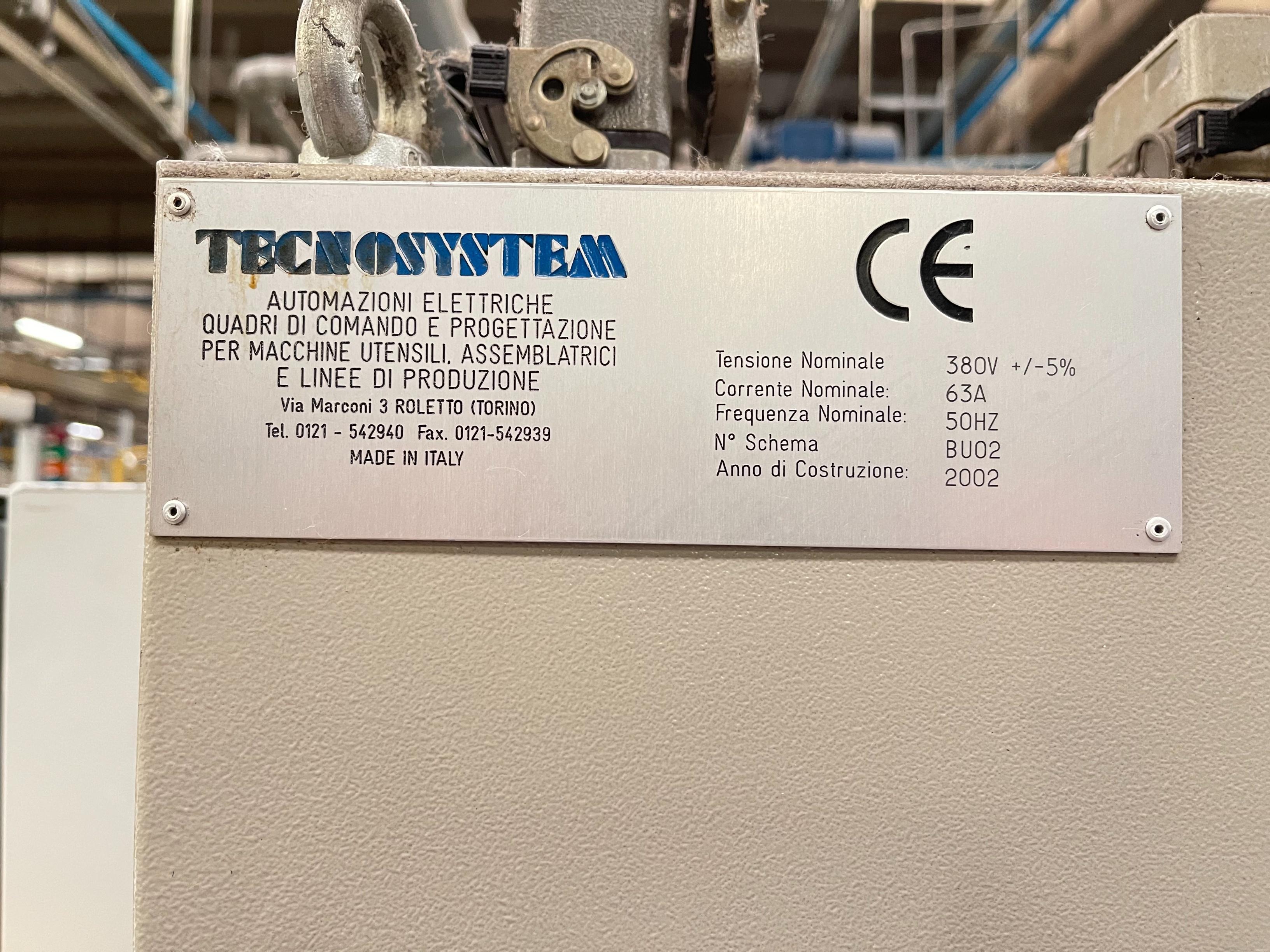

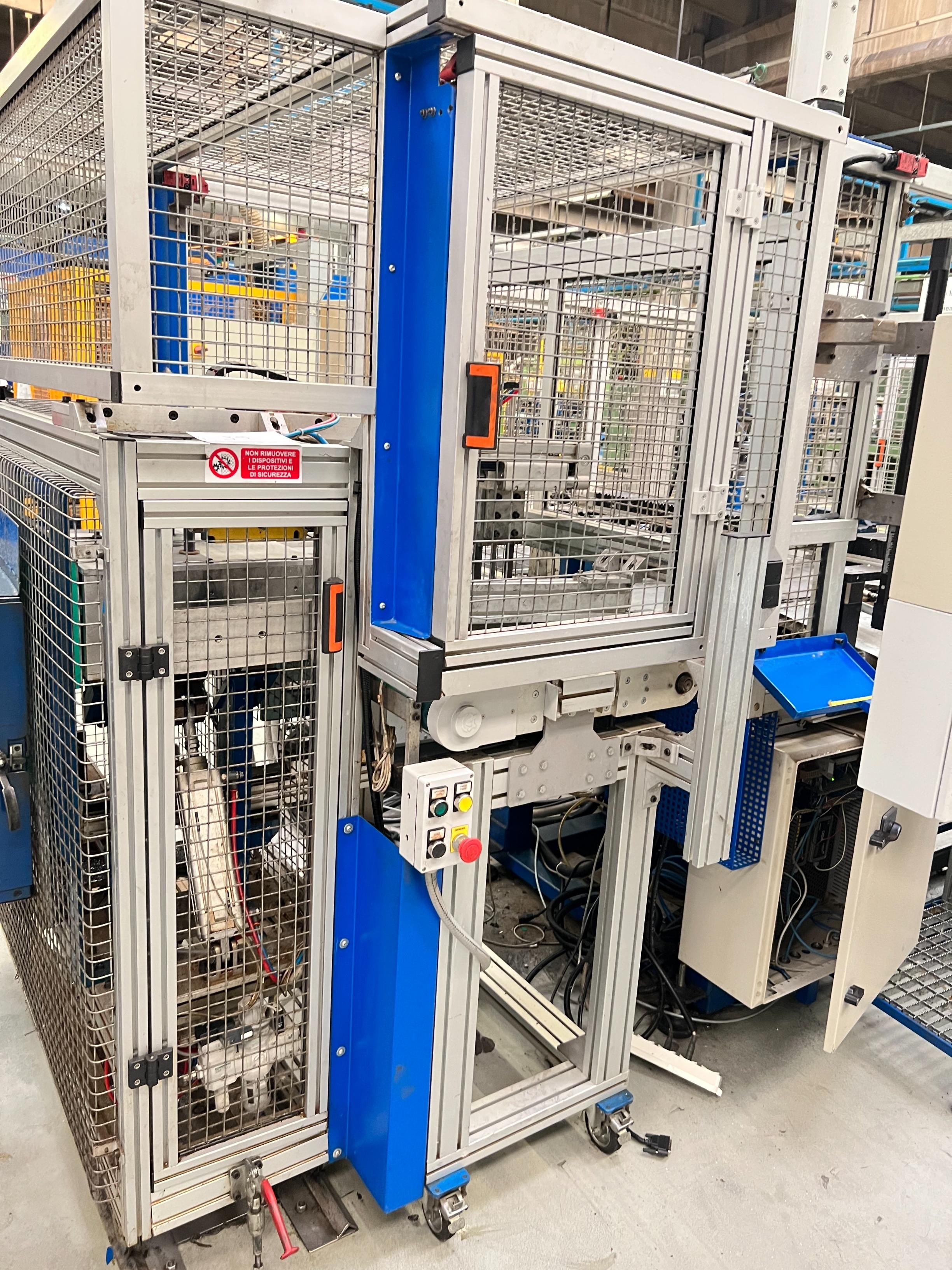

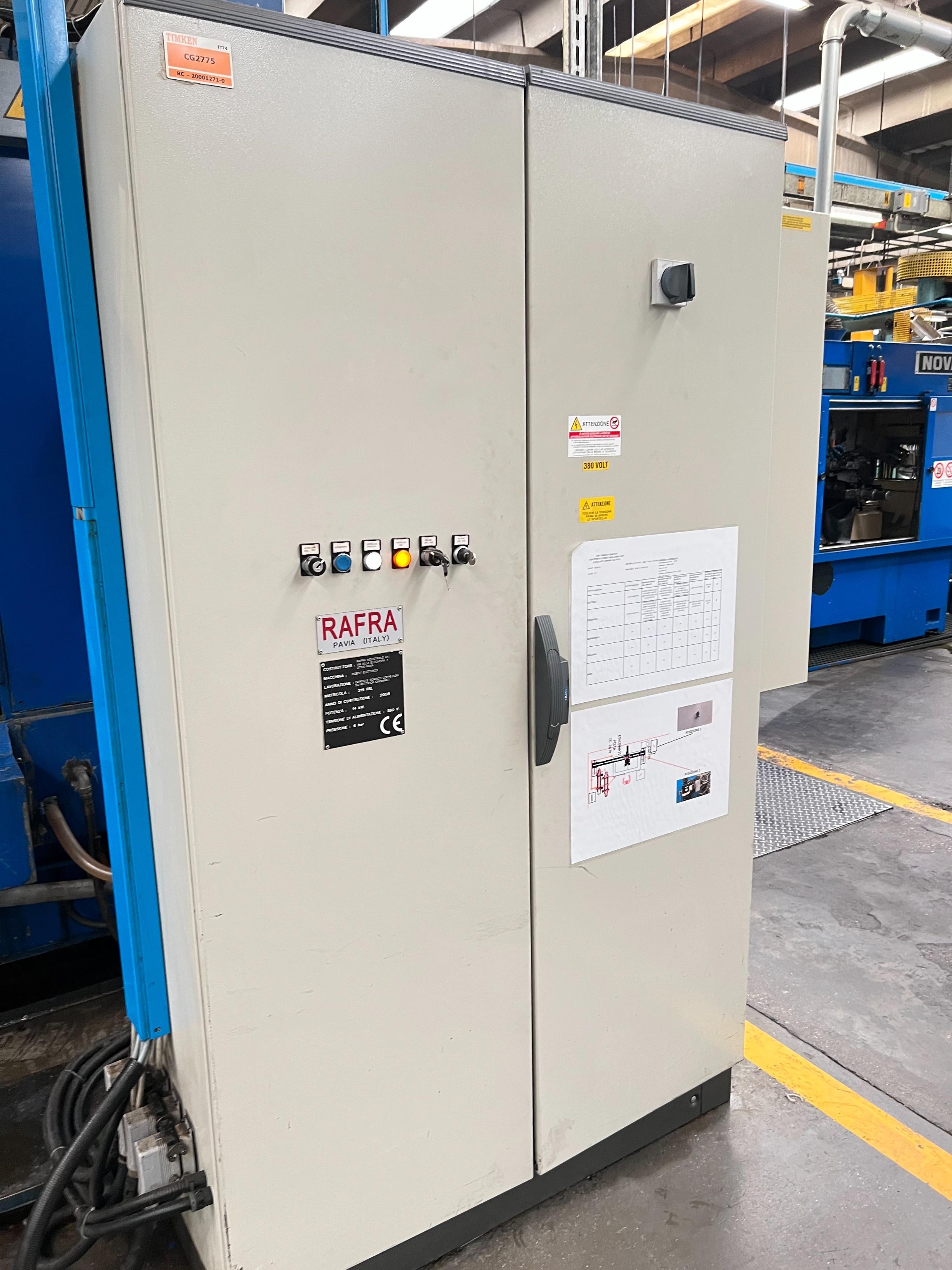

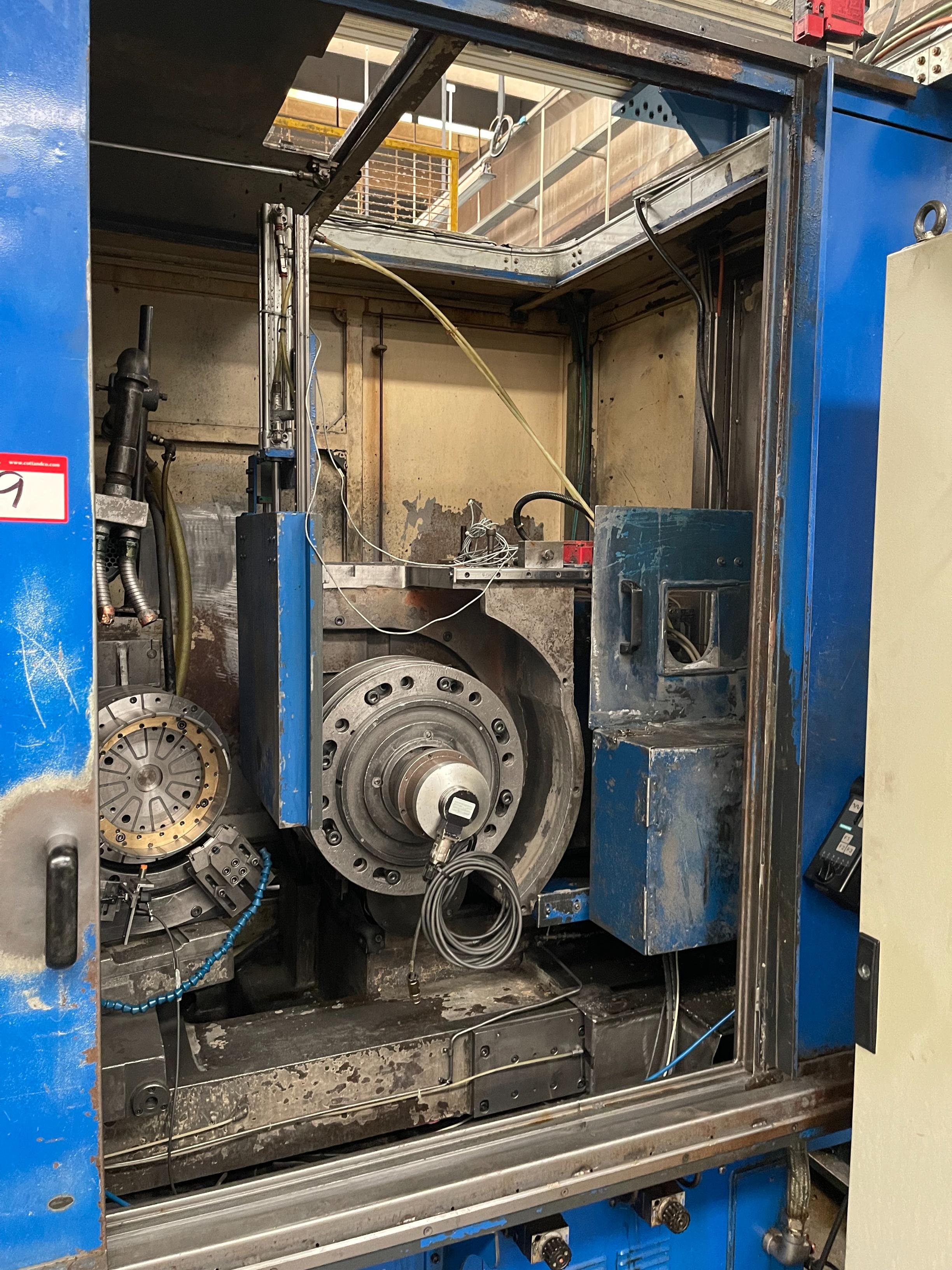

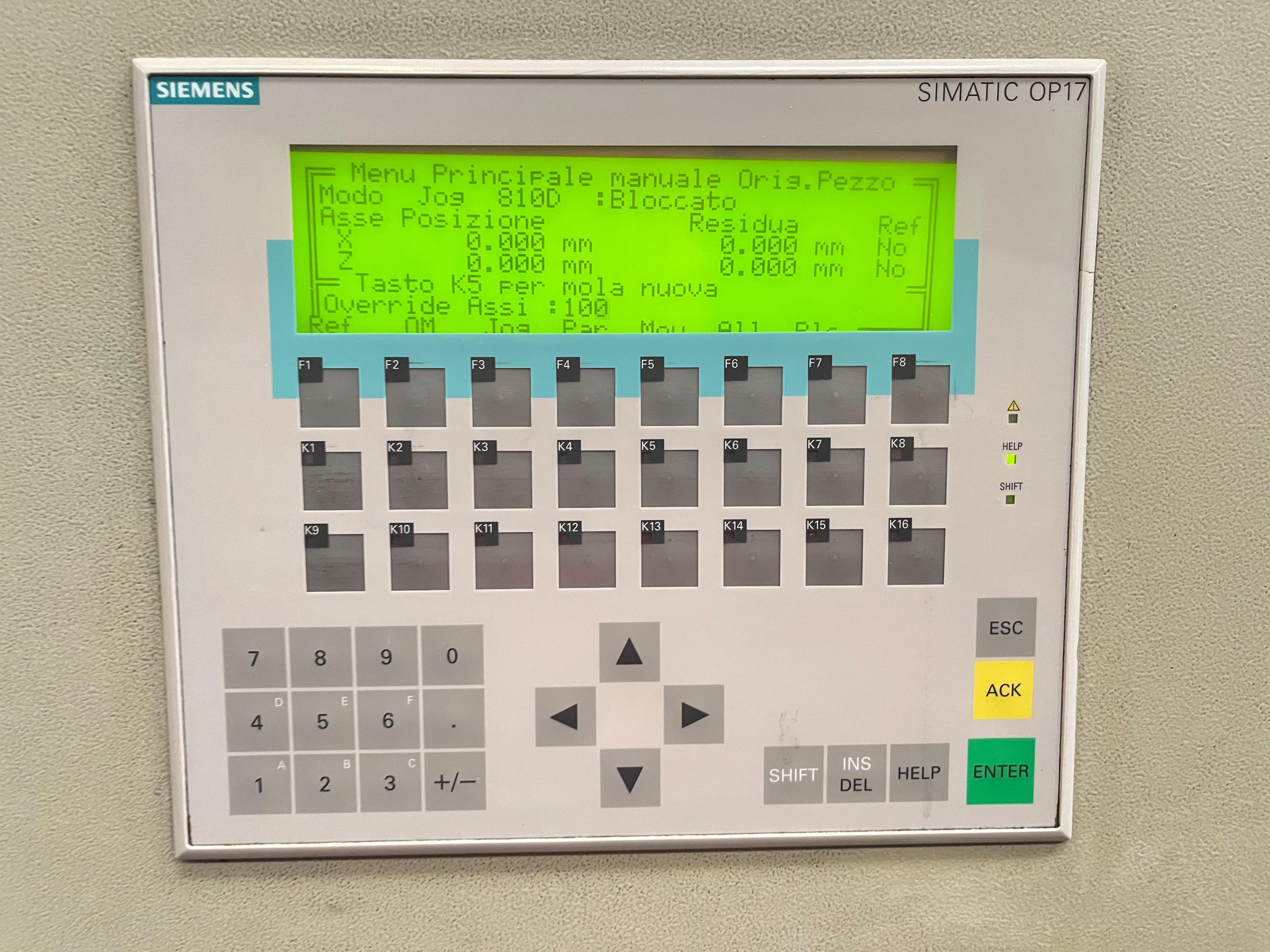

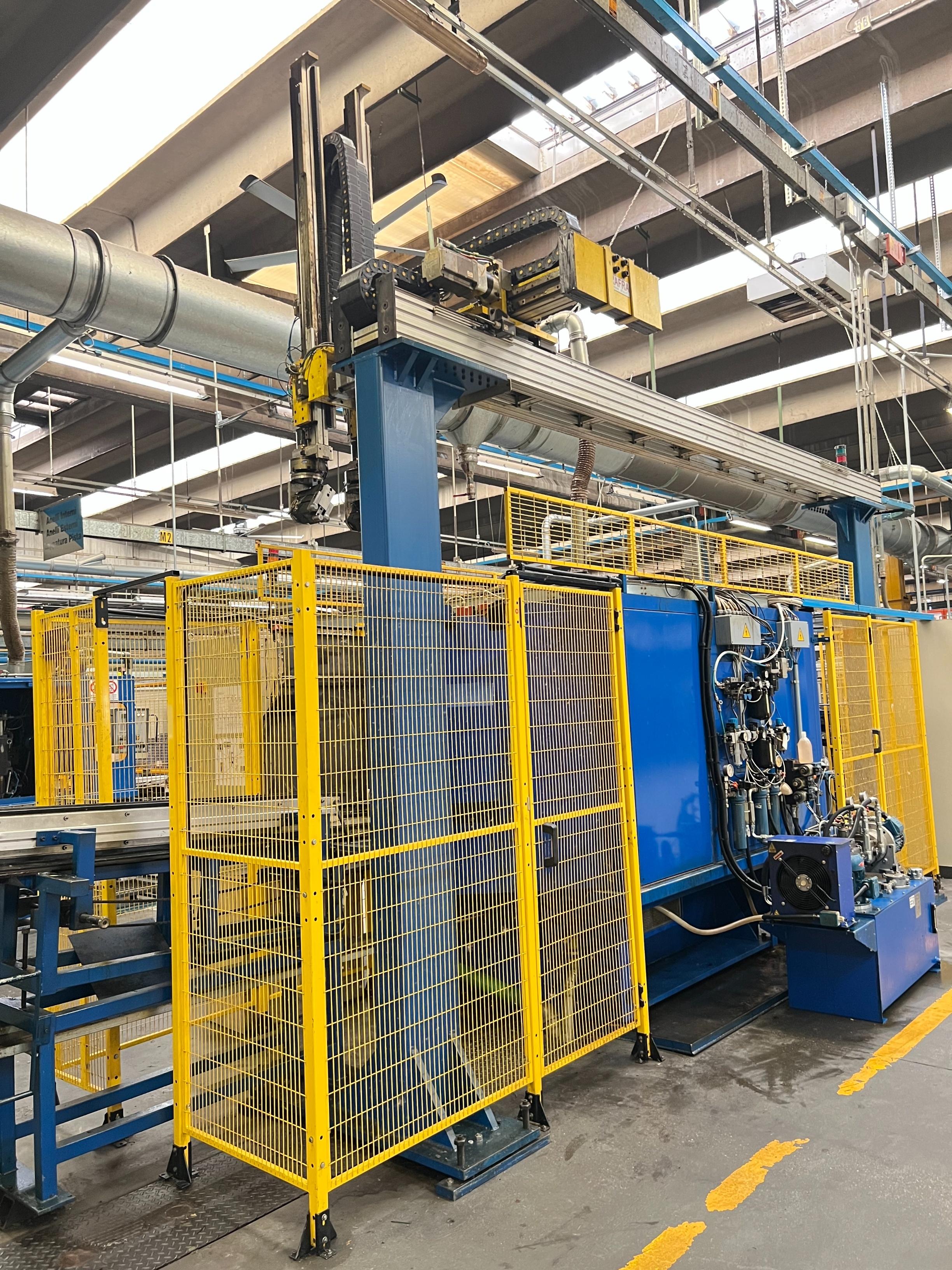

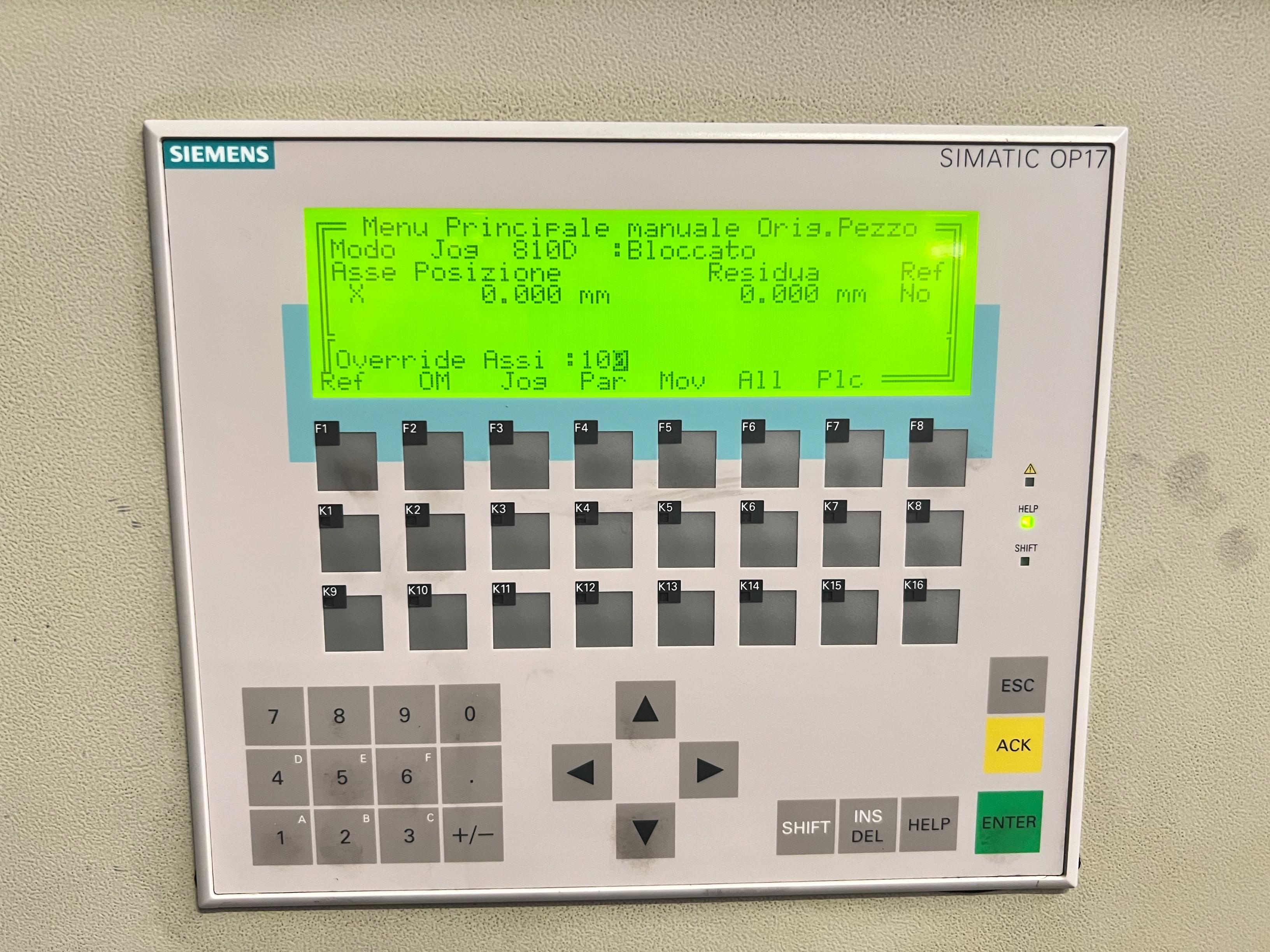

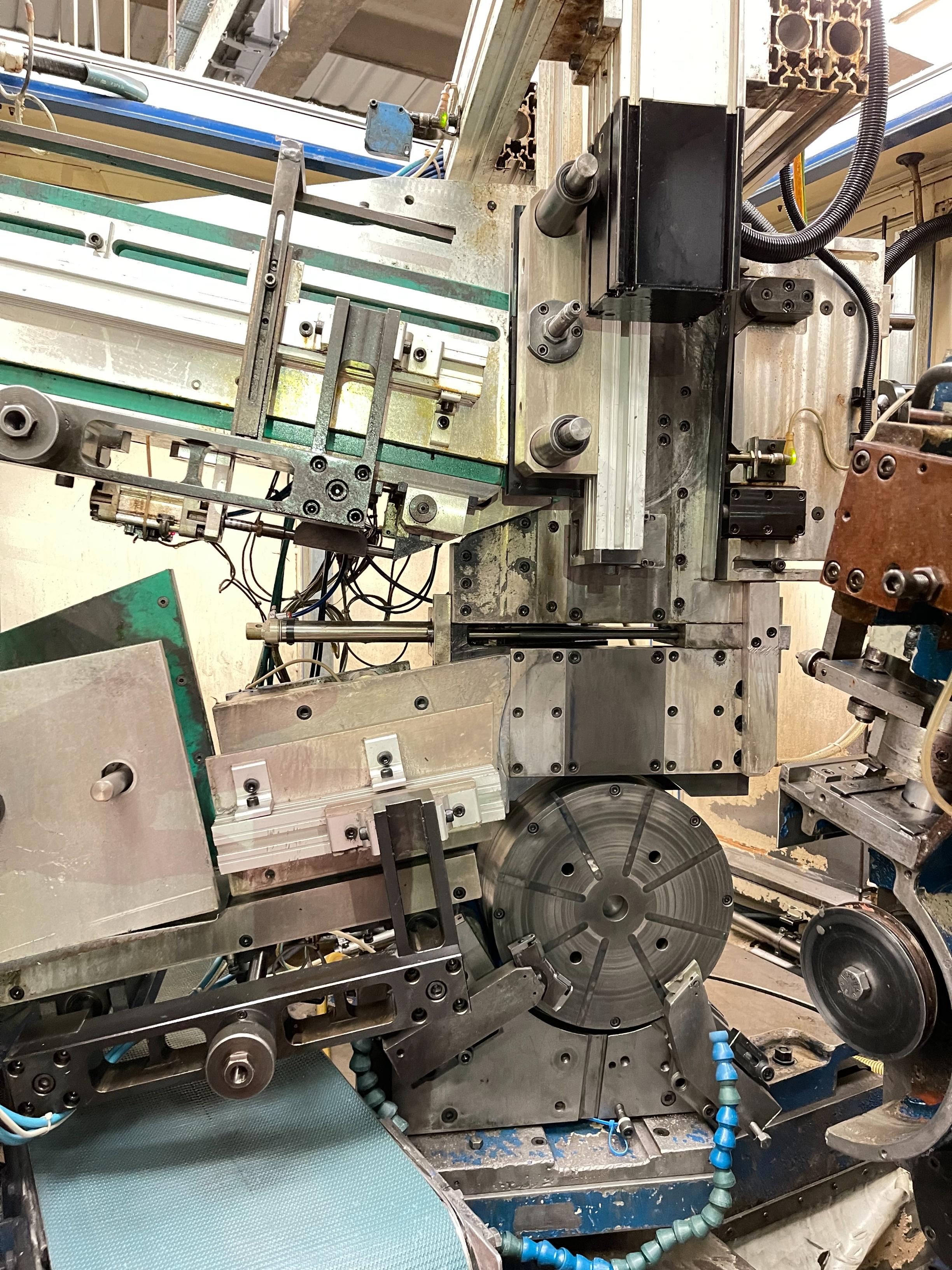

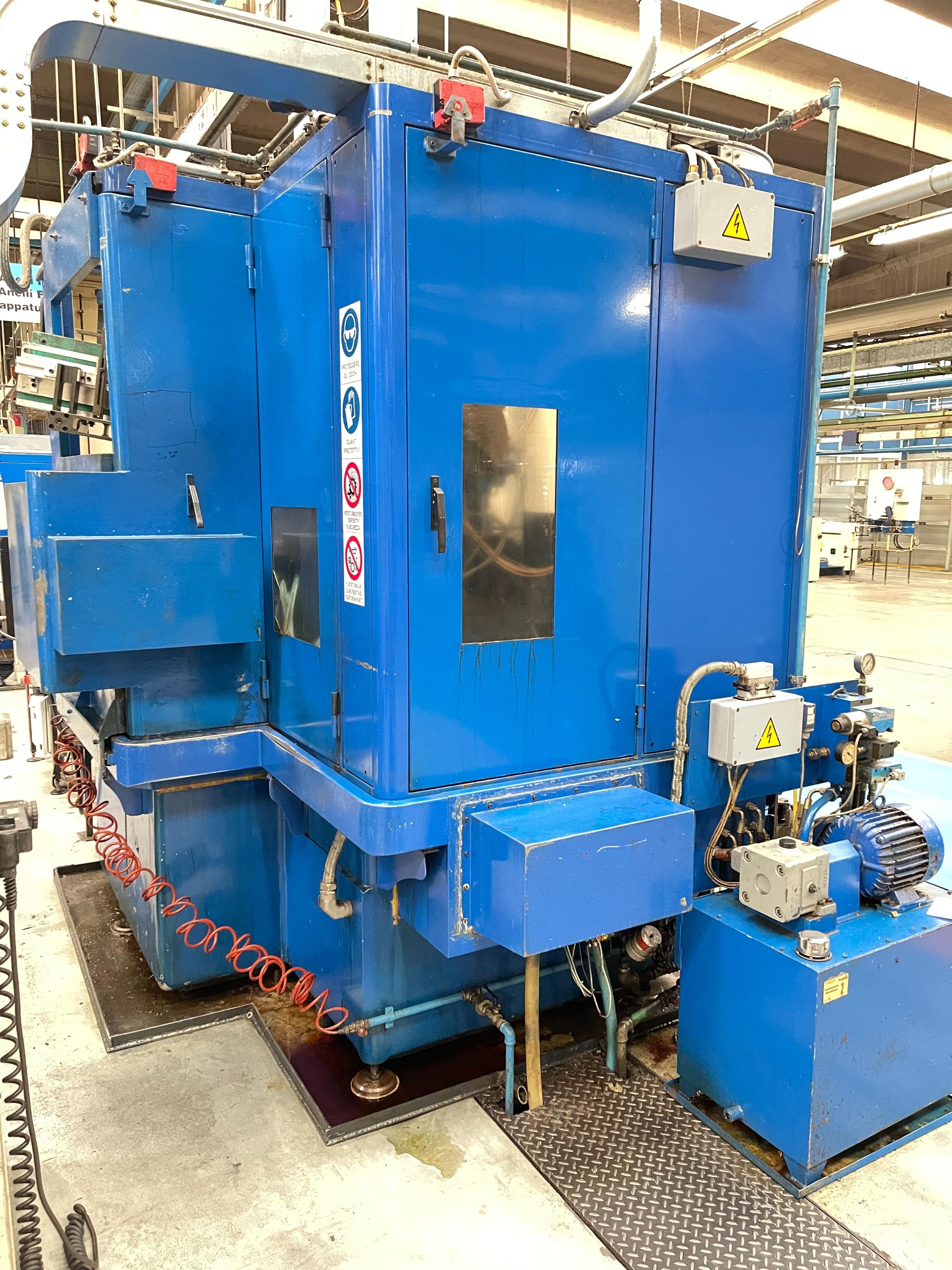

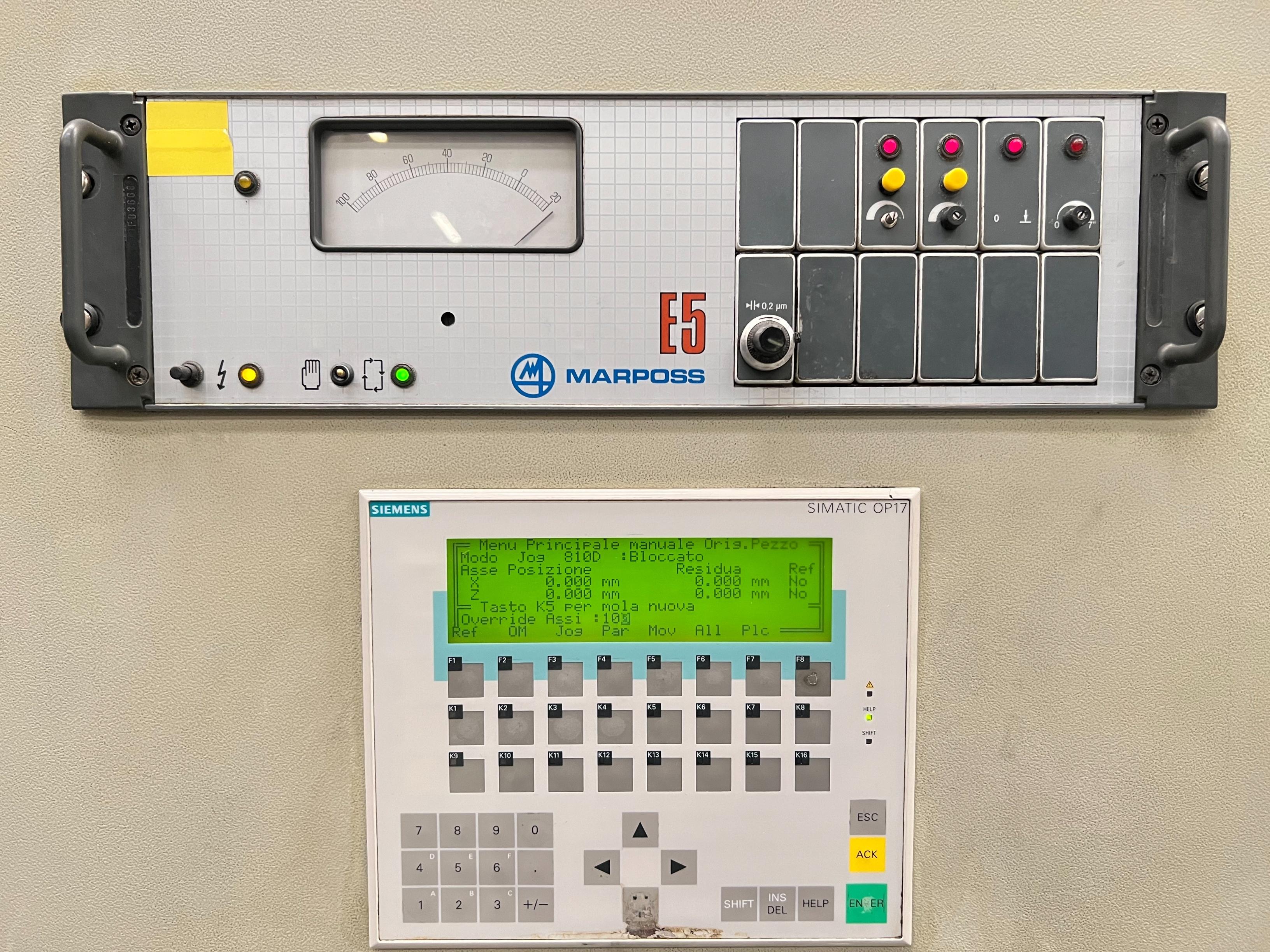

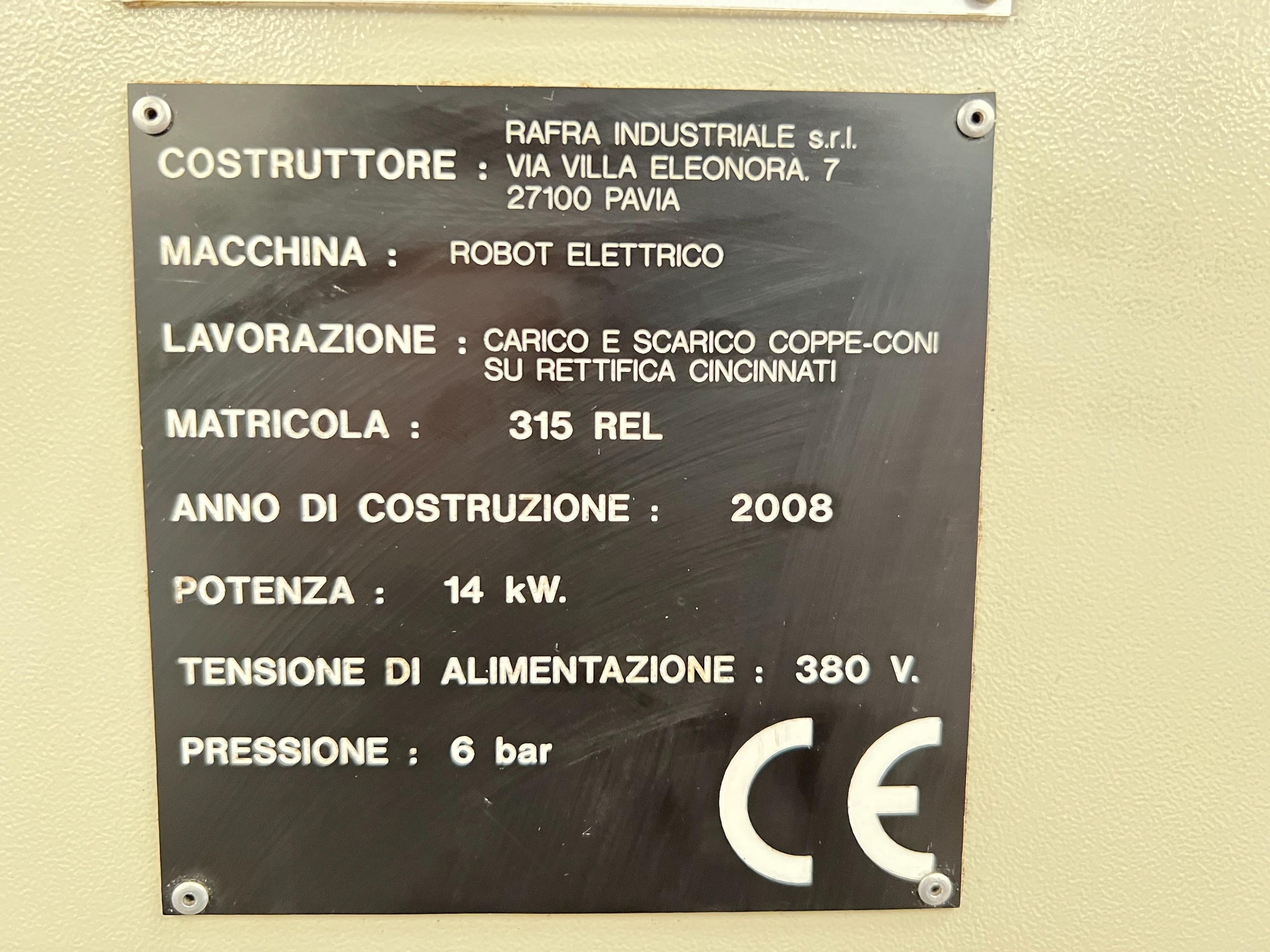

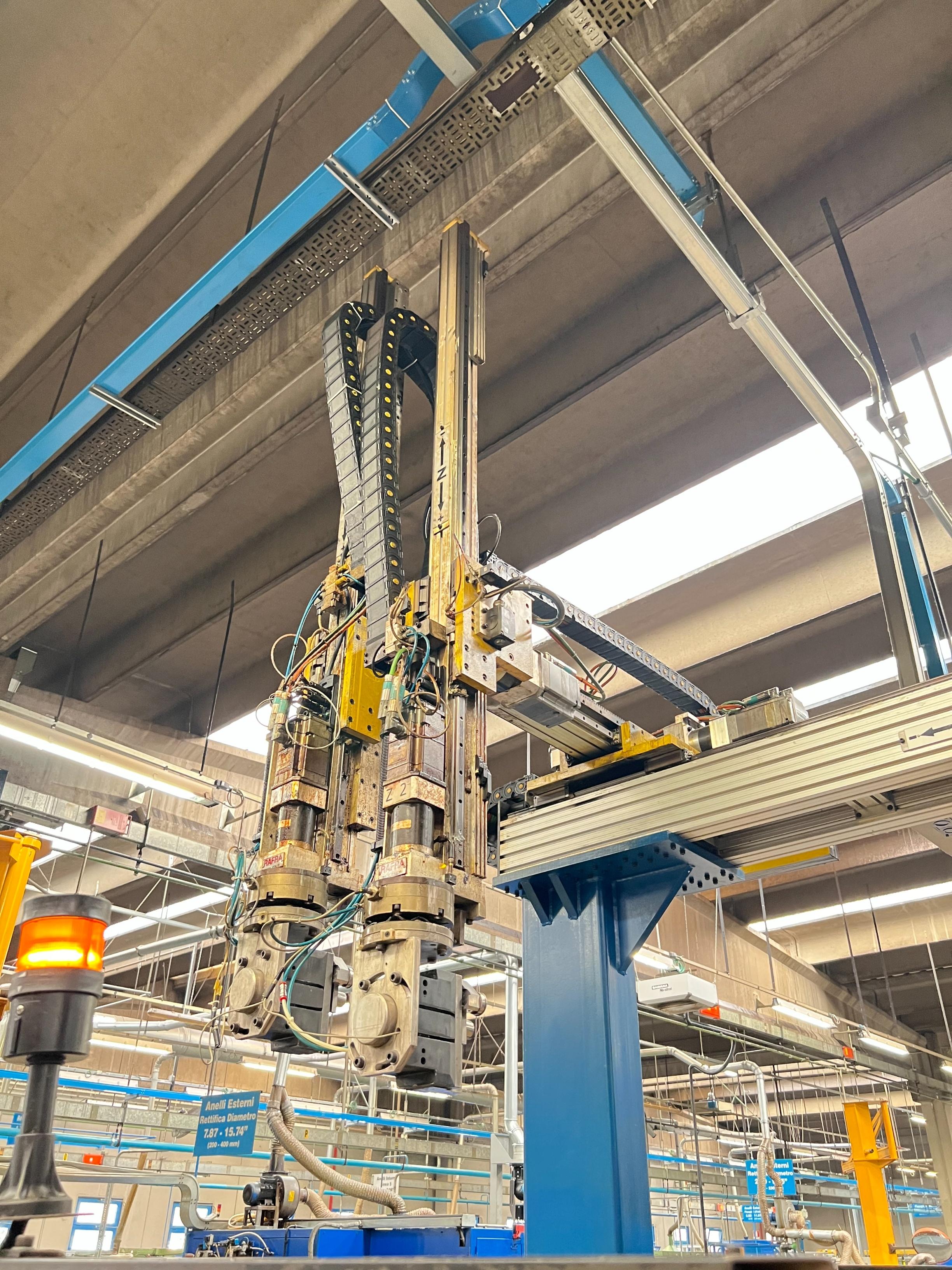

Lot 9 - Cincinnati OD Grinder. With Rafra Twin Pick and Place Arm, Siemens Simatic Touch Screen for pick and place S/No. 315REL (2008) Siemens Simatic OP17 machine control, Automated Unloading, Dynamic Wheel Balancing, Marposs Measurement Gauge, Overhead Wheel Dresser not included. Electrics Retrofit by Tecnosystem in 2003. CE Marked

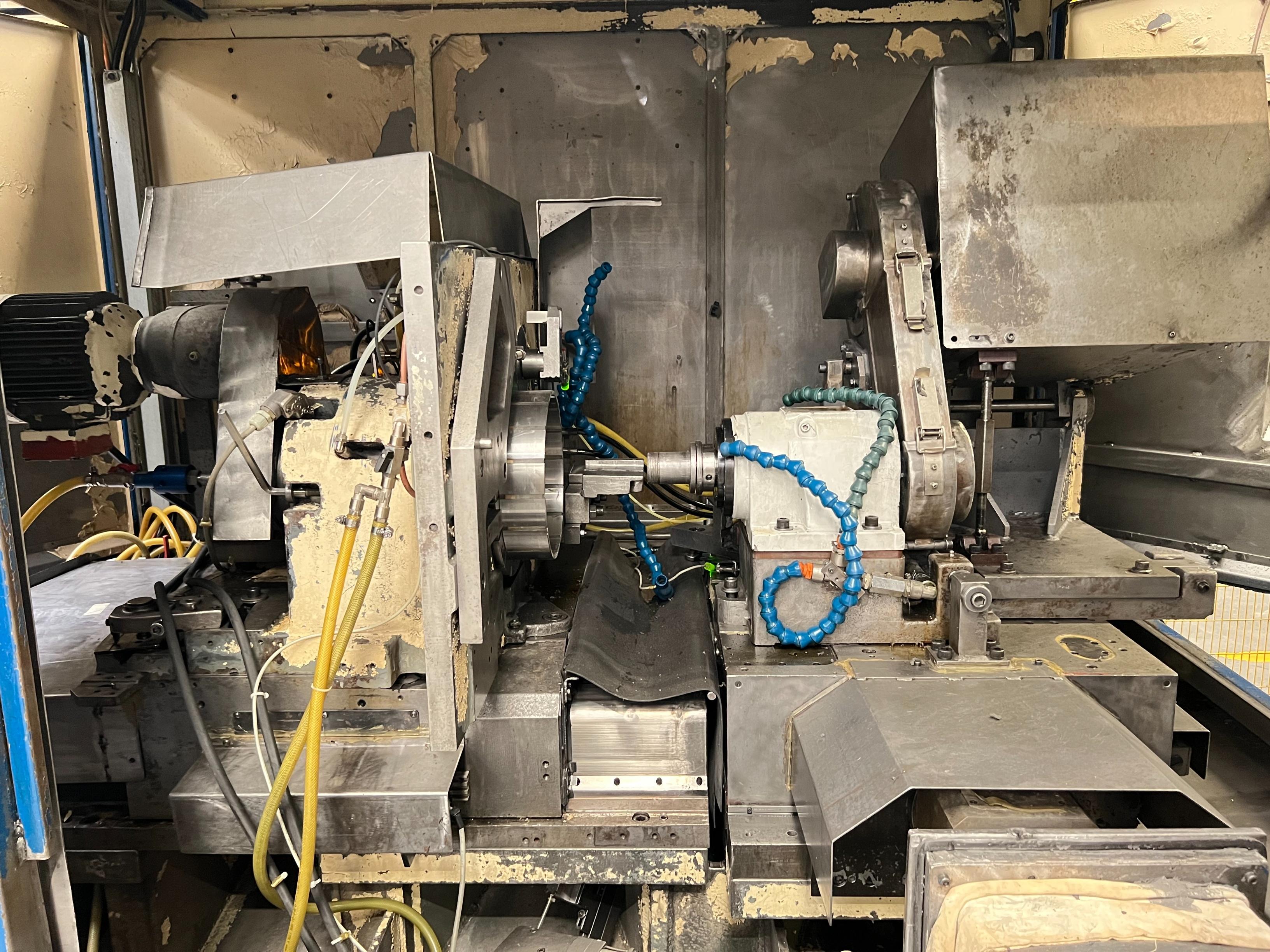

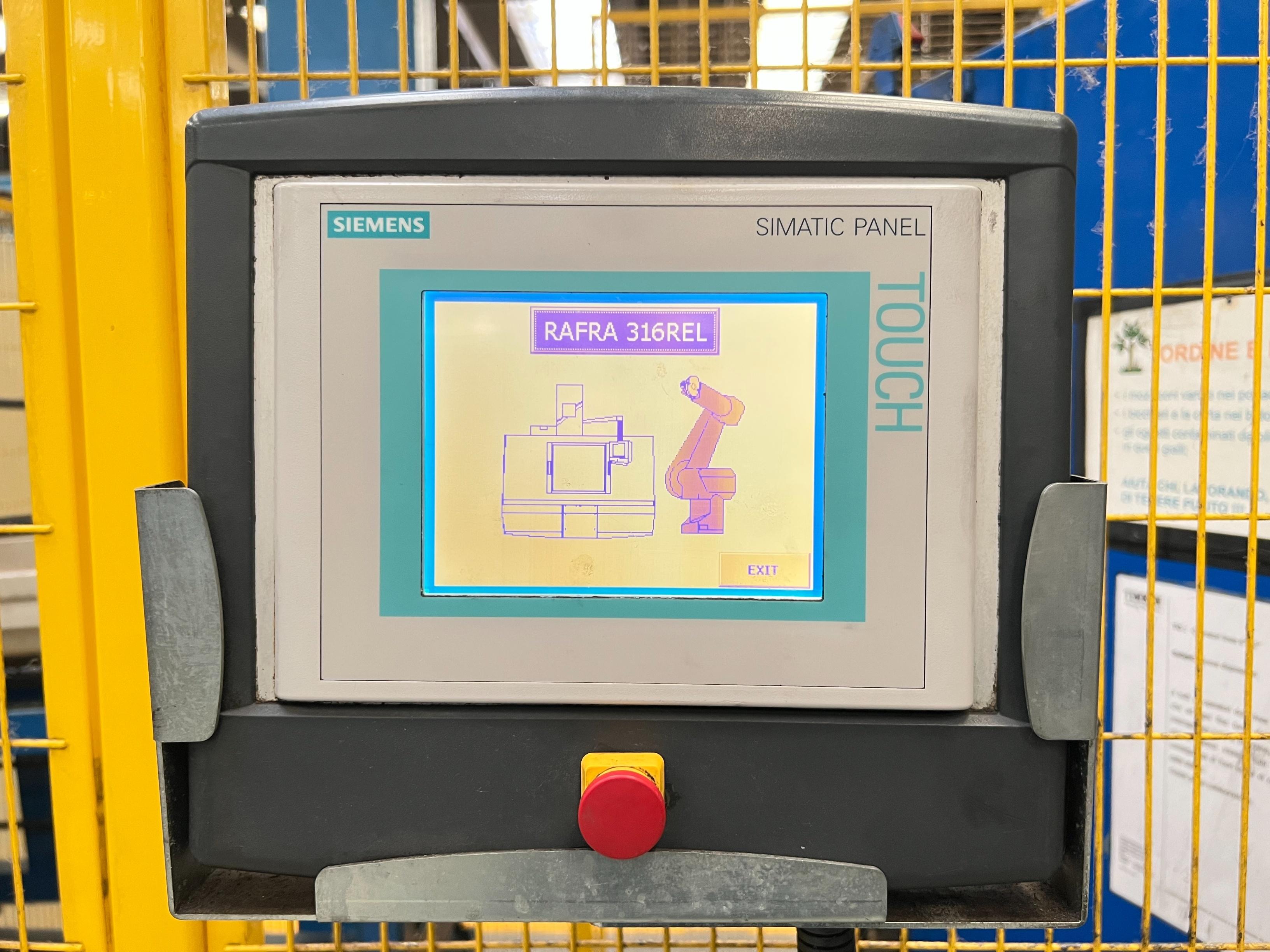

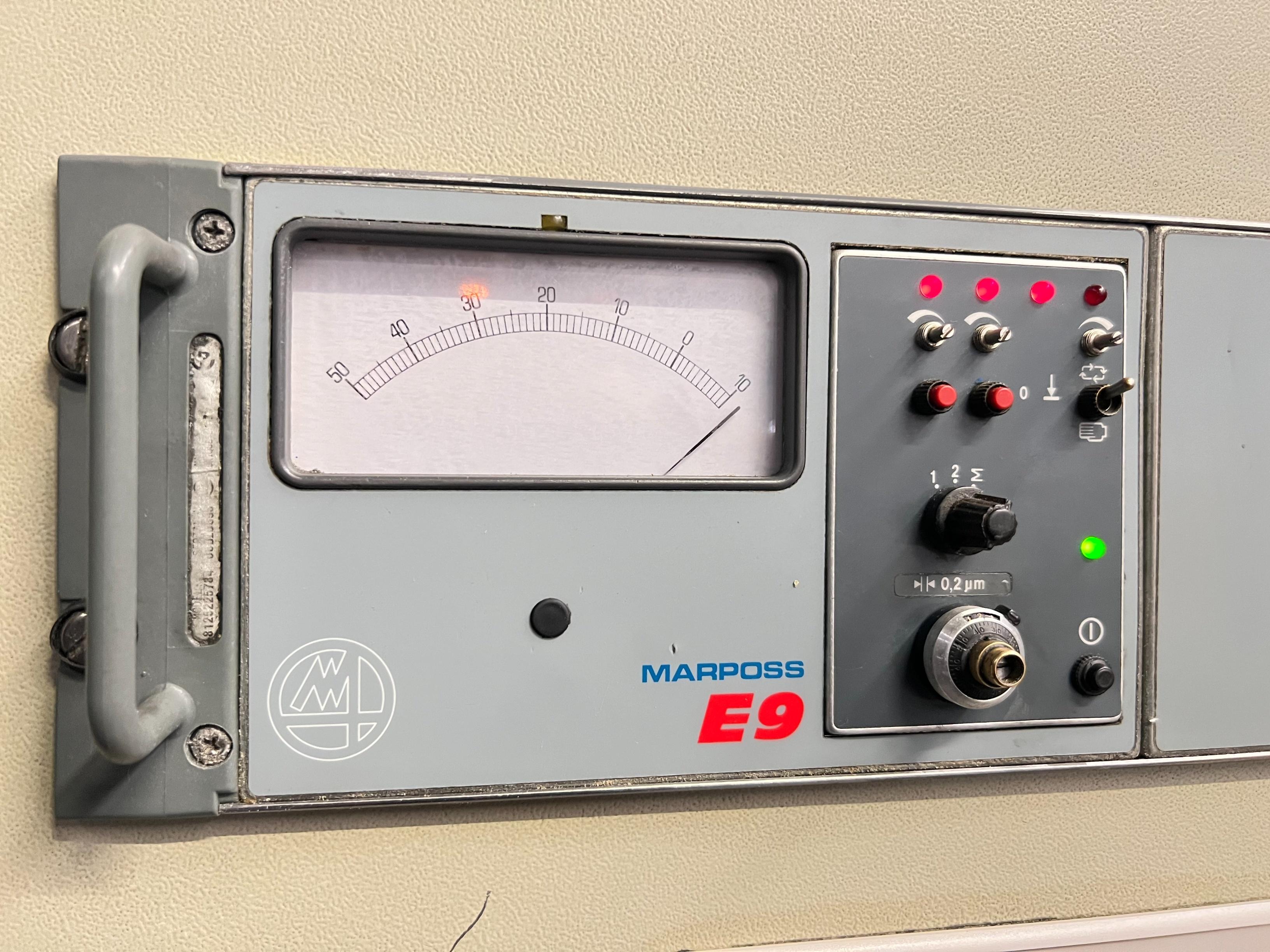

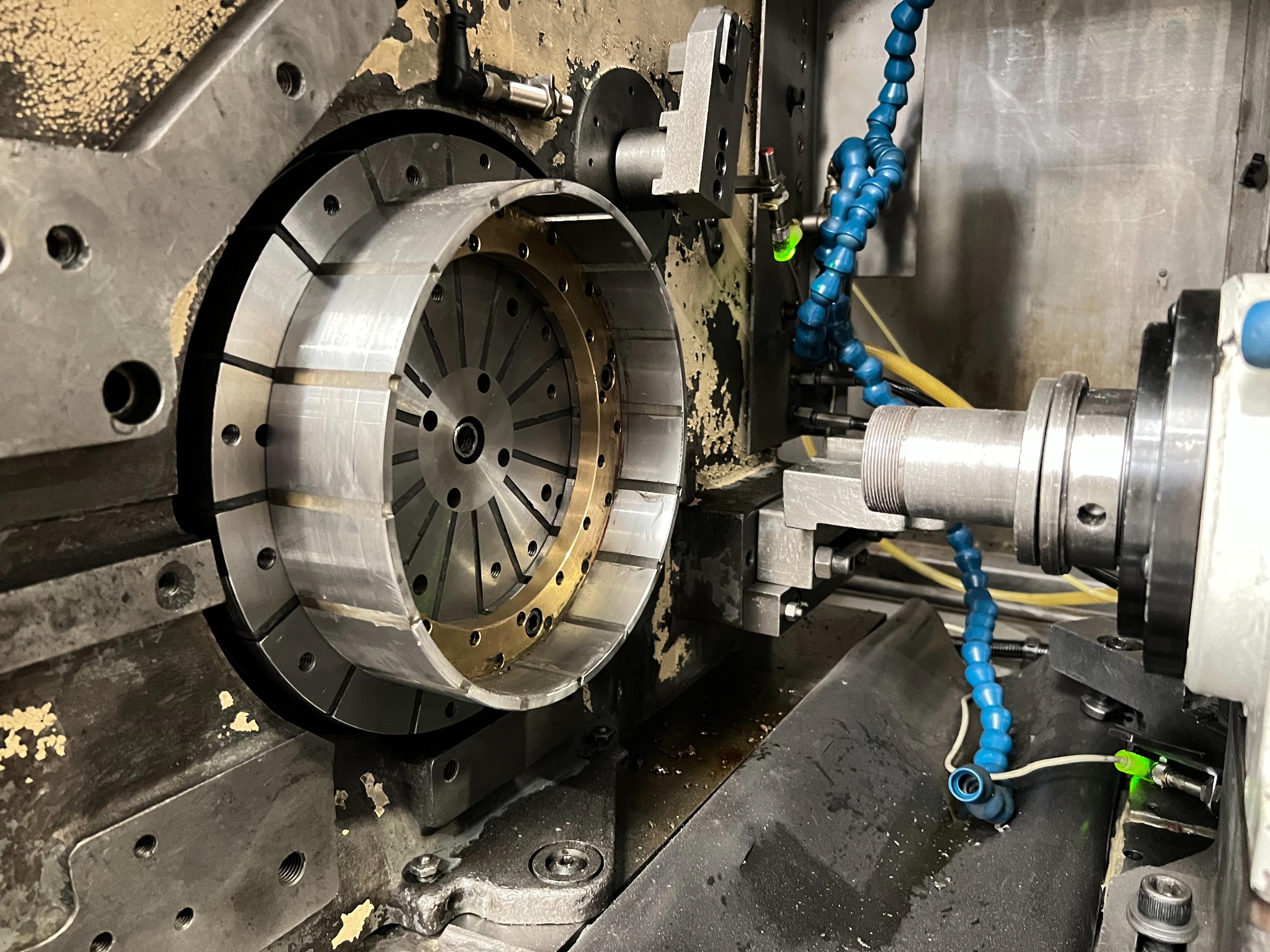

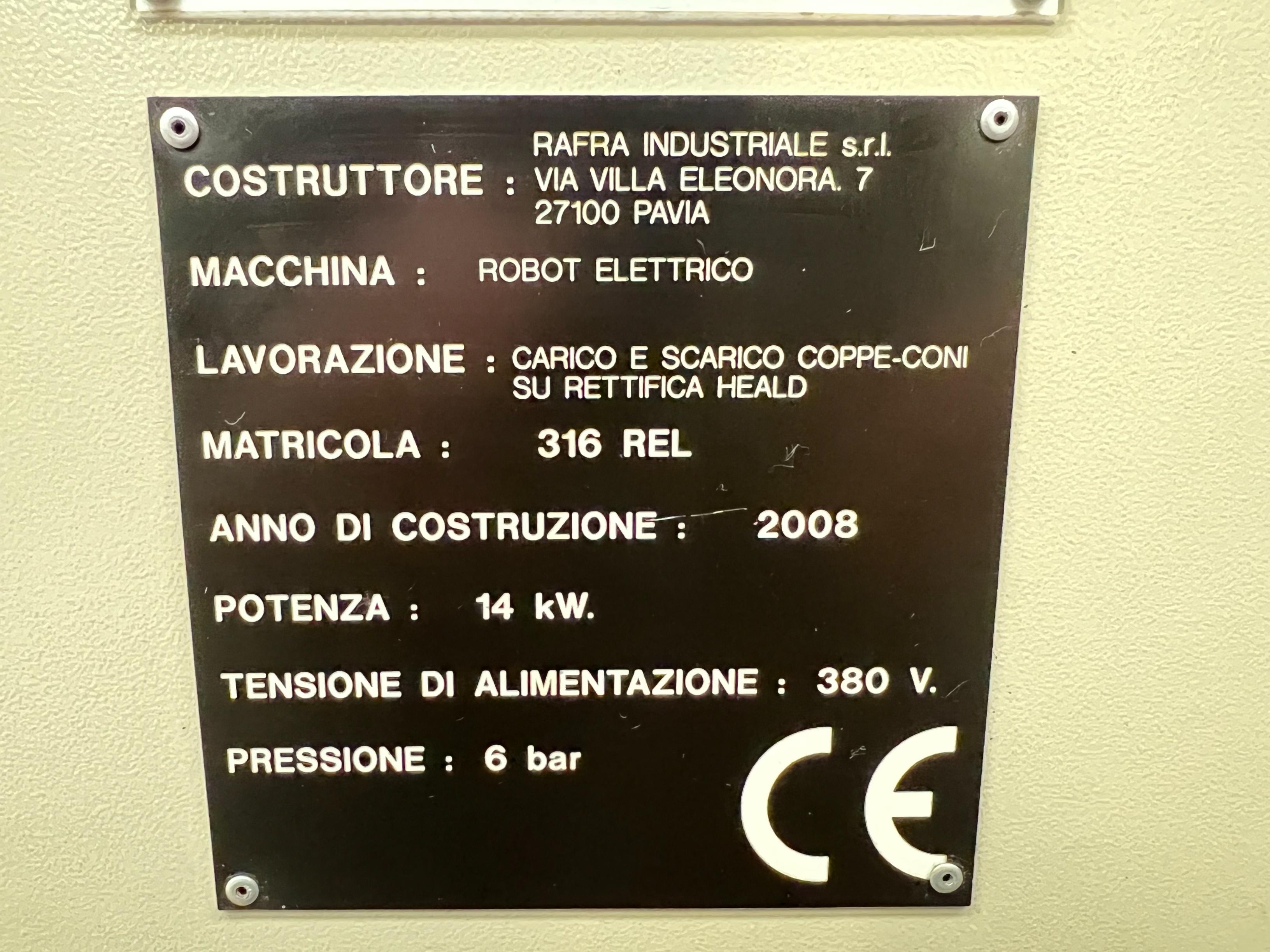

Lot 10 - Heald Model 2CF90 ID Grinder One Piece Flow. S/No. 129/2347/03, Max Outside Diameter of Work 8" Min 4", Siemens Control, Marposs E 5 Measurement Gauge, Automated Loading and Unloading, Rafra Twin Pick and Place Arm. S/No. 316REL (2008) Electrics Retrofit by Tecnosystem in 2003. CE Marked

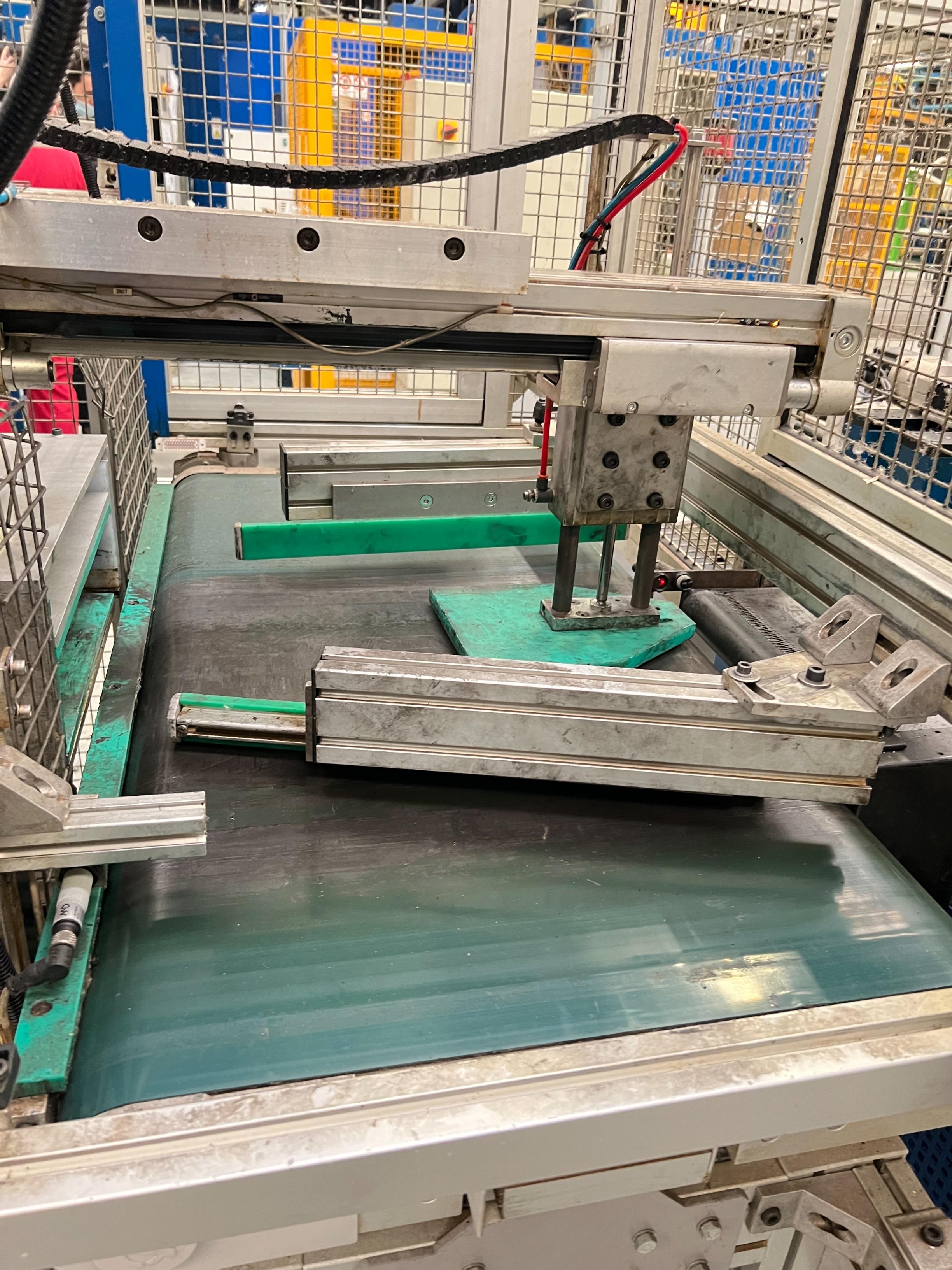

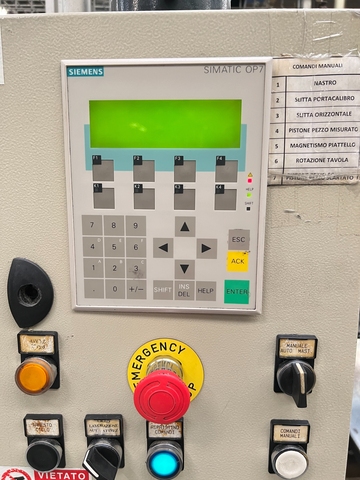

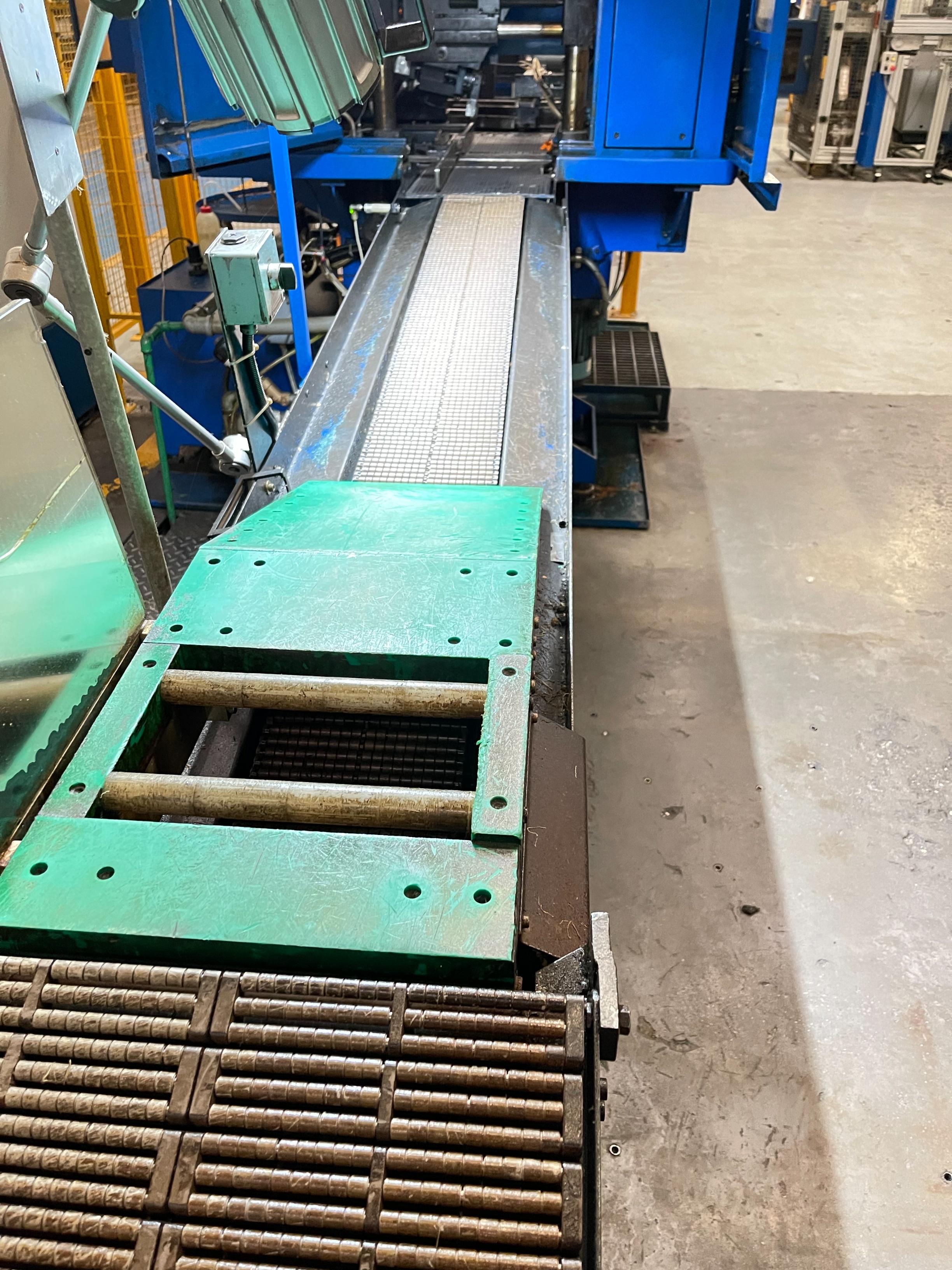

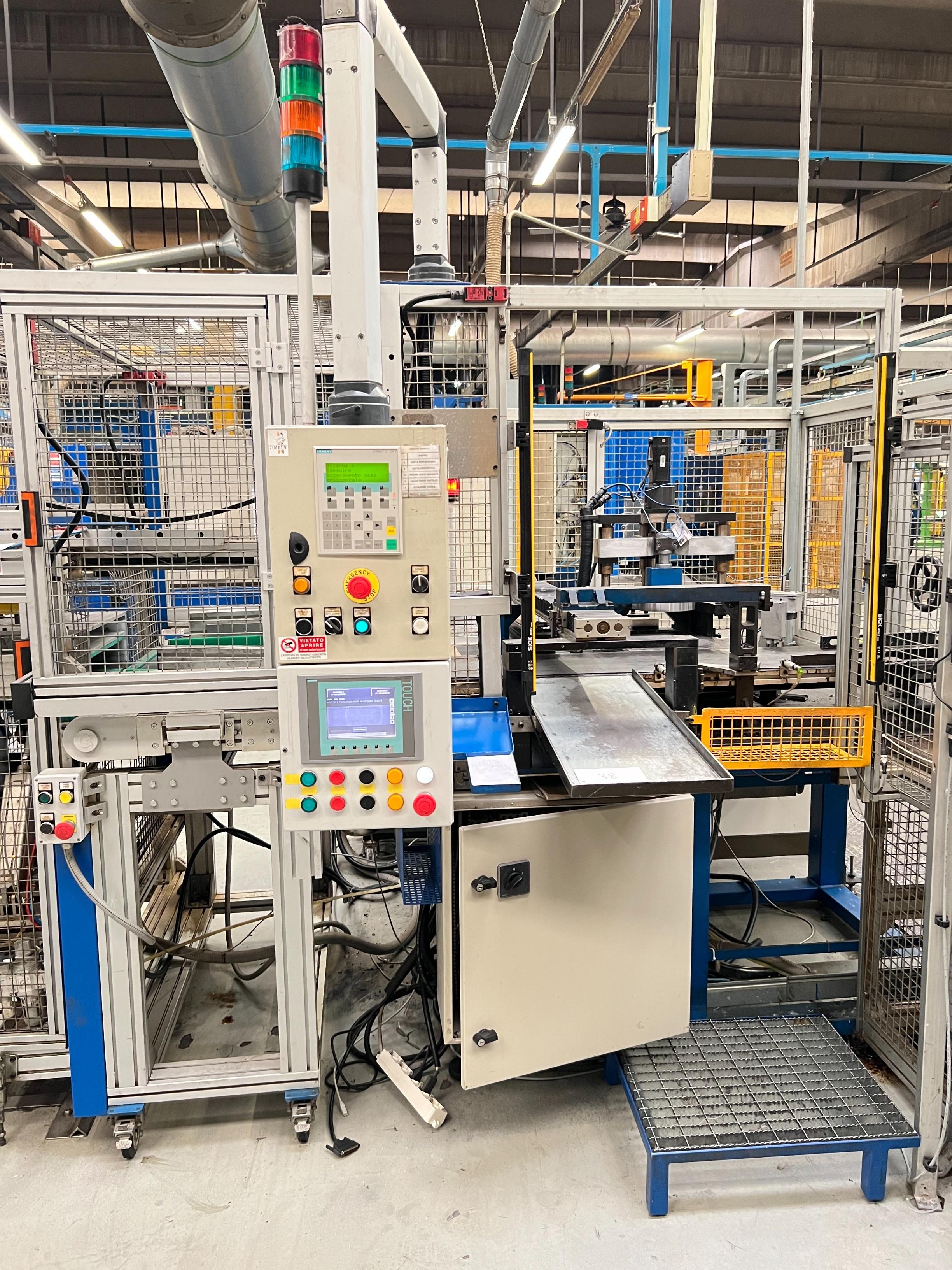

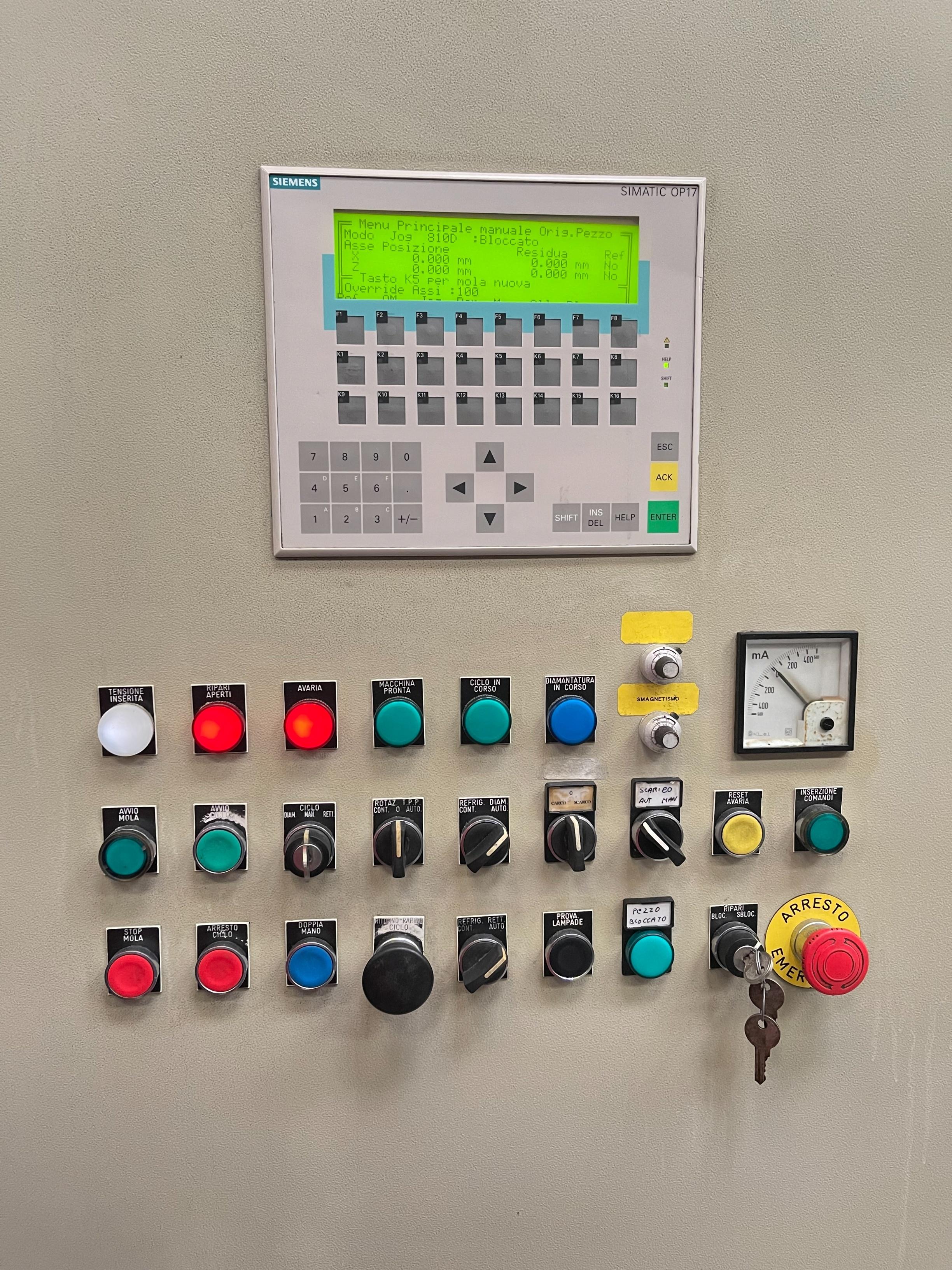

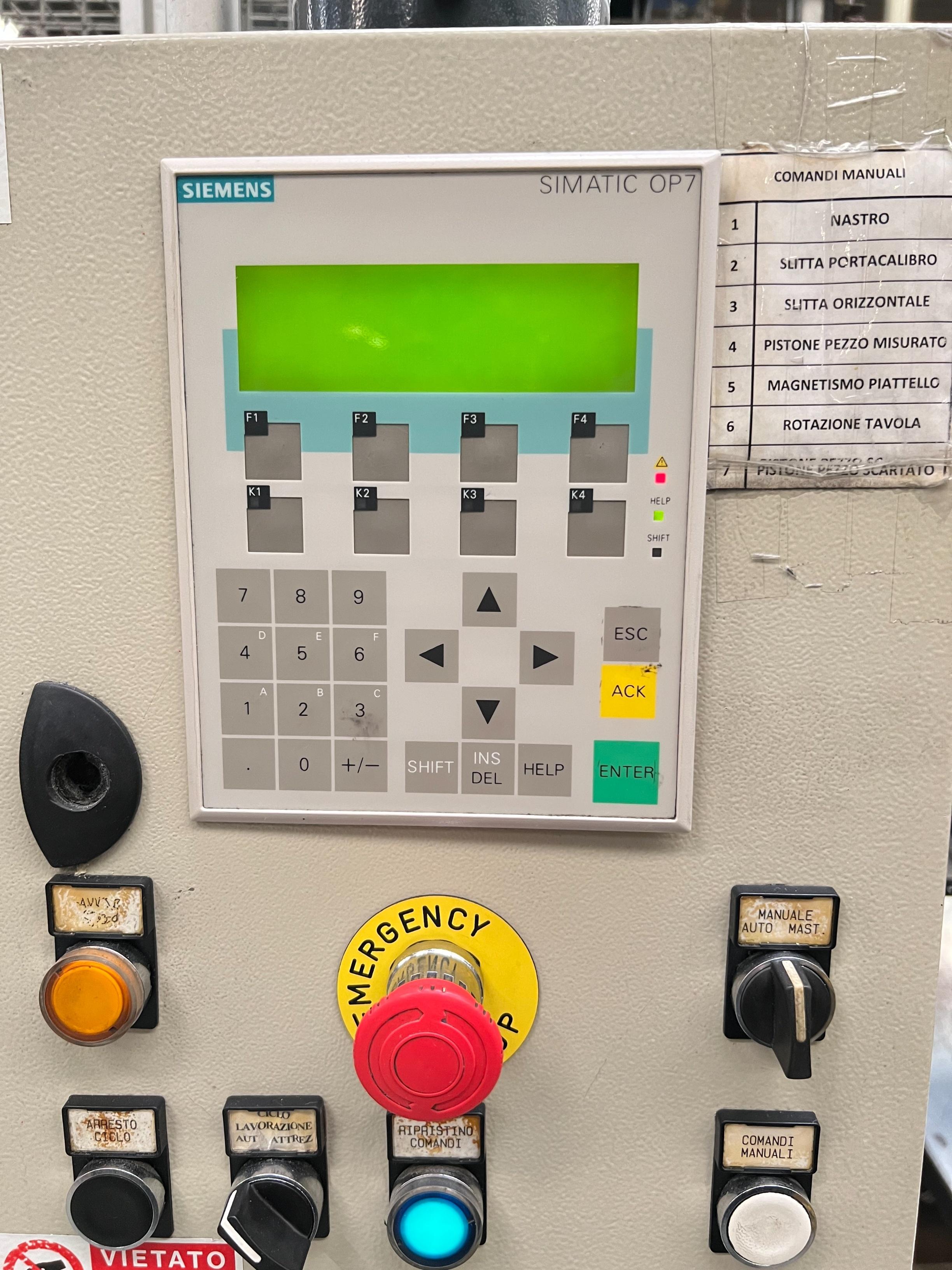

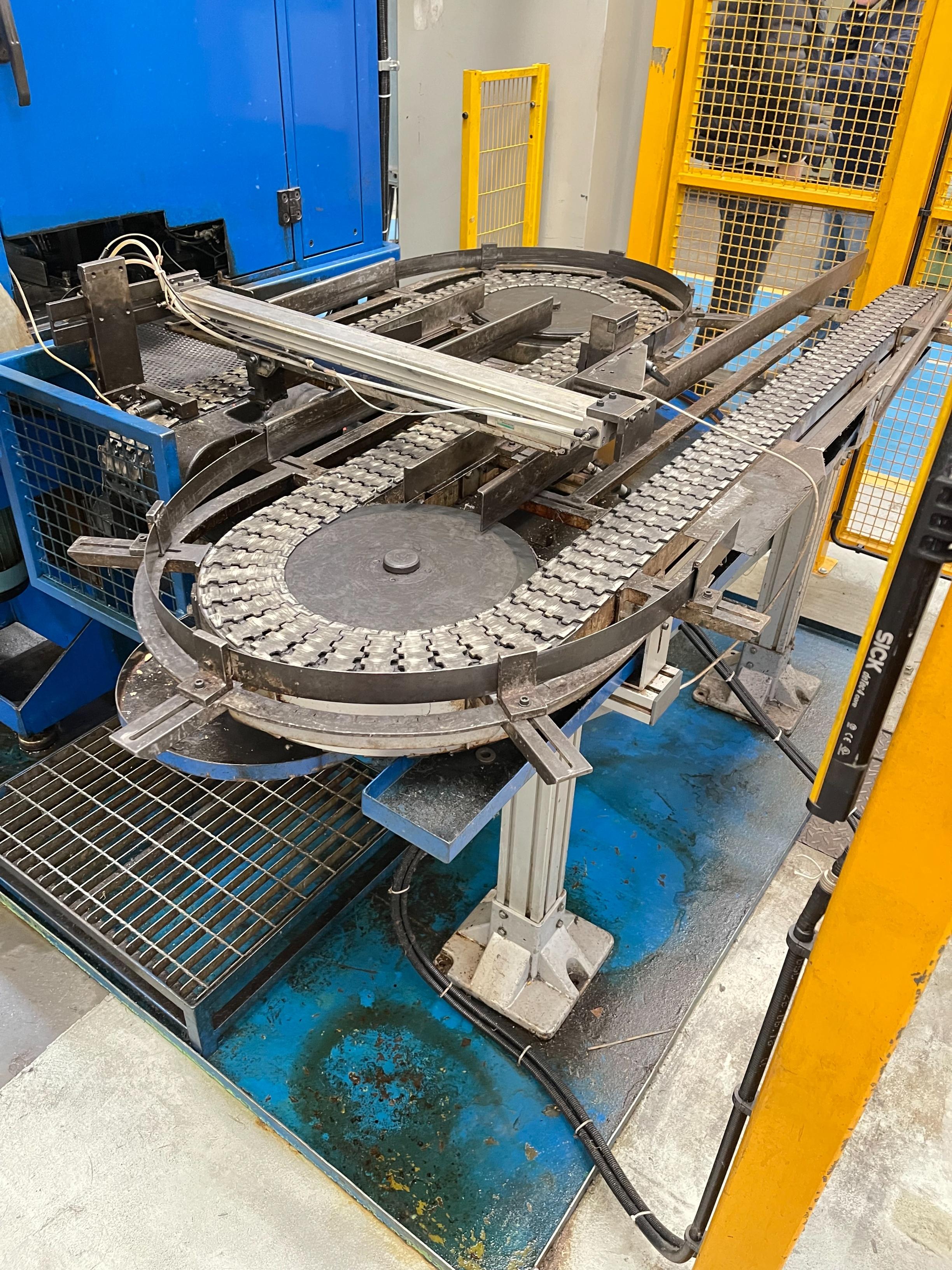

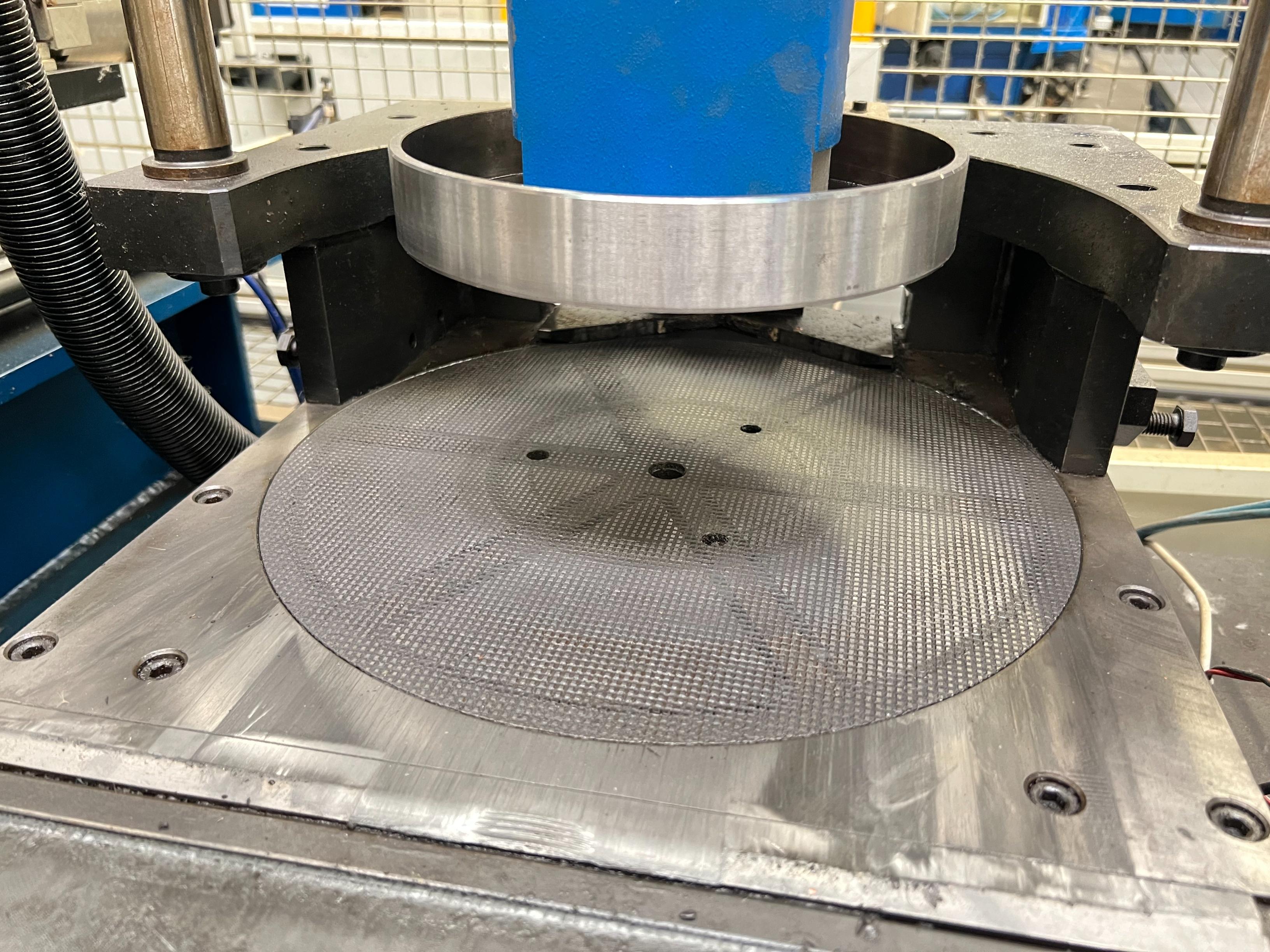

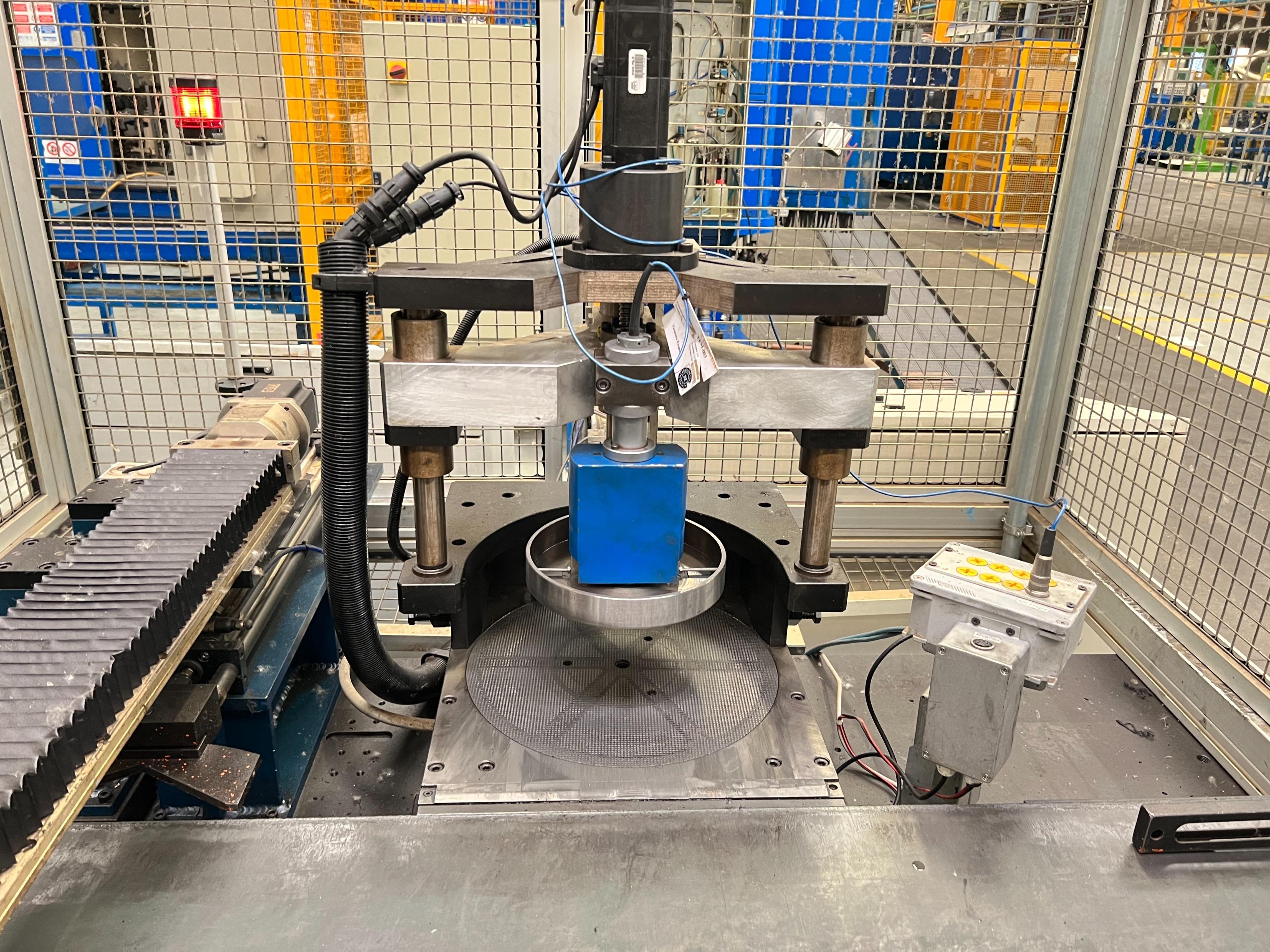

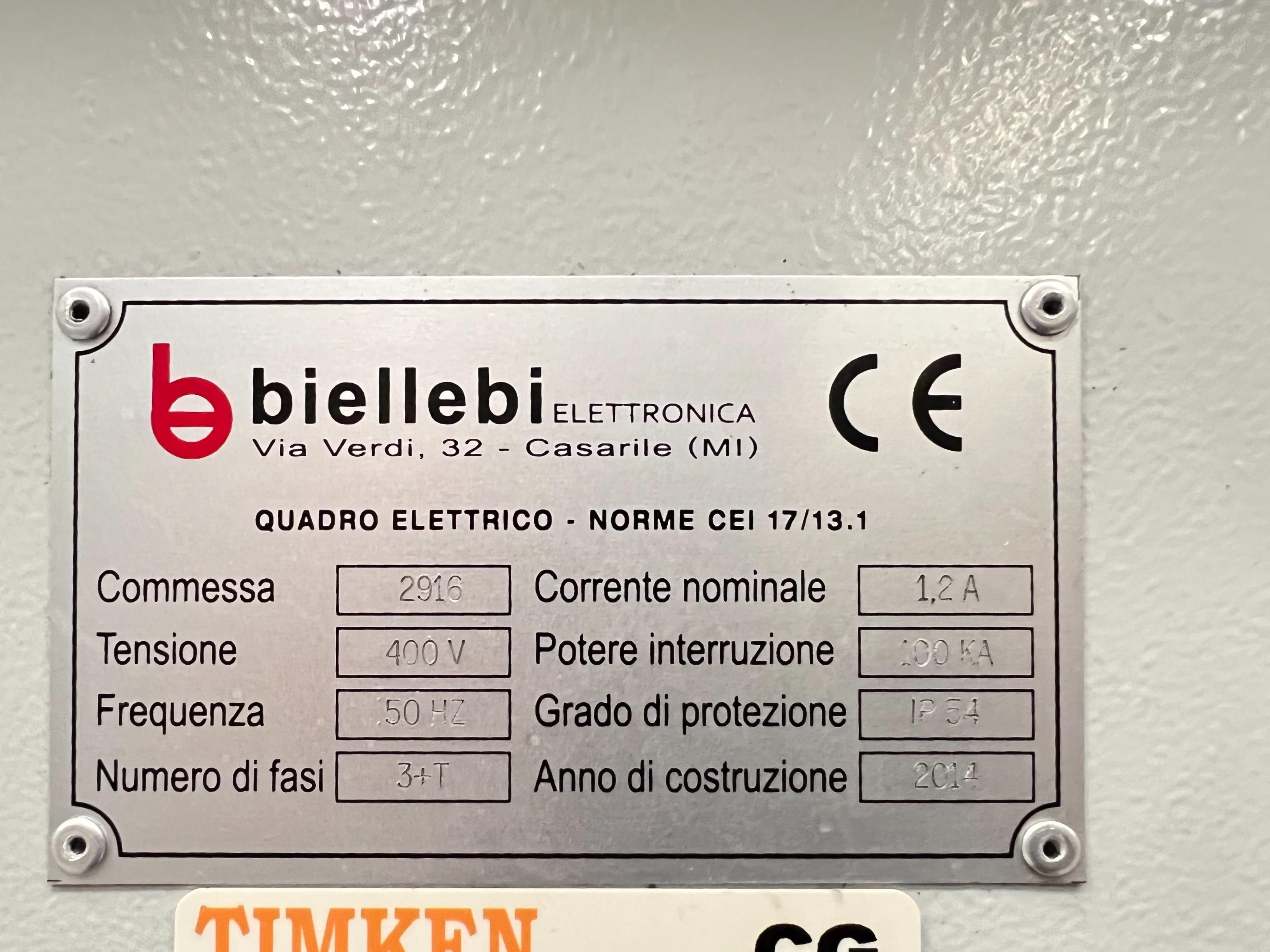

Lot 11 - Bearing Check Ring Station with Magnetic Base, Outfeed and Transfer Conveyor with Siemens Simatic OP7 and Siemens Touchscreen Controls. Electrics Retrofit by biellebi in 2004. No Check Ring Gauge and PC Included

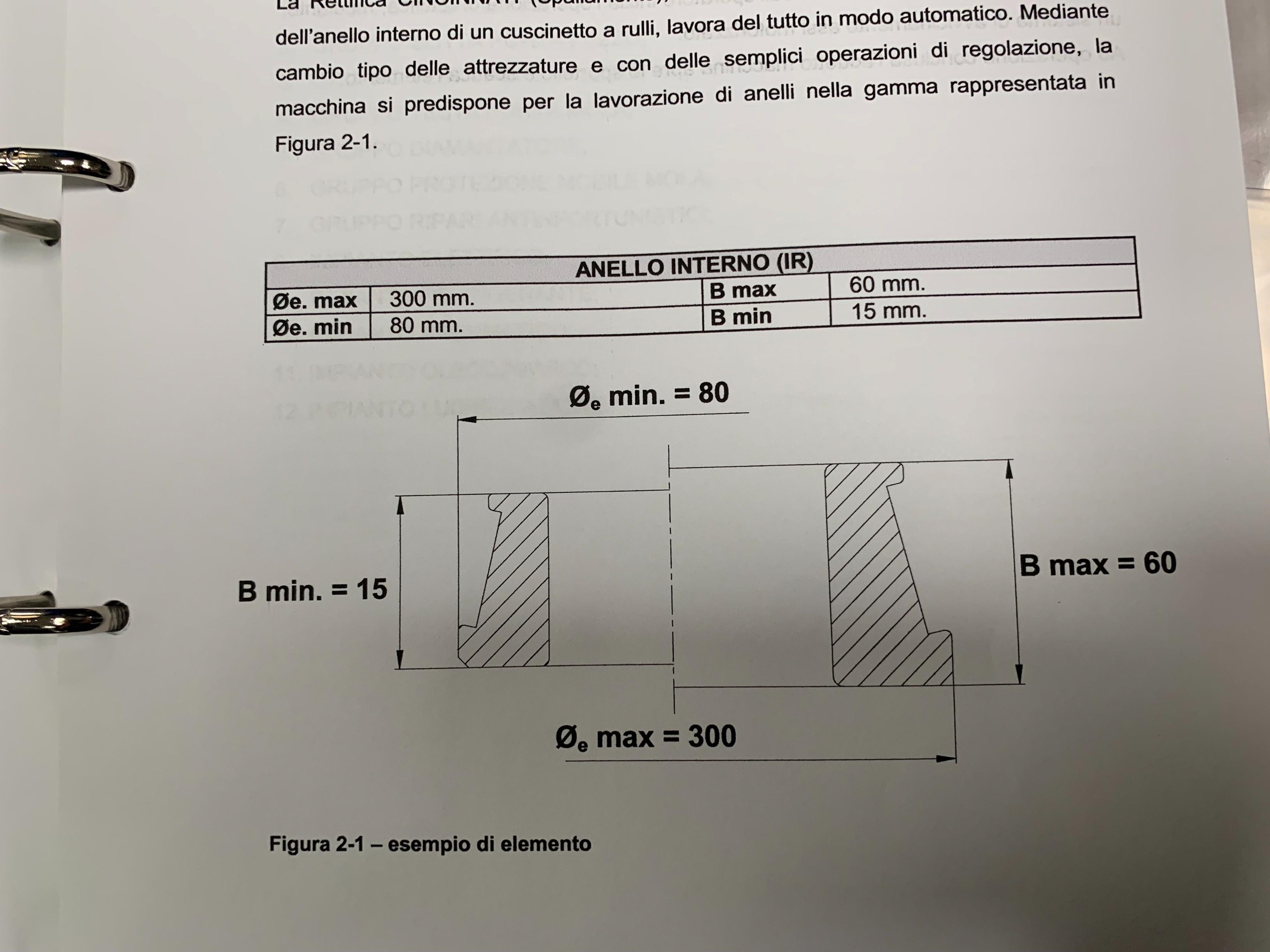

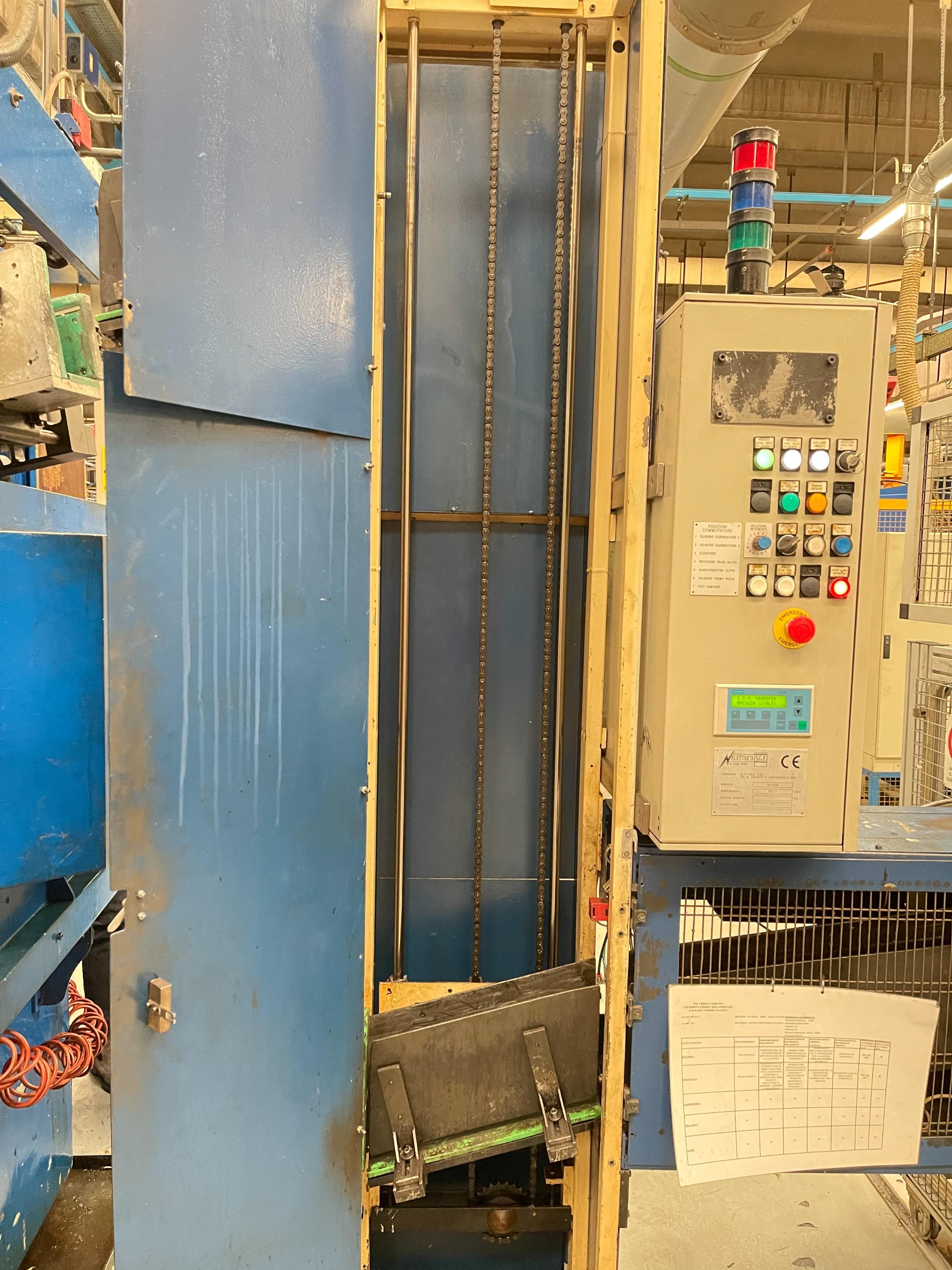

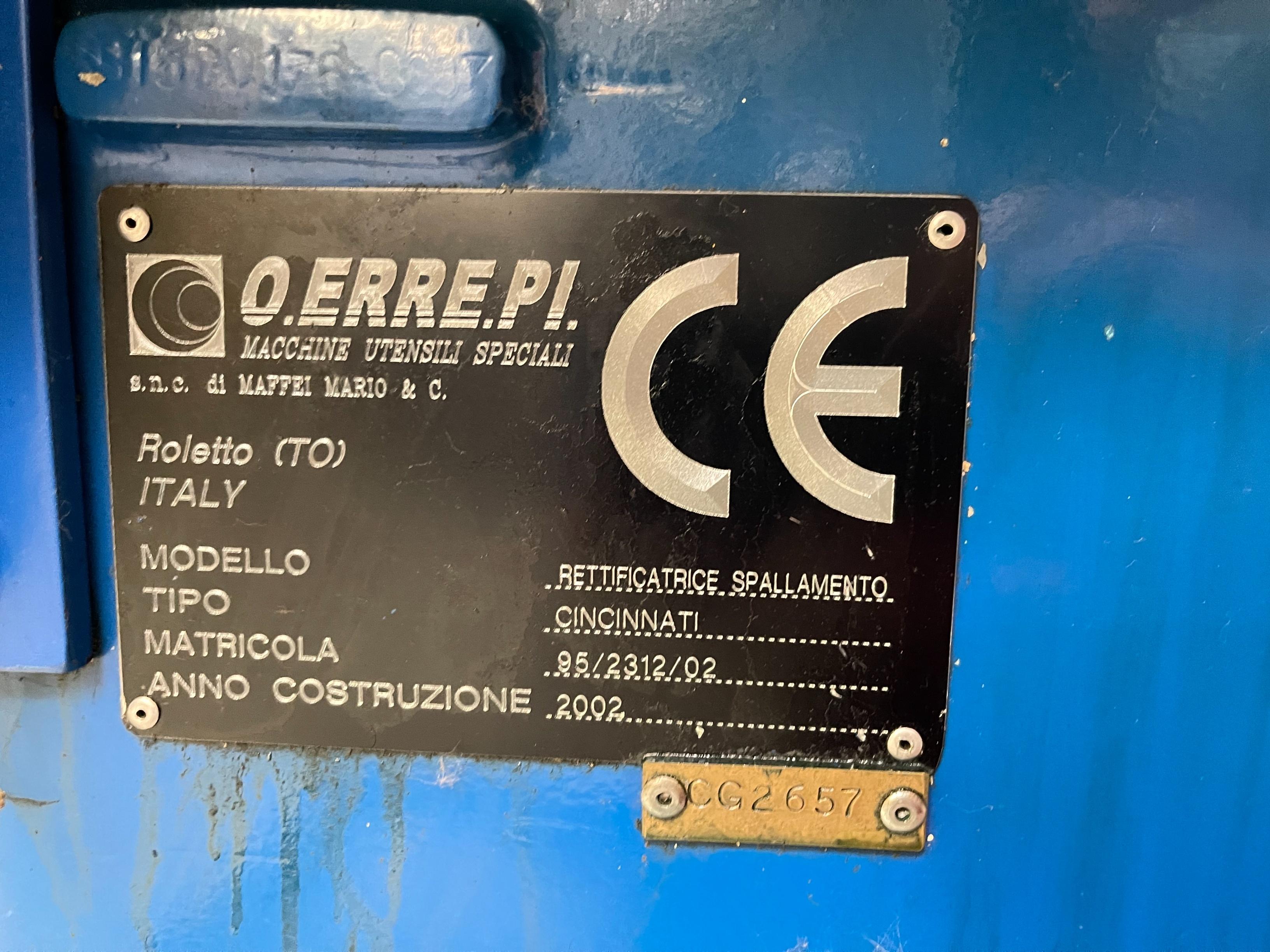

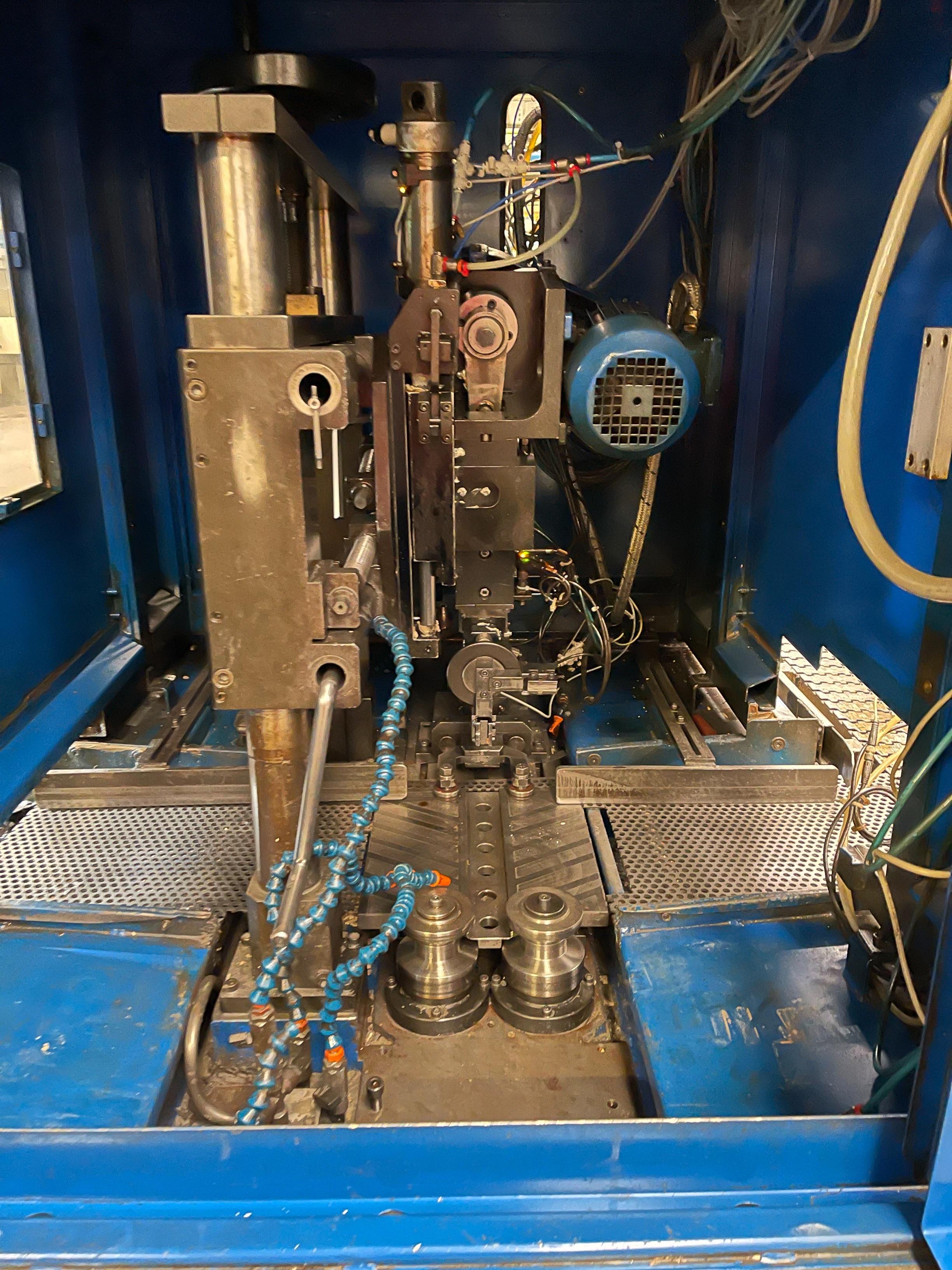

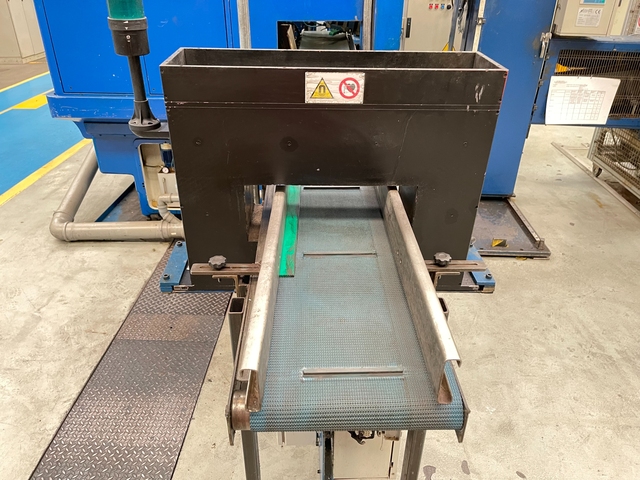

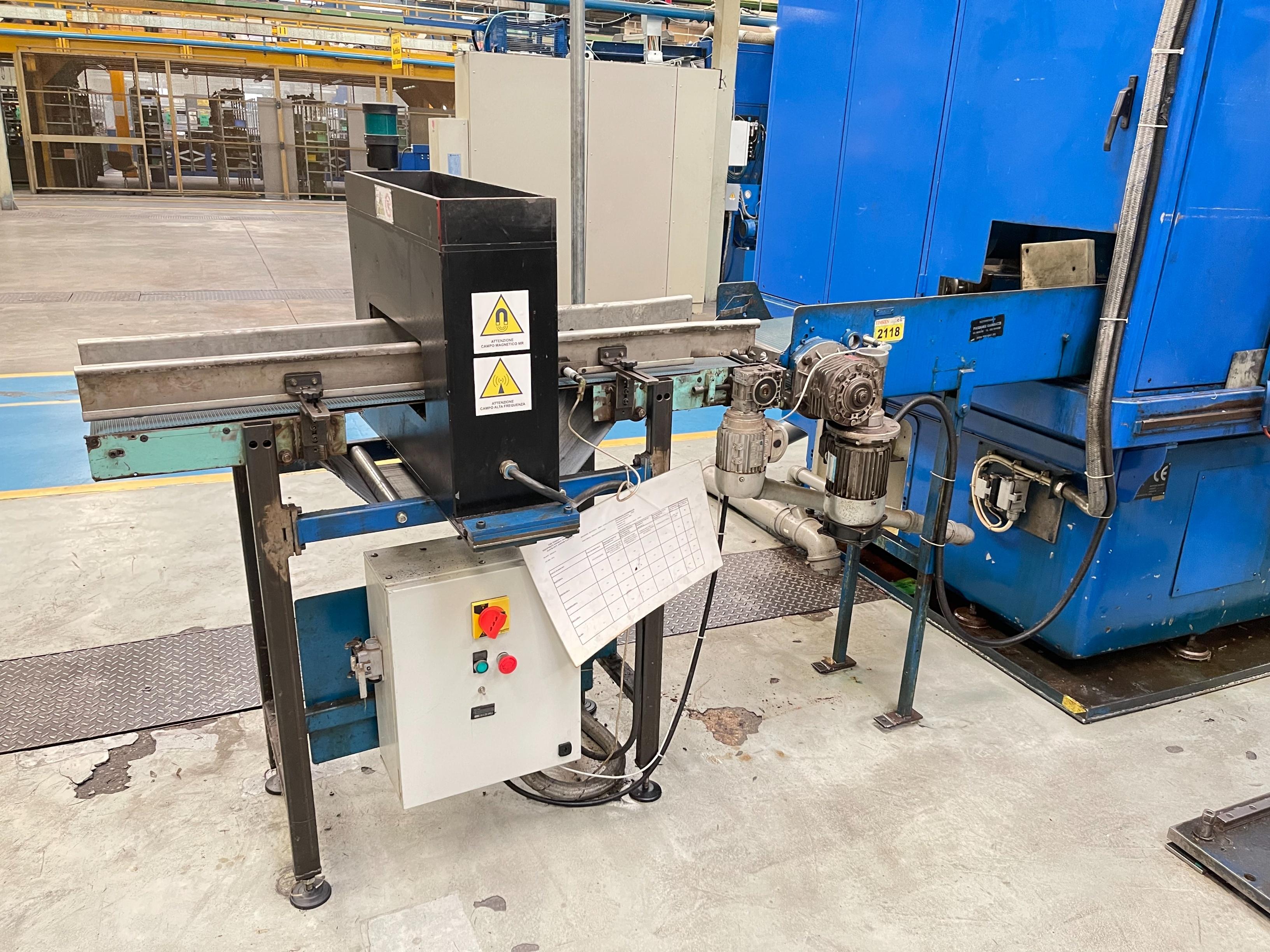

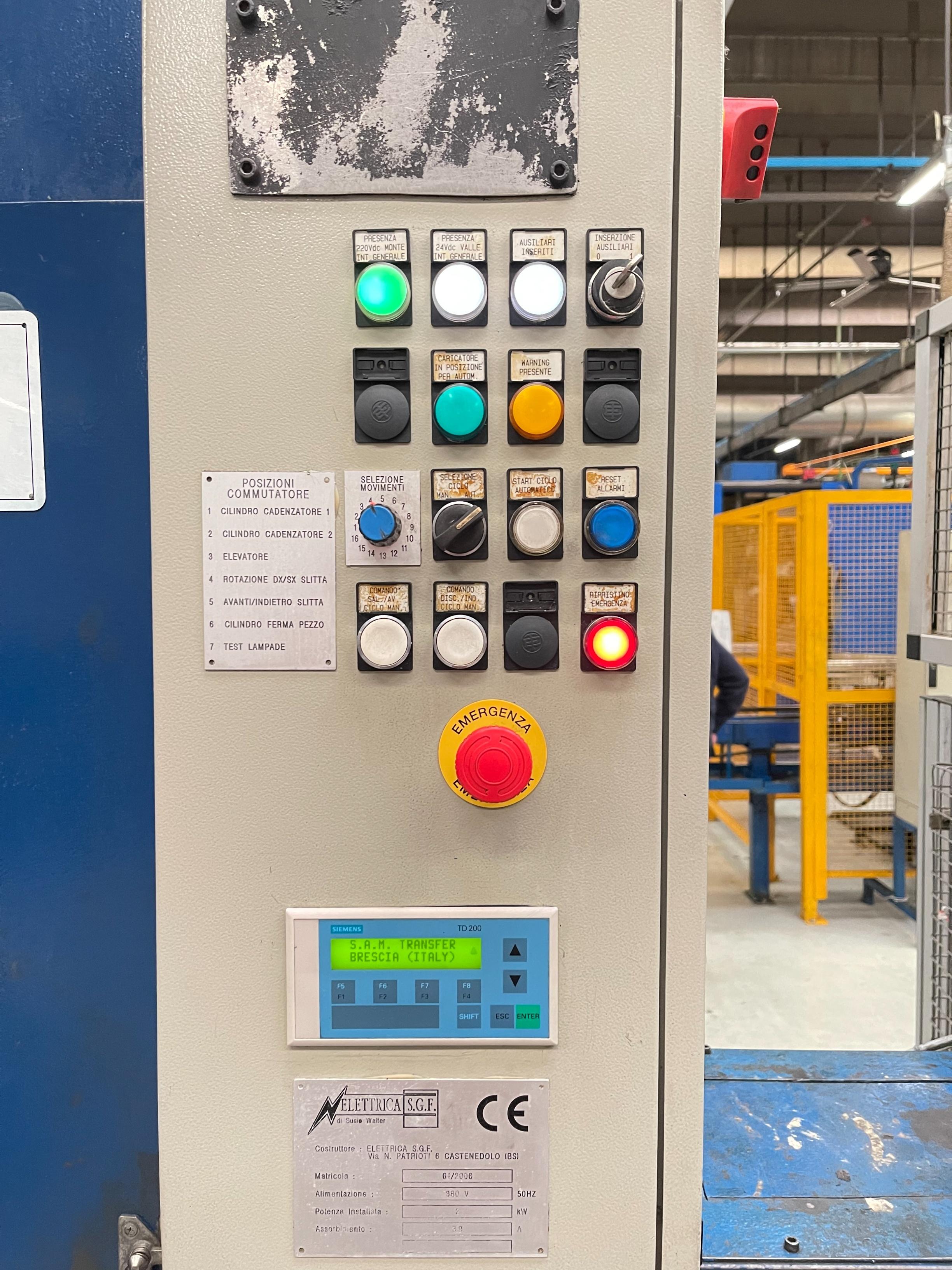

lot 12 - Model R Cincinnati Rib Grinder One Piece Flow S/No. 95/2312/02 Internal Ring Dimensions Ø e Max 300mm Min 80mm, B Max 60mm min 15mm (see attached diagram) Retrofitted 2002 Weight 7500kg, Elevator Infeed, Siemens TD200, Outfeed Conveyor To De-magnetiser Unit, CE Marked

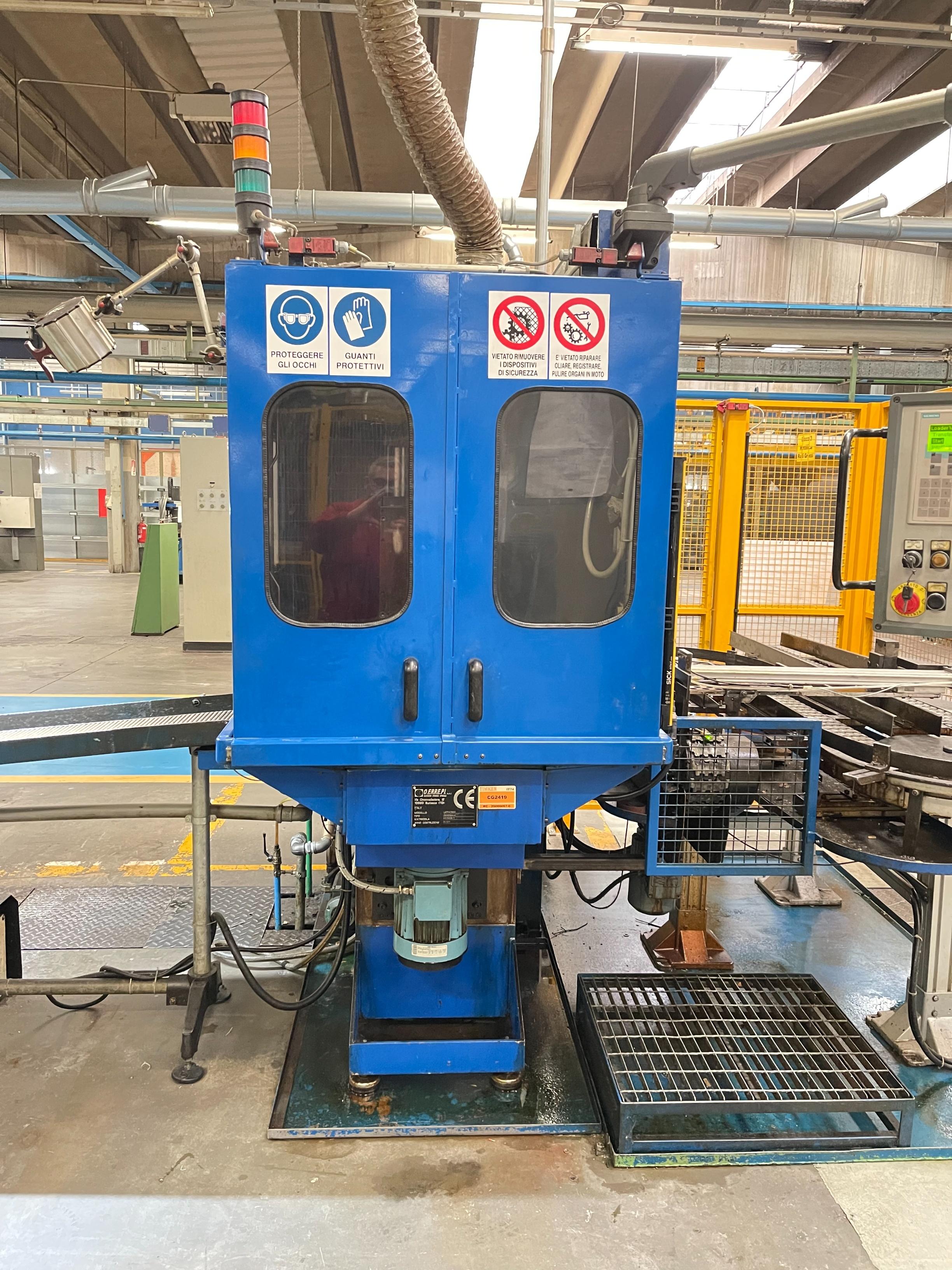

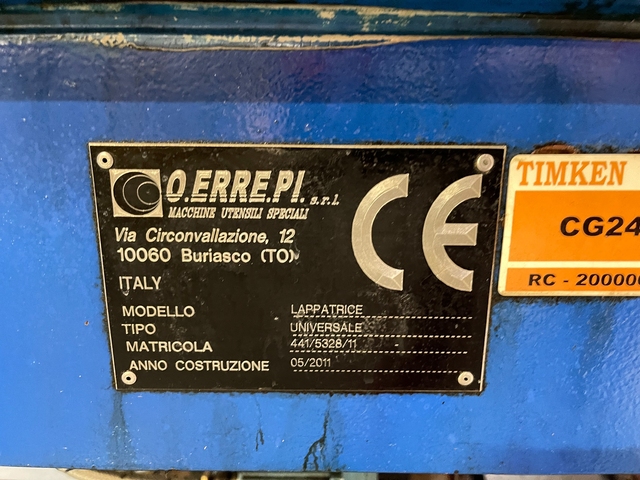

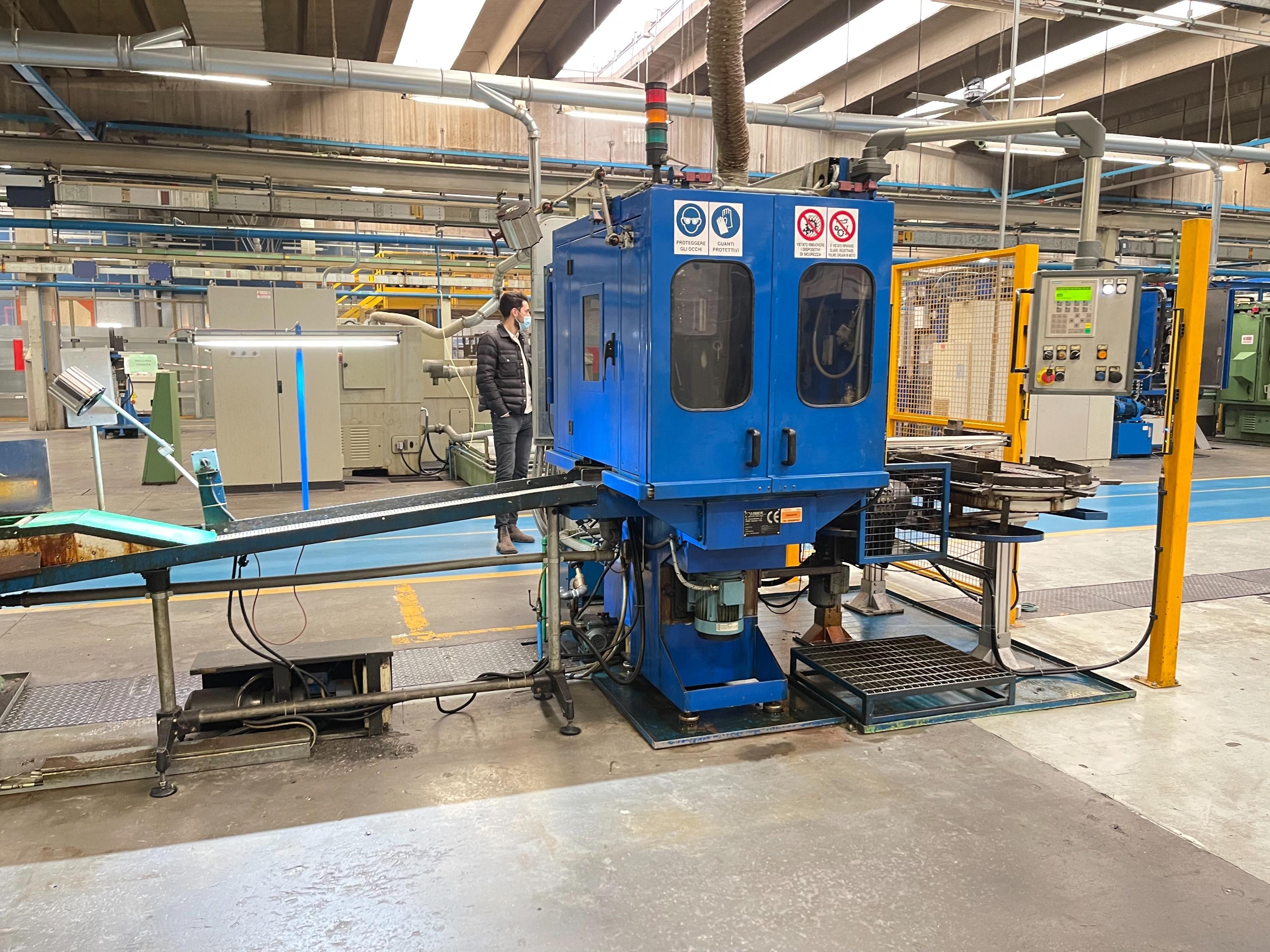

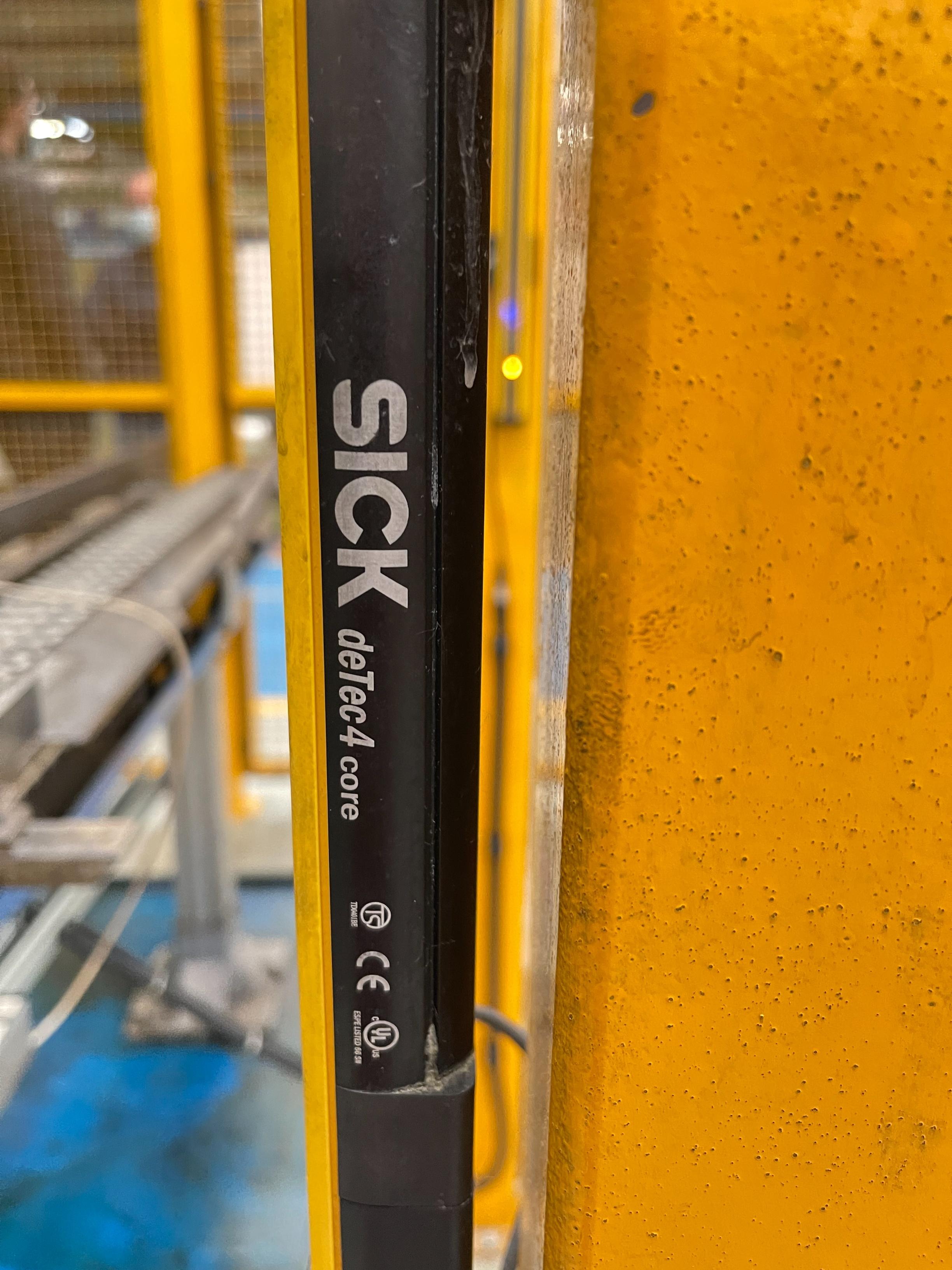

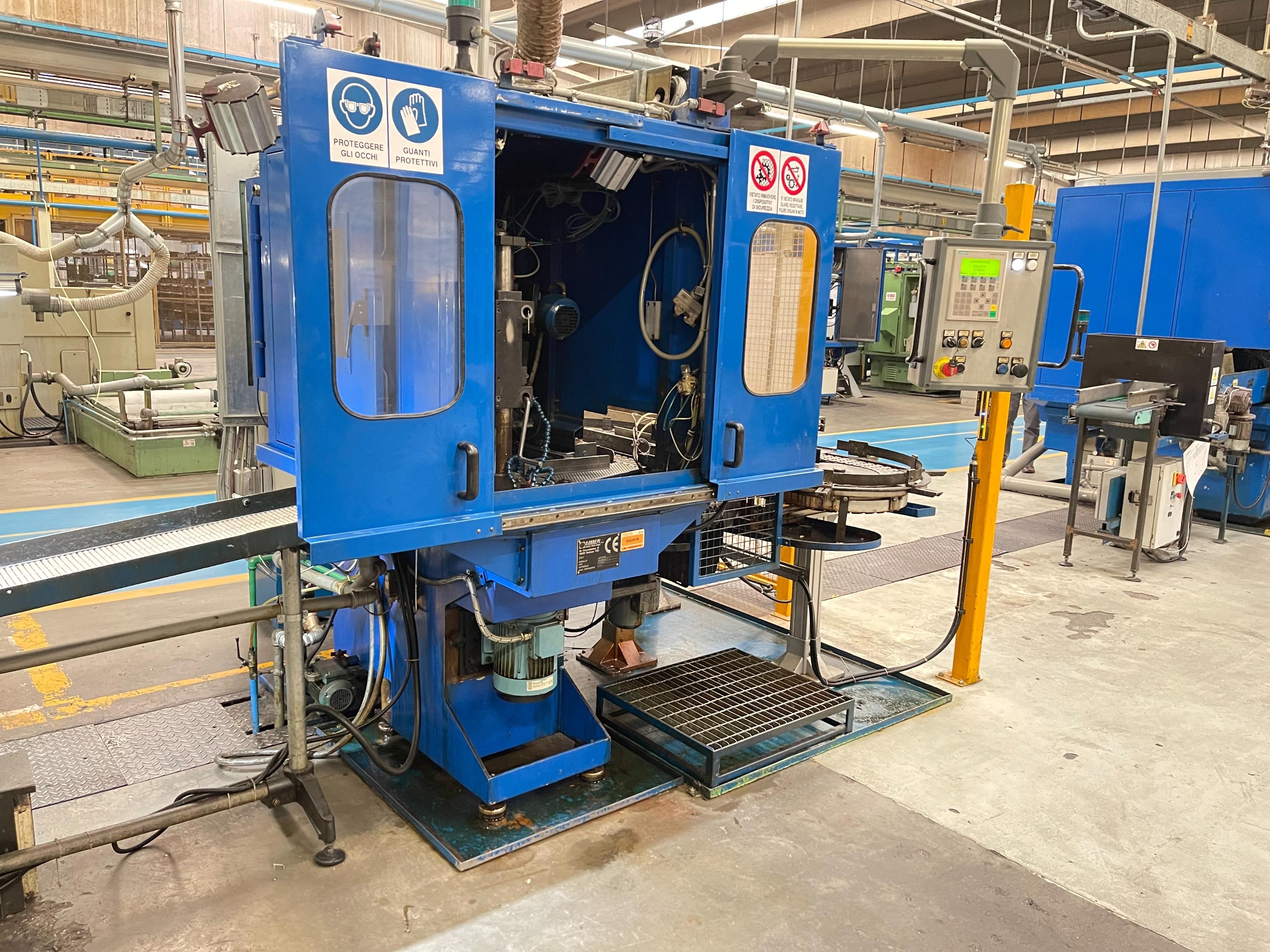

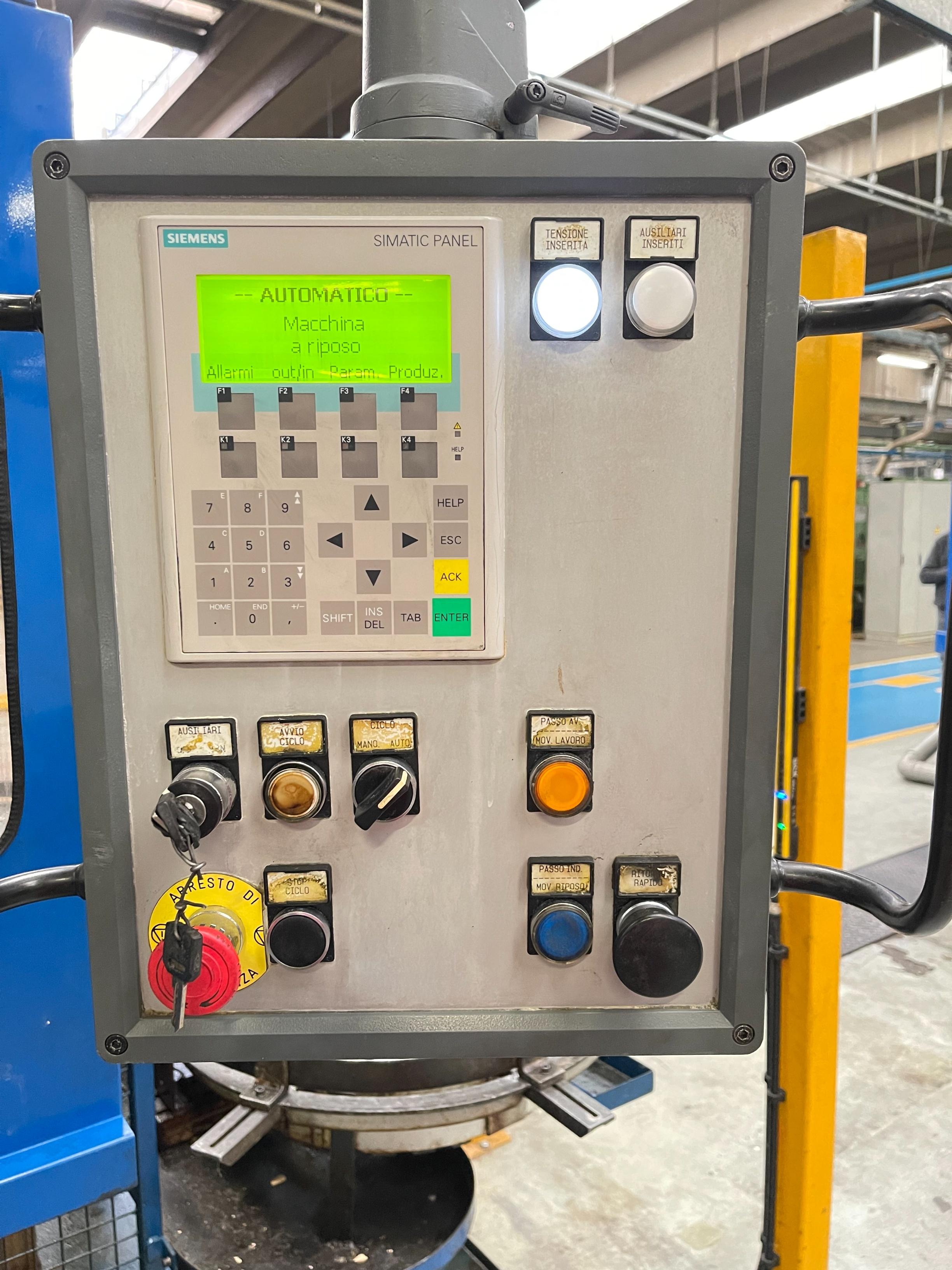

Lot 13 - O.ERREPI Internal / External Rings, Universal Honing Machine. S/No. 441/5328/11, Siemens Simatic Panel Automated Loading and Unloading Sick Light Guarding. CE Marked

Please Note: This lot is located in Italy. Unfortunately, there are no loading facilities available on-site dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
